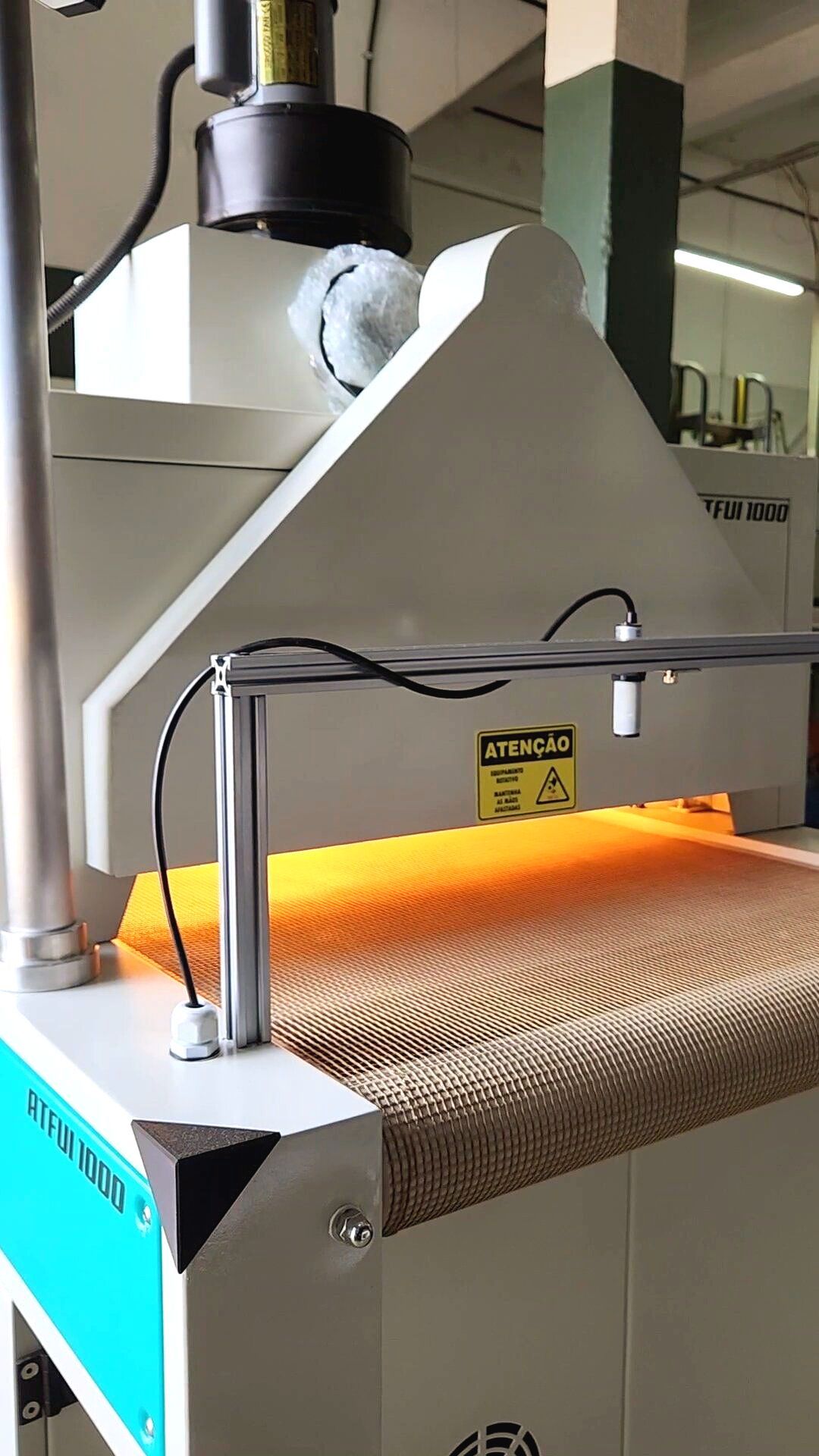

Easy and interactive control system.

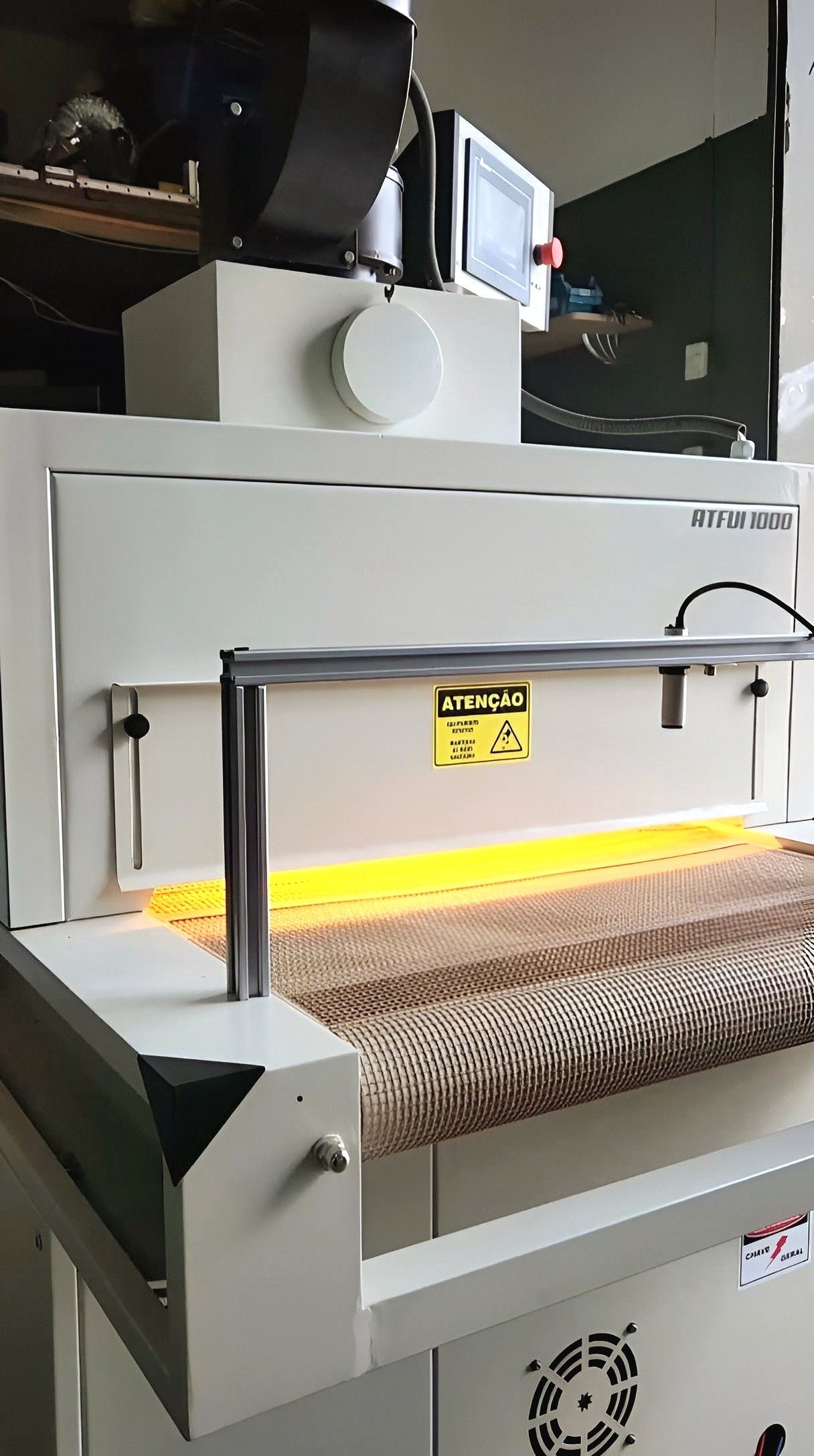

• HMI for parameterization and monitoring of equipment operation;
• Programming of up to 10 models with different settings;
• UV Zone temperature monitoring;
• IR Zone temperature control.

• UV Zone temperature protection system;
• Exhaust system with 4" hoods and ducts;
• 3" casters for movement;
• USB event log and fault log.

1 - Model: AFUV 1000

2 - Control Mode: Configuration/HMI 4" with PLC

3 - Equipment Dimensions: 1100mm (W) X 800mm (D) X 1600mm (H)

4 - Equipment Weight: 150kg

5 - Cabinet: High resistance epox paint

Light emitting module:

6 - Type: UV Light Source - 01 - 2019102513255

7 - Lamp: High pressure metal vapor lamp HPM 15

8 - Power: 2000W

9 - Radiation: Radiation in the Diazio range (320-340NM)

10 - Base: C14X

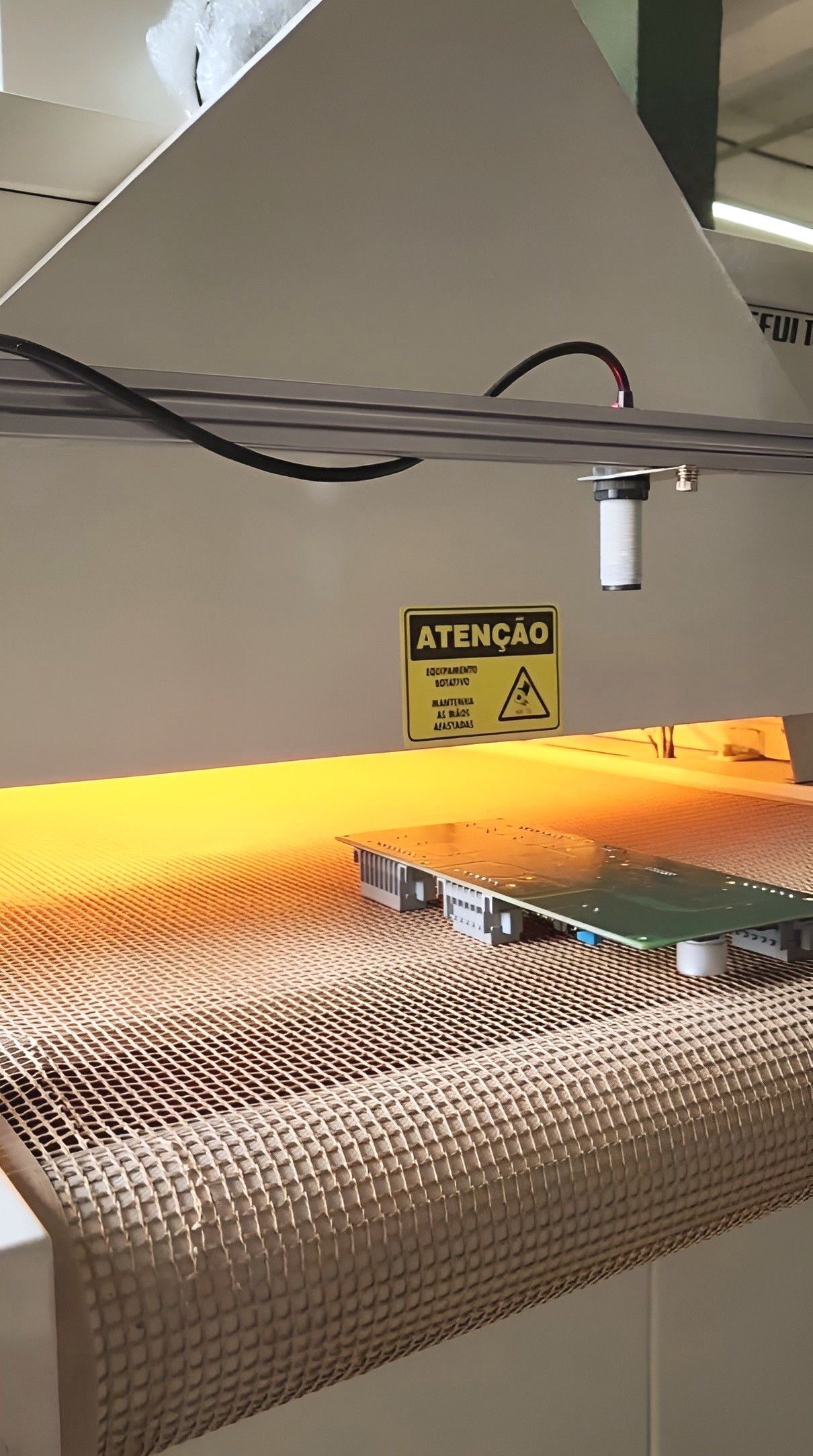

Conveyor:

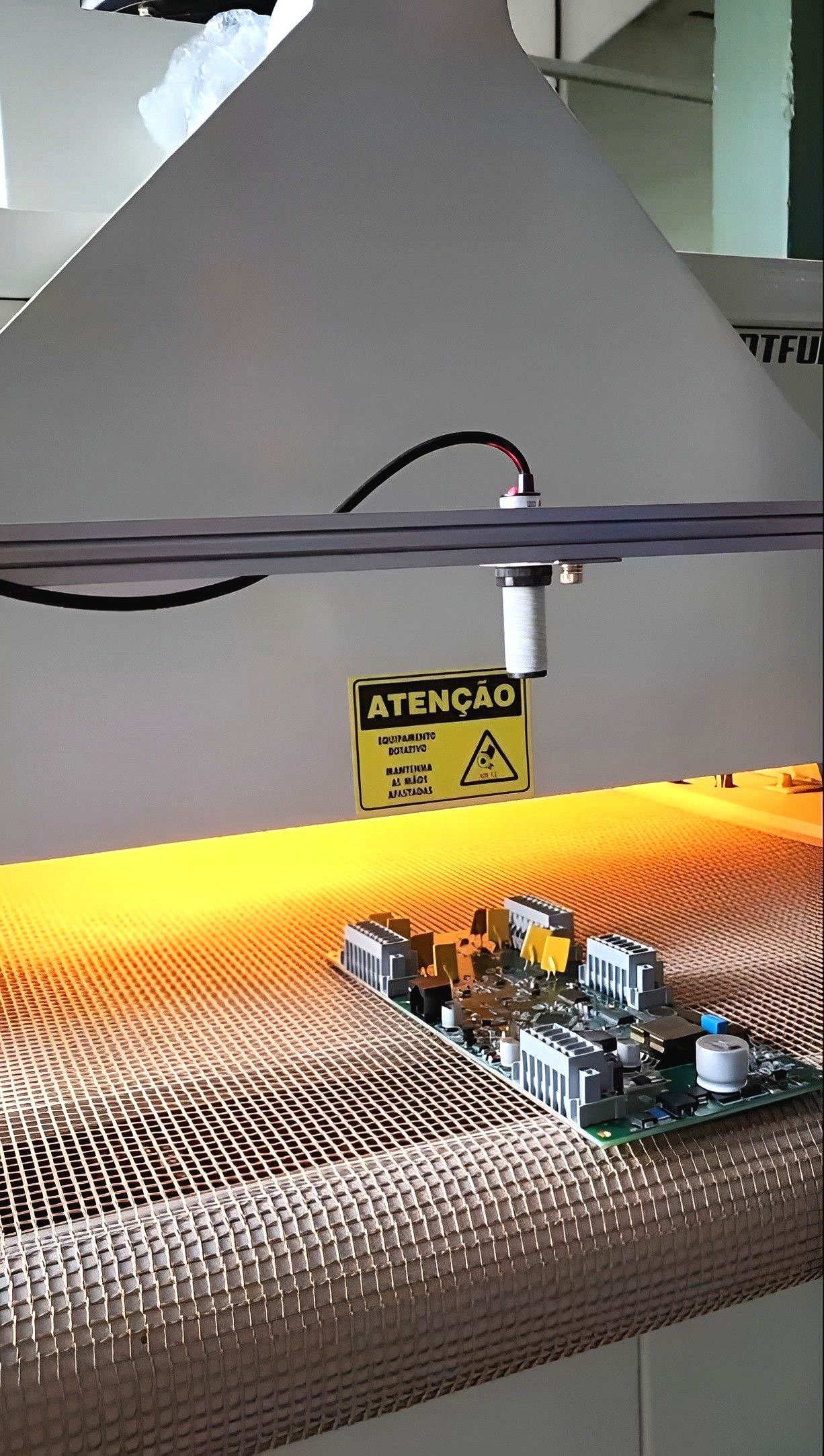

11 - Conveyor: Teflon blanket 4X4 mesh (mesh belt)

12 - Dimensions: 1000X350mm

13 - Motor: 1/4hp gear motor, reduction 1:50

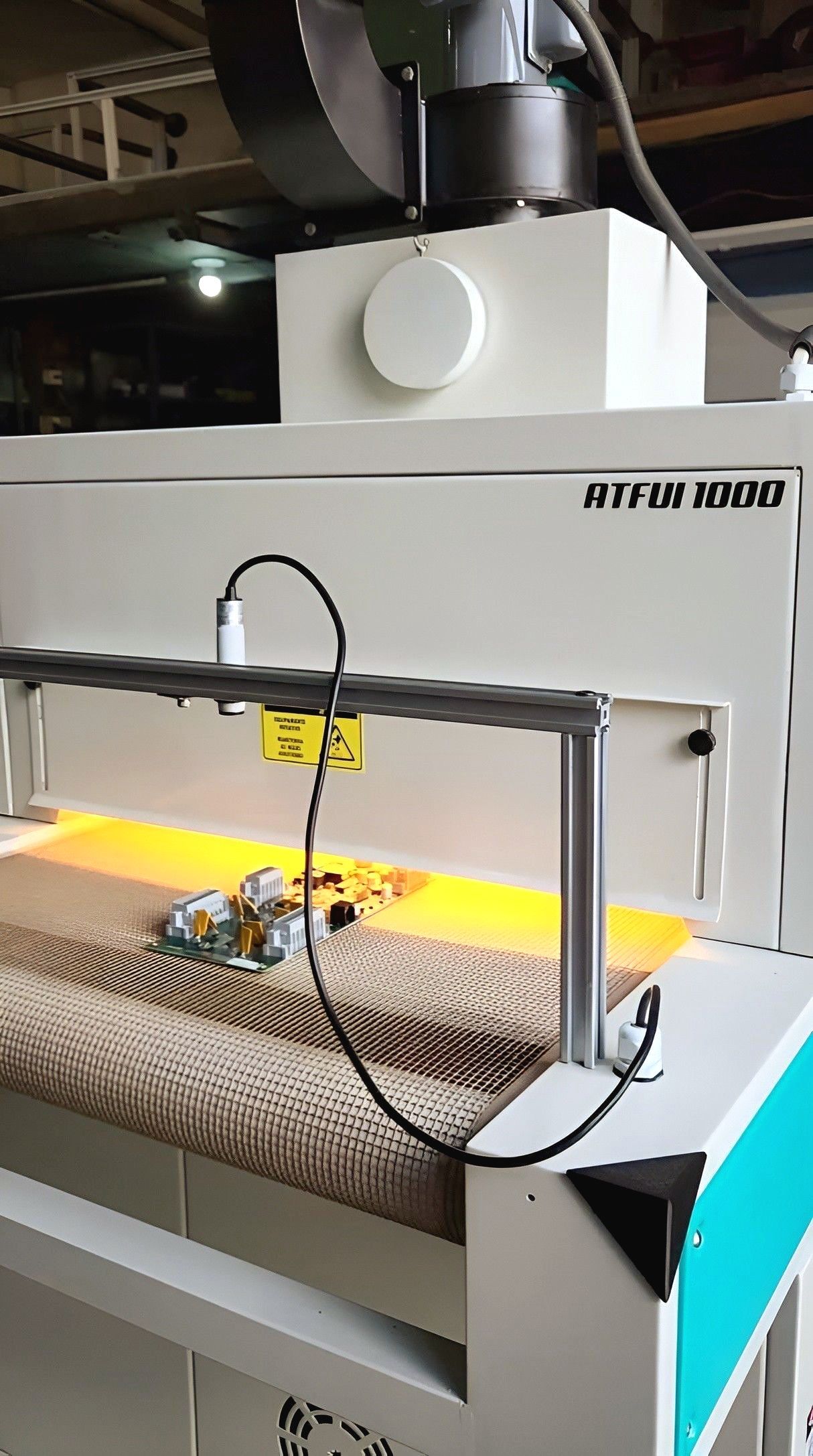

Exhaust:

14 - Type: Centrifugal exhaust fan 550W/ 220vac

15 - Outlet: 4" exhaust duct

Items/Accessories

16 - Conveyor speed control on HMI

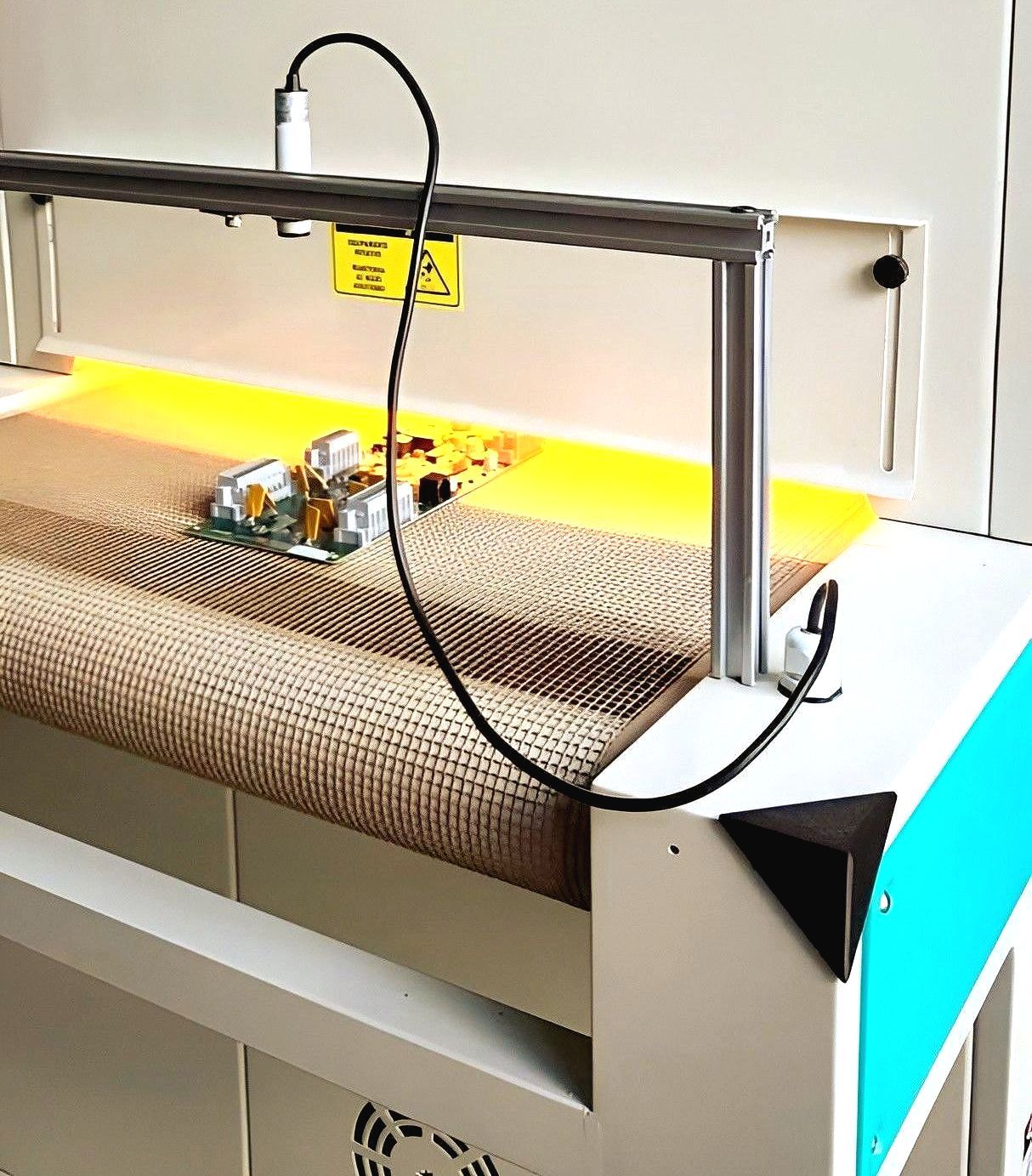

17 - Board input and output sensor

18 - UV temperature monitoring

19 - Registration of up to 10 setup models 20 - UV lamp temperature protection system 21 - Event and fault log 22 - Emergency button Machine Base/Feet 23 - 3" casters 24 - Adjustable leveling feet Electrical - Power Supply 25 - Voltage: 220V - 60Hz 26 - Current: 50A

A) Equipment:

Full manufacturer's warranty for a period of 12 (twelve) months after the date of shipment.

Shipping and returning parts under warranty to the manufacturer are the customer's responsibility.

Defects caused by improper use are excluded from the warranty.

Full parts supply warranty for 10 (ten) years.

B) Labor:

12 (twelve) months after the date of shipment.

Defects caused by improper use are excluded from the warranty.

For equipment installed outside the city of Manaus, travel and accommodation expenses for ATRON's technical personnel, incurred during equipment installation, training sessions, and technical assistance calls, will be the customer's responsibility.

Service Limitations:

Technical assistance within the service warranty period will be free of charge during business hours — MON to FRI, from 8:00 a.m. to 5:00 p.m.

Service requested outside of business hours will be charged per actual working hour, regardless of the call condition.

Coverage:

All parts and components subject to natural wear and tear, or caused by failure or lack of preventive maintenance and conservation, or by operational errors, or by intervention from unauthorized or unqualified third parties, are considered "out of warranty".

The group of wear-and-tear parts includes all movement, friction, and constantly driven units under the direct influence of external supply sources, such as compressed air, vacuum, and water. The most common include: chains, guides, pulleys, sprockets, belts, bearings, bushings, air filters, general filters, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts proven to be subject to movement and wear.

For services involving this group, technical hours employed in repair or replacement will be charged separately according to the standard technical hour rate in effect at the time.

Installation:

Installation will be carried out by an ATRON technician at no additional cost to the customer. However, for equipment installed outside the city of Manaus, travel, food, and accommodation expenses will be the customer’s responsibility.
