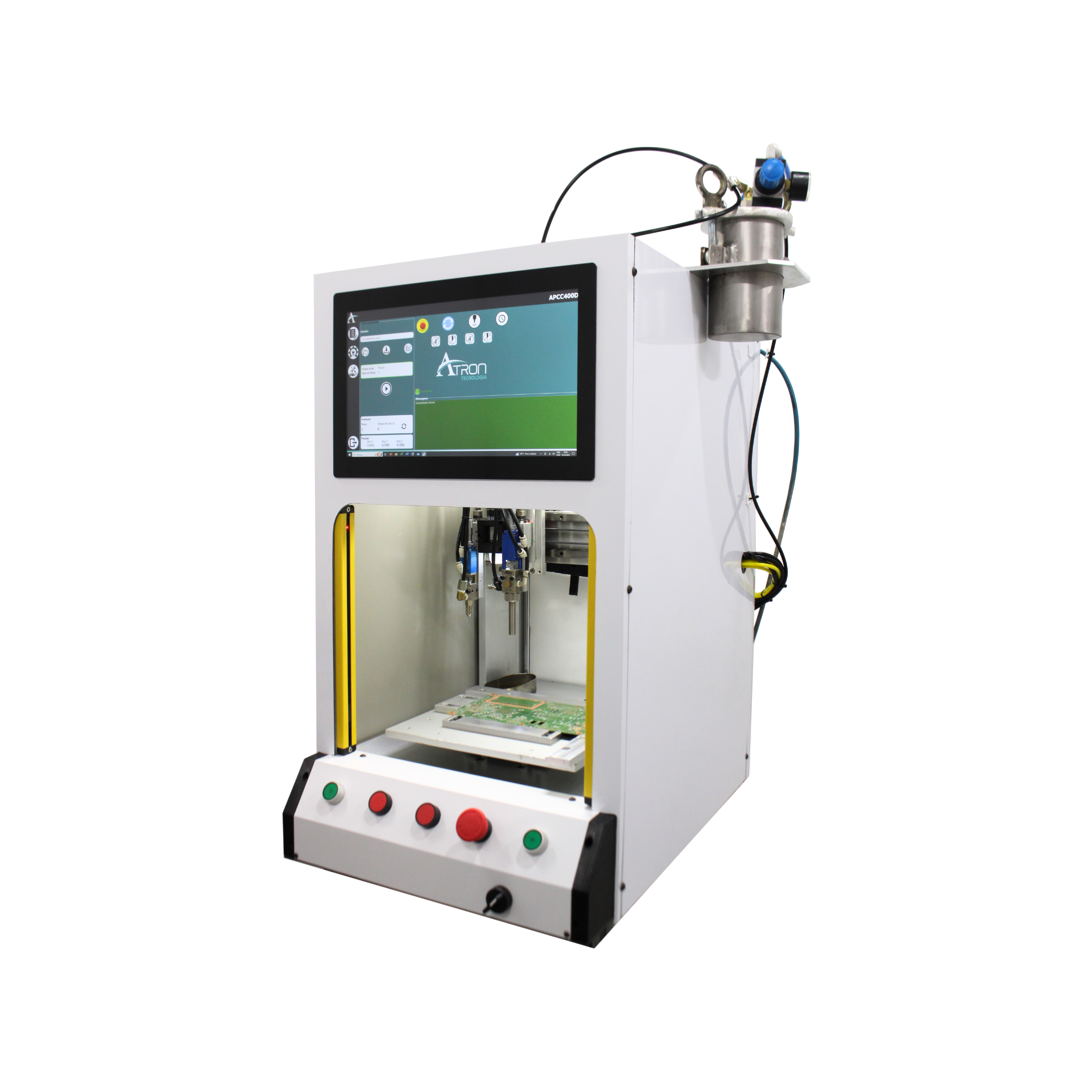

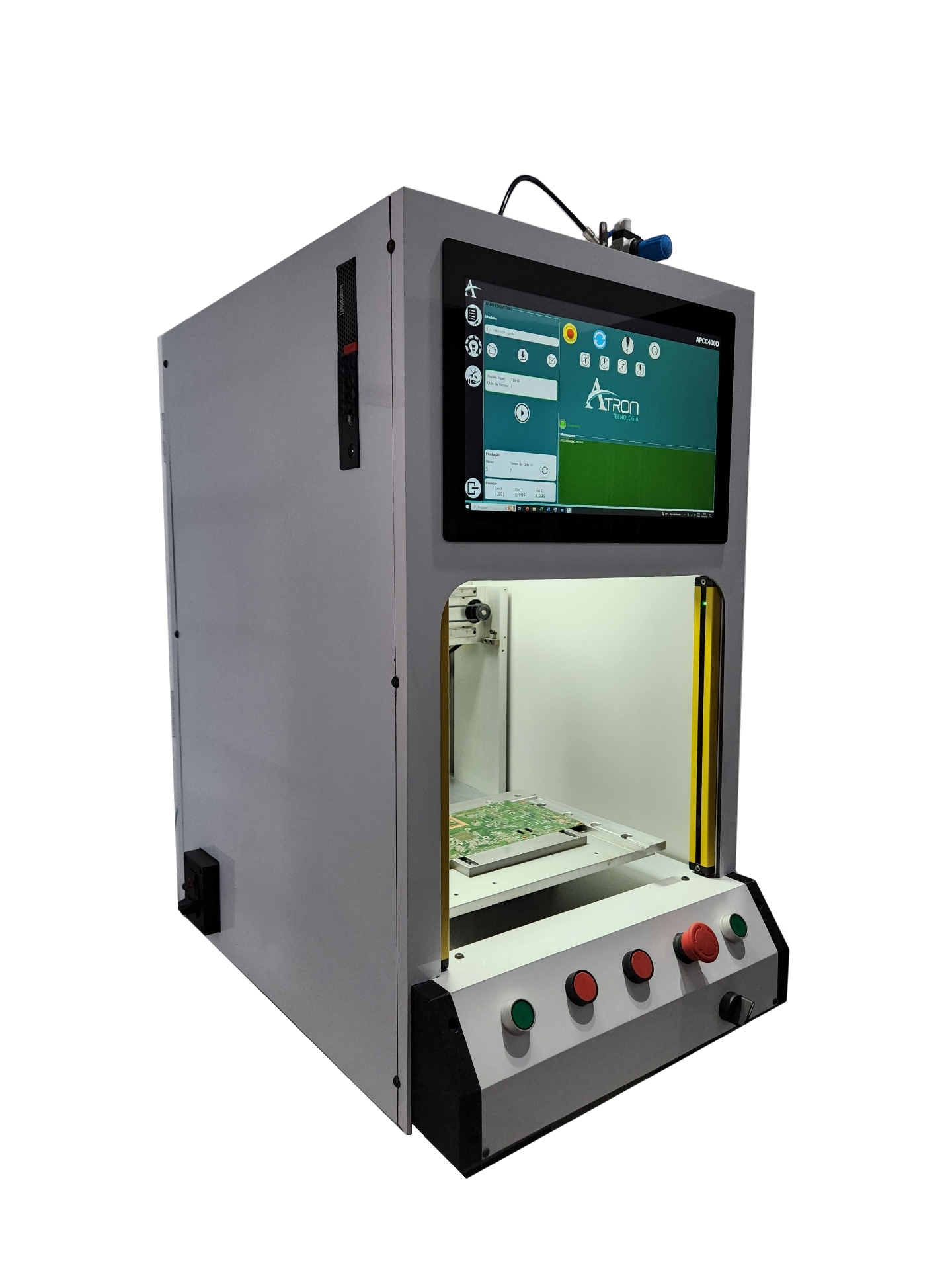

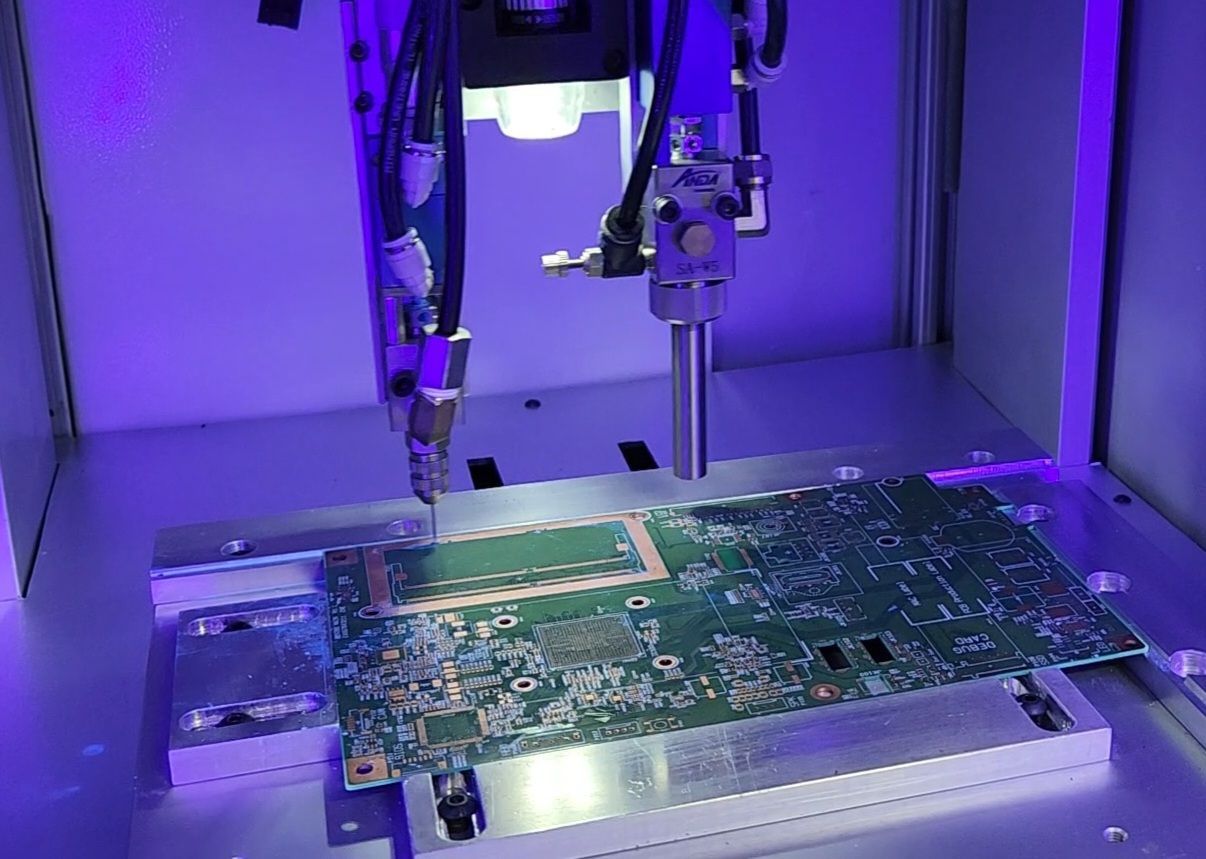

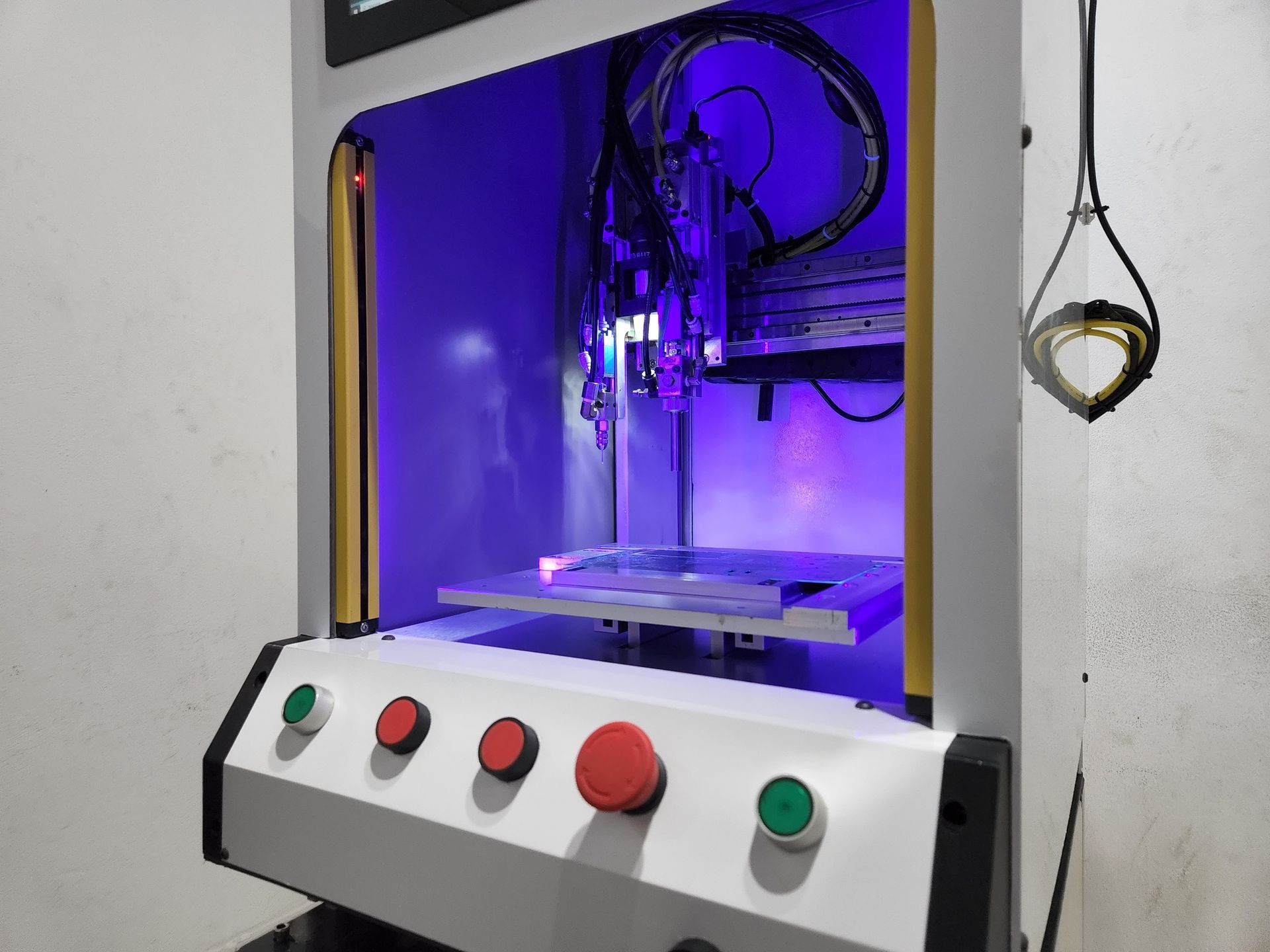

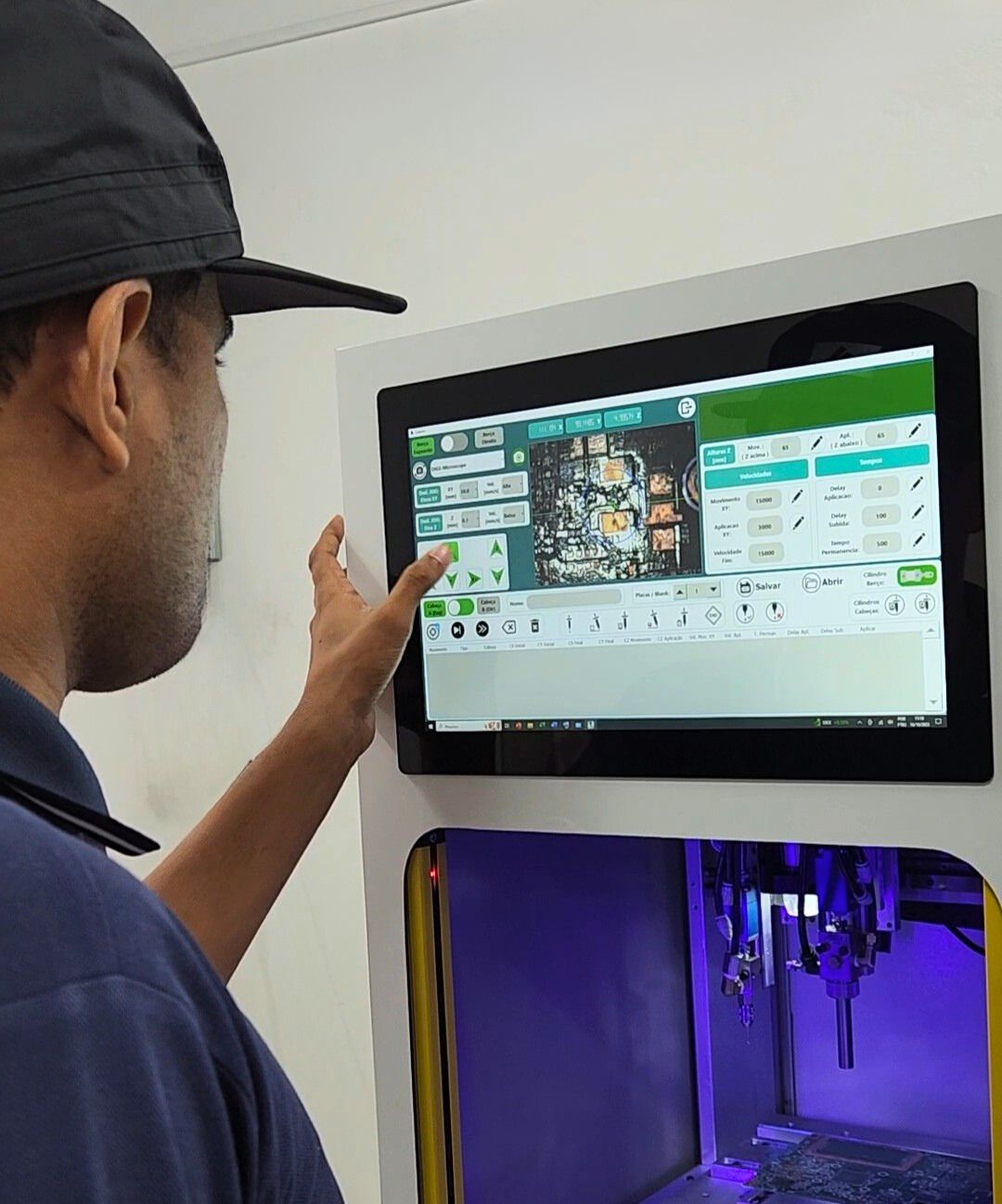

Easy and interactive control system. •Visual application point programming using a camera to define and inspect the set points. •Programmable X, Y and Z Cartesian system; •ESD system for static control; •Equipment enclosure; •Pneumatic table system with exhaust outlet duct;

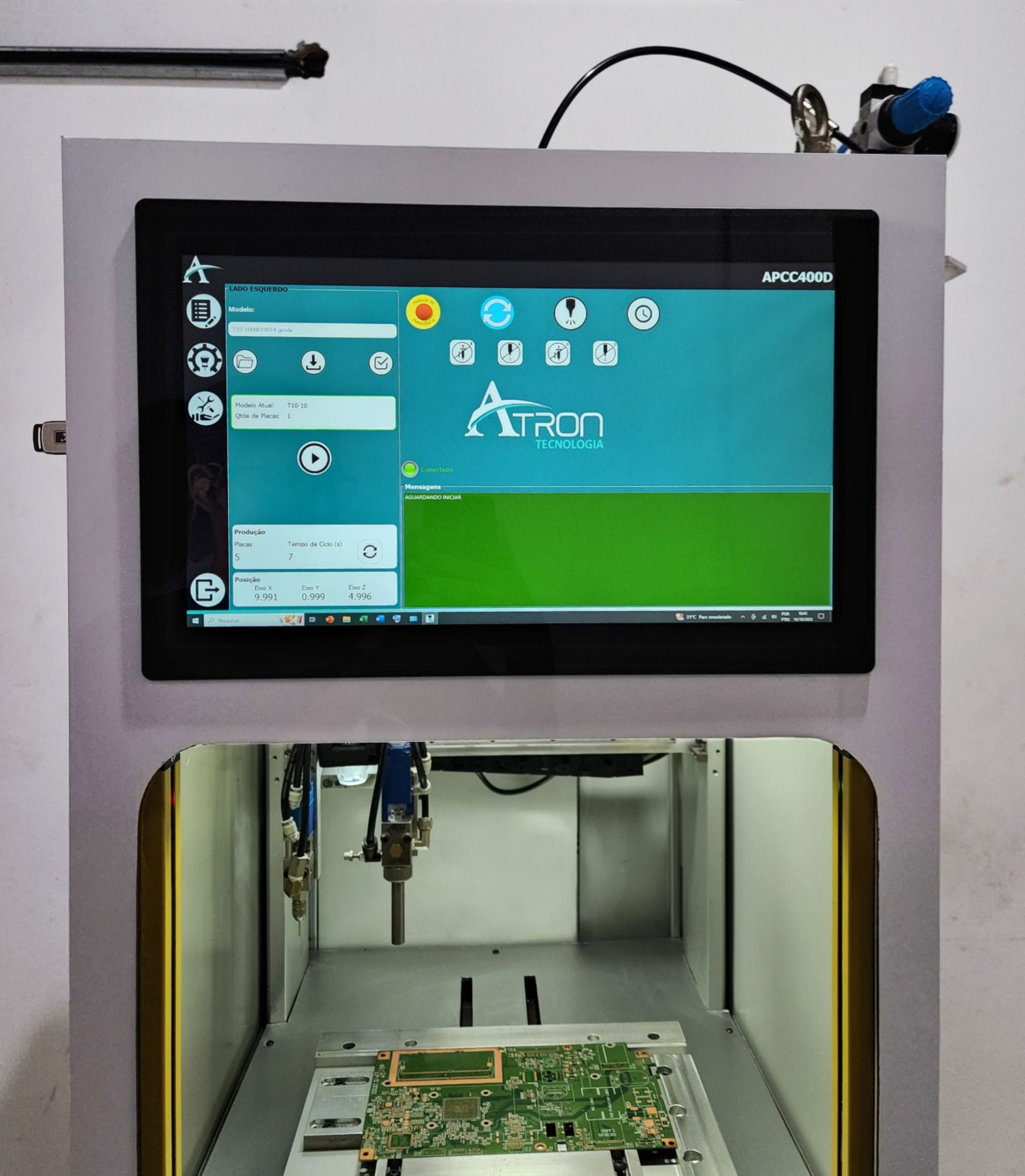

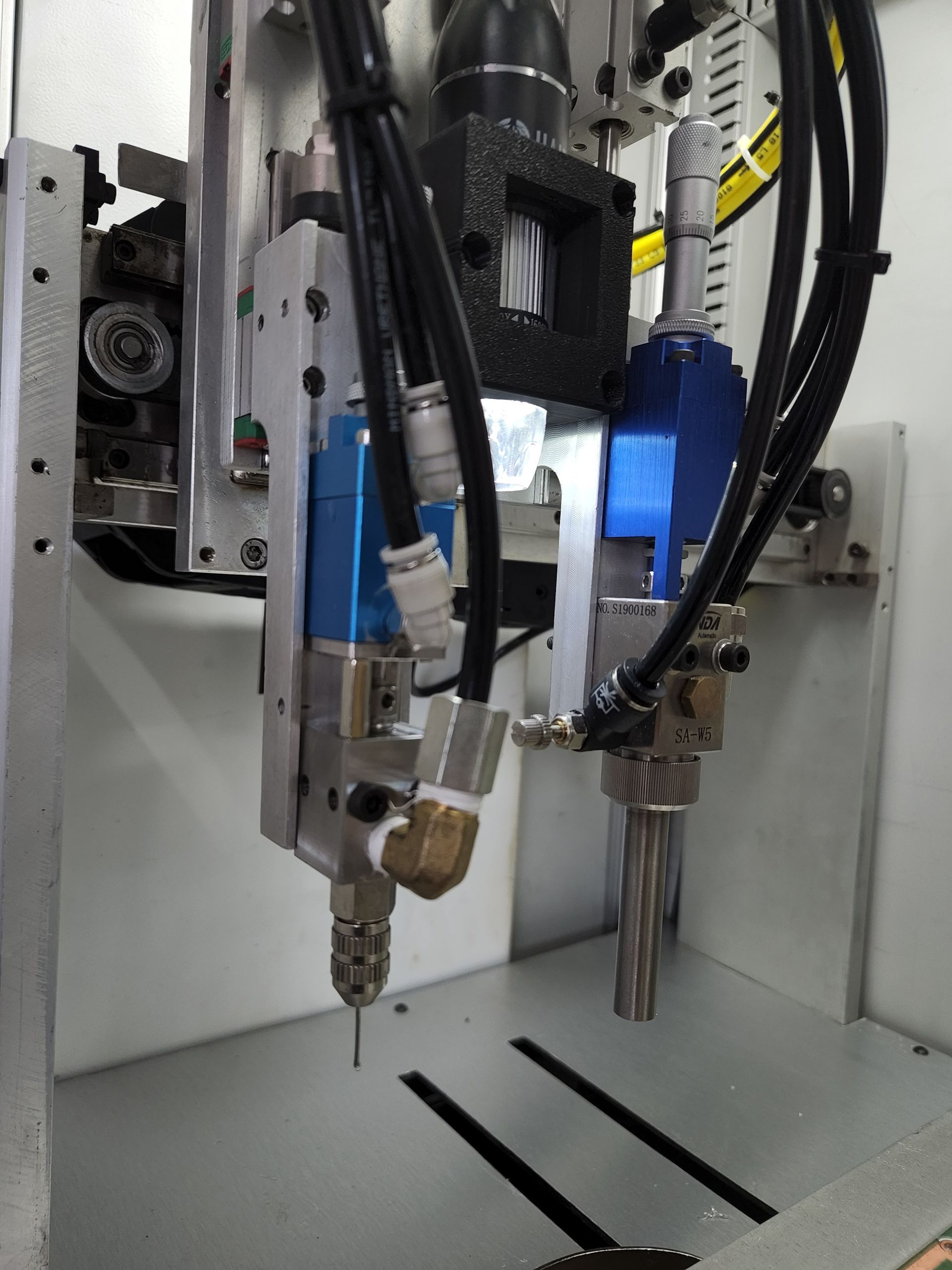

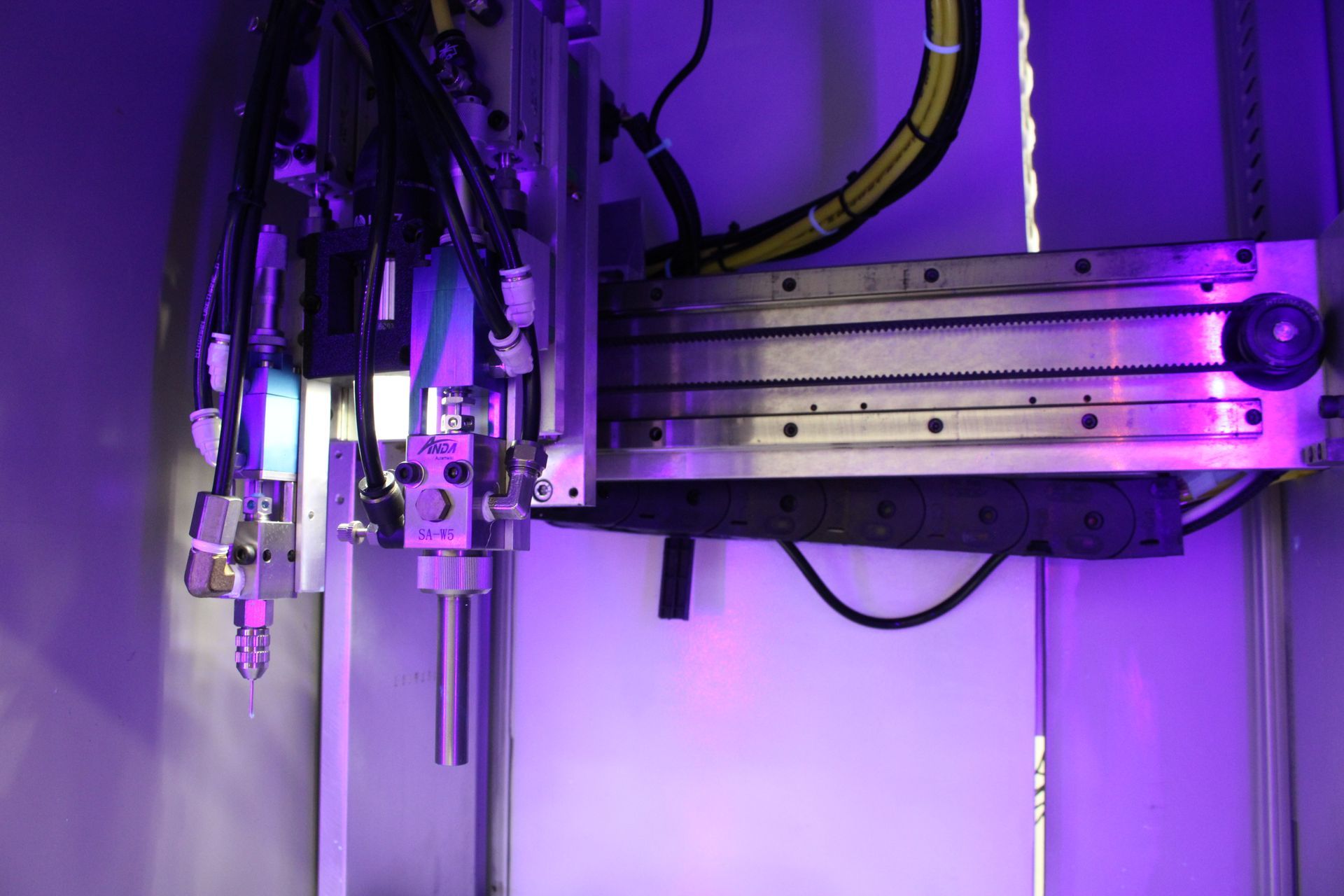

1 - Model: APC 400D 2 - Control Mode: ASCE/Atron Axis Control System Windows 10 3 - Robot Type: 3 Axis 4 - Programming Mode: Visual Programming 5 - Camera: CCD Visual Positioning Applicator: Pressure controller with regulation 6 - Right: Needle Type with Micrometer 7 - Left: Needle Type - Parallel with Manual Adjustment Application Area: Customizable area size 8 - X Axis: 400mm 9 - Y Axis: 400mm 10 - Z Axis: 130mm 11 - Max. Component Height: 90mm 12 - Conveyor direction: Left to right 13 - Conveyor type: Chain 25mm 14 - Equipment dimensions: 900mm (W) X 800mm (D) 1600mm (H) 15 - Weight of the equipment: 90kg 16 - Motor type: Stepper motor with driver / Optional 01 - Servo motors 17 - Transmission type: Synchronized belt with toothed pulleys 18 - Positioning accuracy: ± 0.01mm 19 - Movement speed: X, Y: up to 500mm / s, Z: 300mm / s 20 - Acceleration: 0.4g Electrical - Power Supply 21 - Voltage: 220V - 60Hz 22 - Current: 5A Features / Standards 23 - Control 1: Industrial PC - Windows 10 24 - Control 2: PLC - Delta AS300 25 - Stabilizer: UPS 1000va Options 26 - Pressurized bucket for storage of conformal coating

A) Equipment: Full manufacturer's warranty for a period of 12 (twelve) months after the date of shipment. The customer is responsible for shipping and returning parts under warranty to the manufacturer. Defects caused by improper use are excluded from the warranty. Full warranty on parts supply for 10 years. B) Labor: 12 (twelve) months after the date of shipment. Defects caused by improper use are excluded from the warranty. For equipment installed outside the city of Manaus, travel and accommodation expenses for ATROM's technical personnel, incurred during the installation of the equipment, courses and technical assistance calls will be the customer's responsibility. Service Limitations: Technical services within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 am to 5:00 pm. Services provided by request for a technical call outside business hours will be charged per actual working hour, regardless of the call condition. Coverage: All parts and components subject to natural wear and tear, or caused by failure or lack of preventive maintenance and conservation, or by operating errors, or by intervention by third parties not qualified or authorized by the manufacturer or supplier, are considered "out of warranty". The group of parts and components subject to wear and tear includes all units of movement, friction, constant drive and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed crowns, belts, pulleys, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are proven to be parts and components of movement and wear. For services applied within this defined group, the technical hours used in the repair or replacement will be charged separately according to the standard technical hour table in effect at the time. Installation: It will be carried out by an ATRON technician at no additional cost to the customer, however, for equipment installed outside the city of Manaus, travel, food and accommodation expenses will be the customer's responsibility.
