Easy and interactive control system.

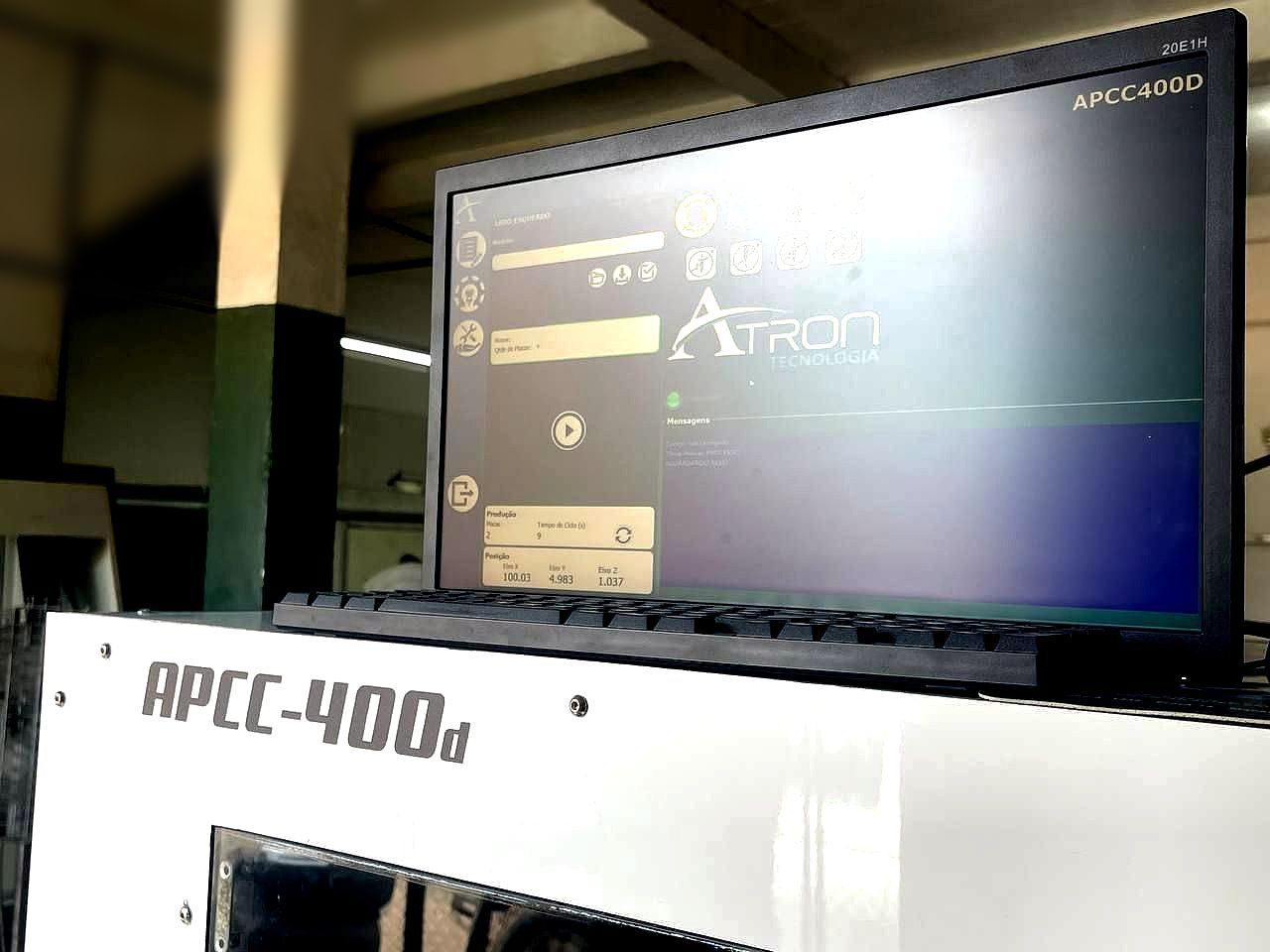

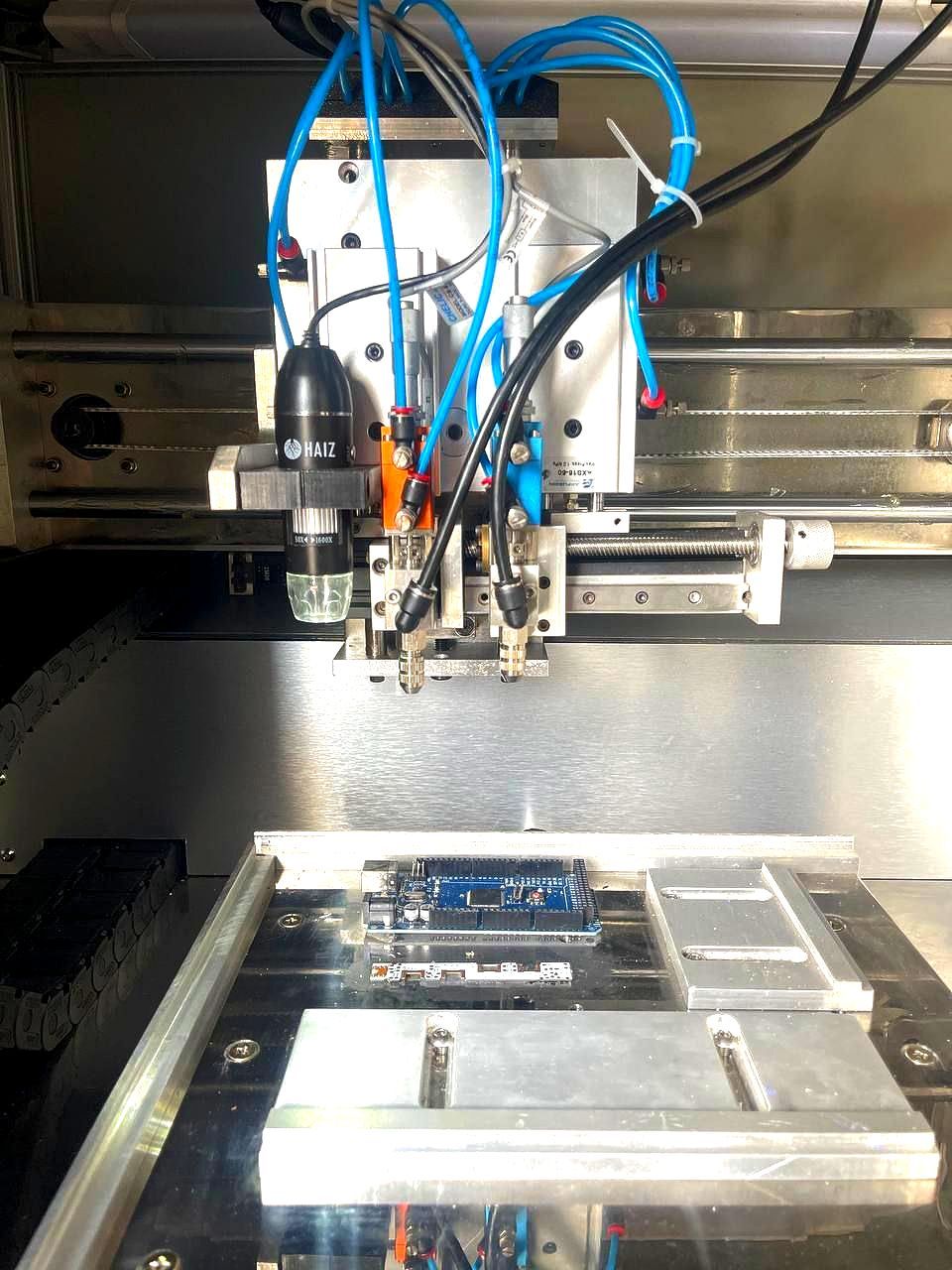

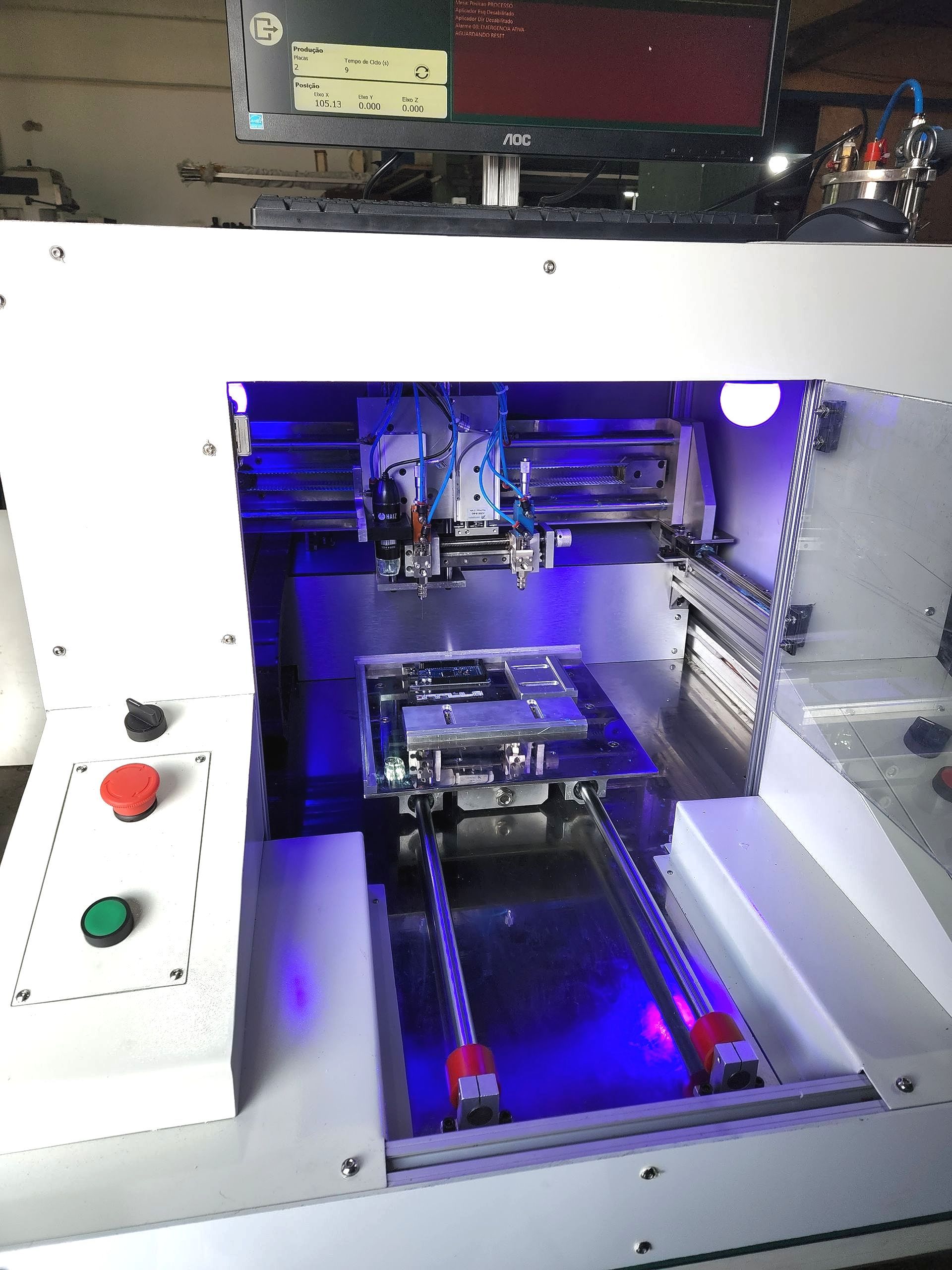

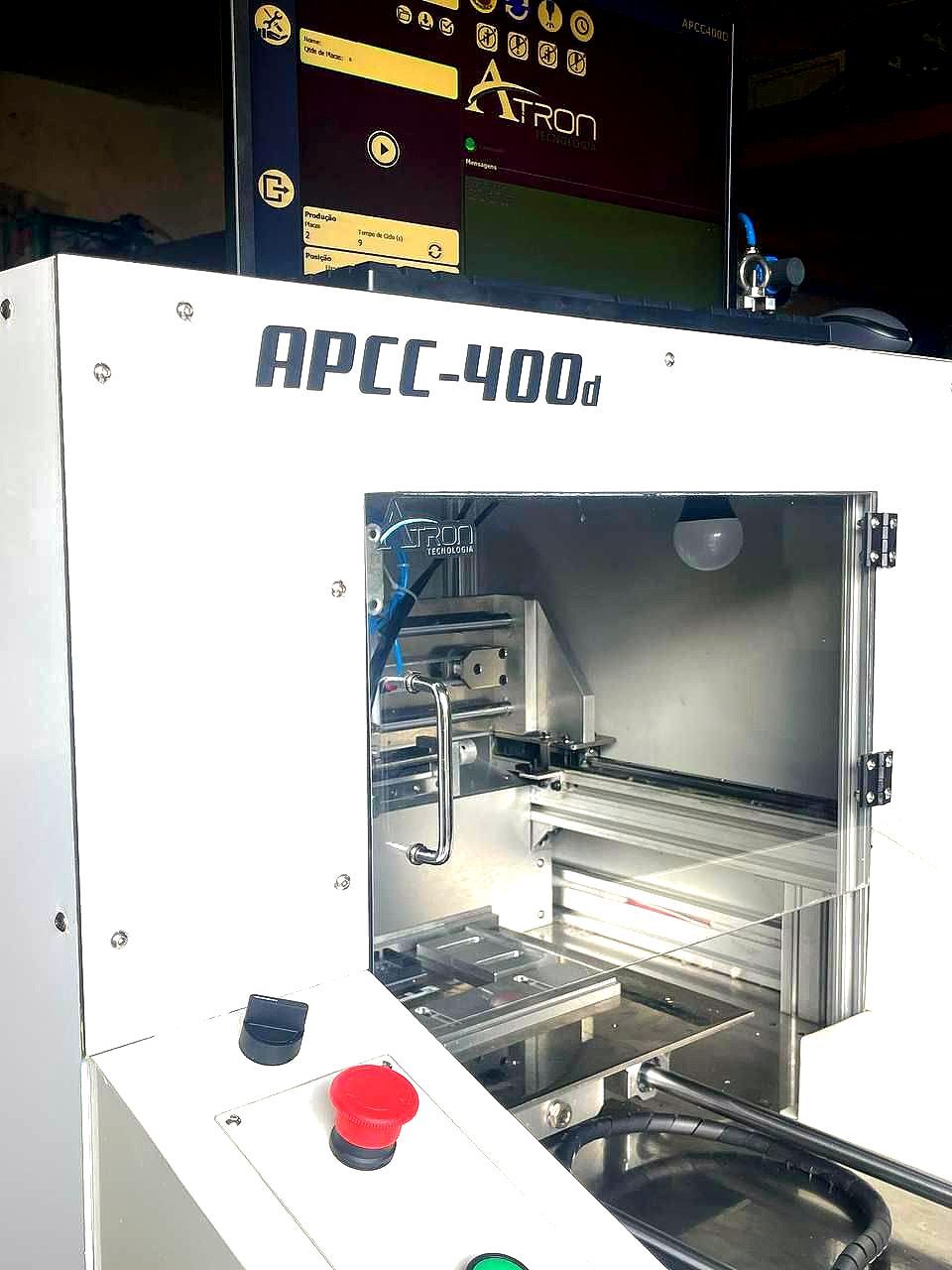

Visual programming of application points using a camera for defining and inspecting the set points.

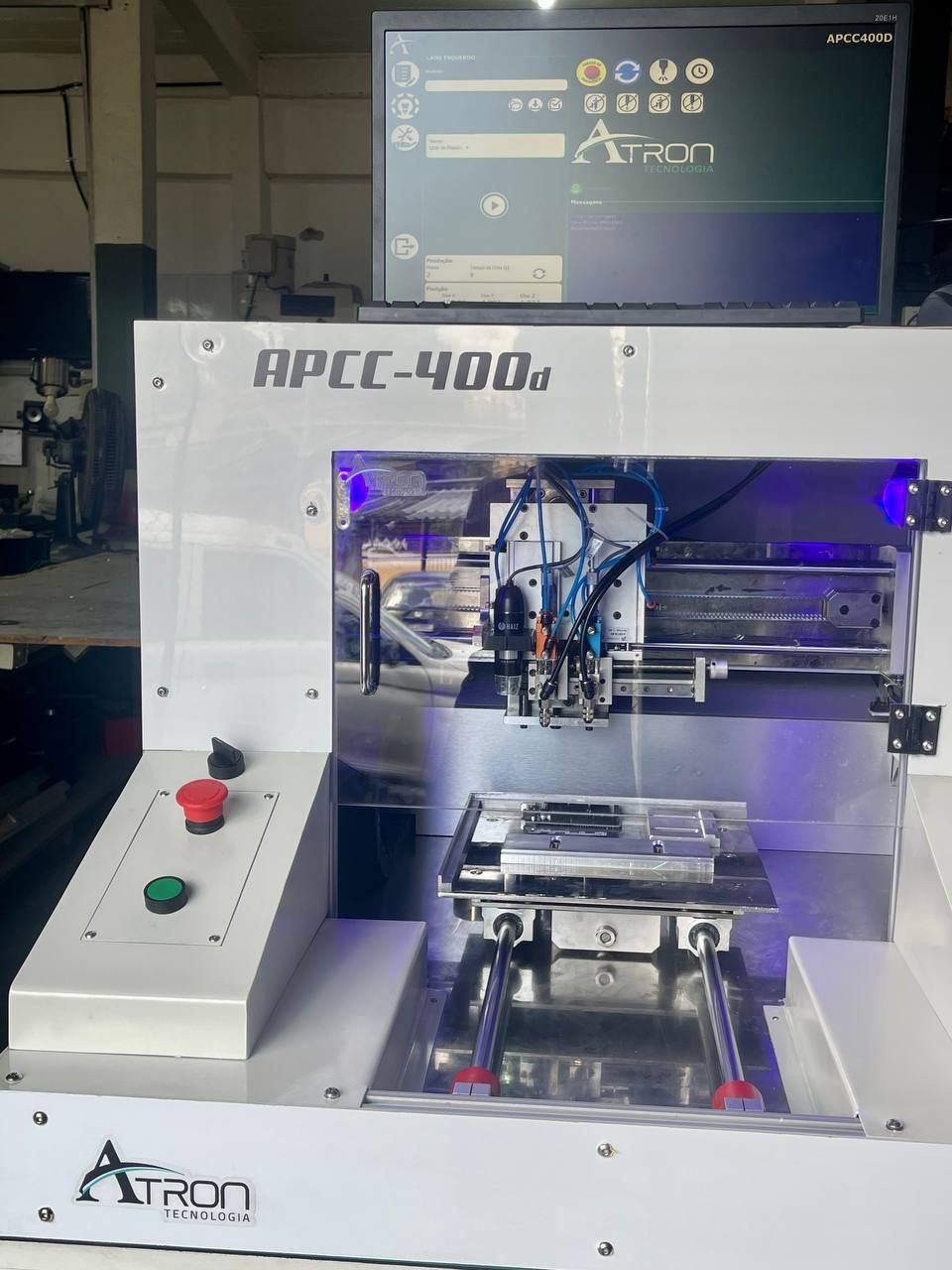

Programmable X, Y, and Z Cartesian system;

ESD system for static control;

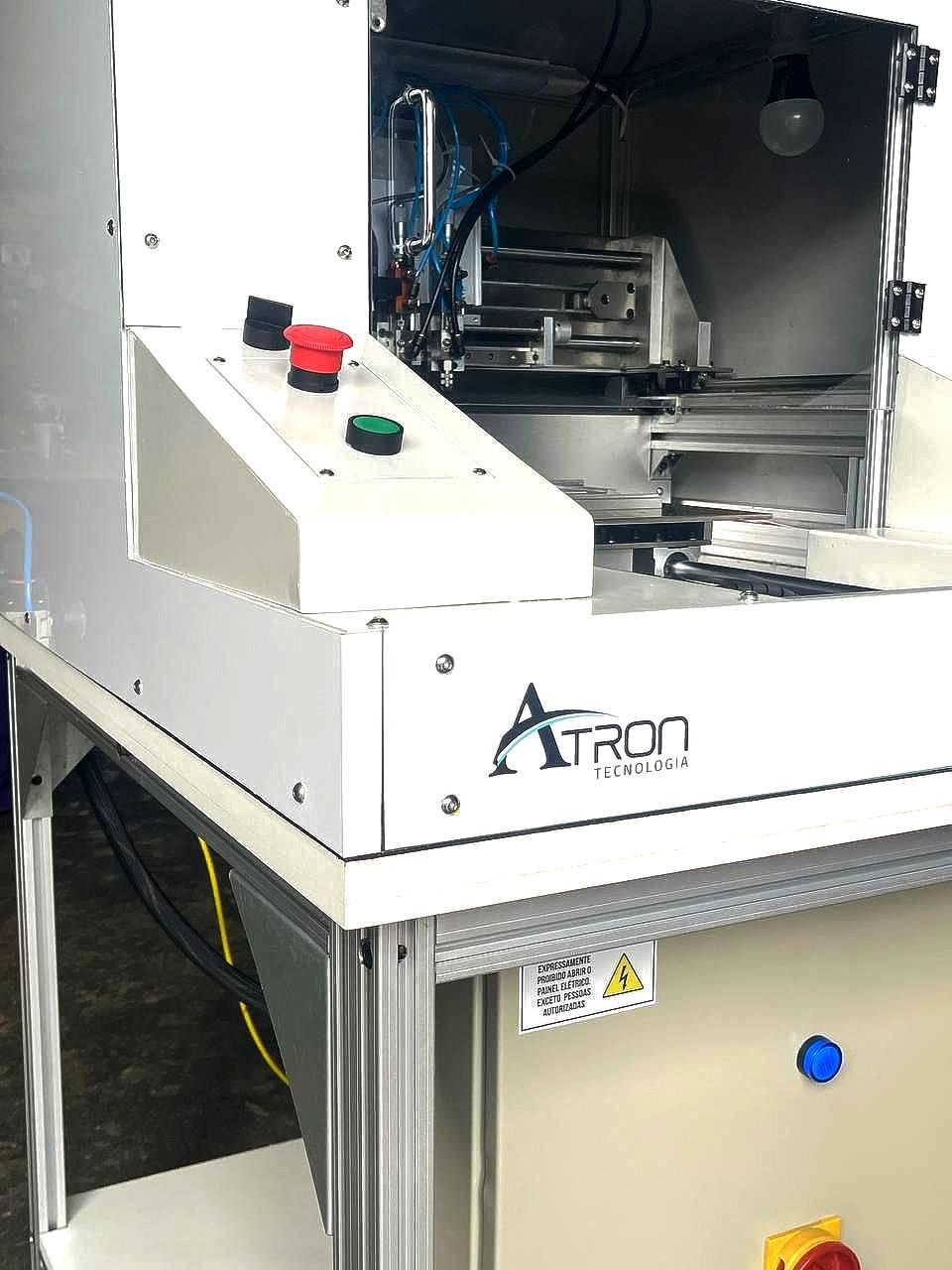

Equipment enclosure;

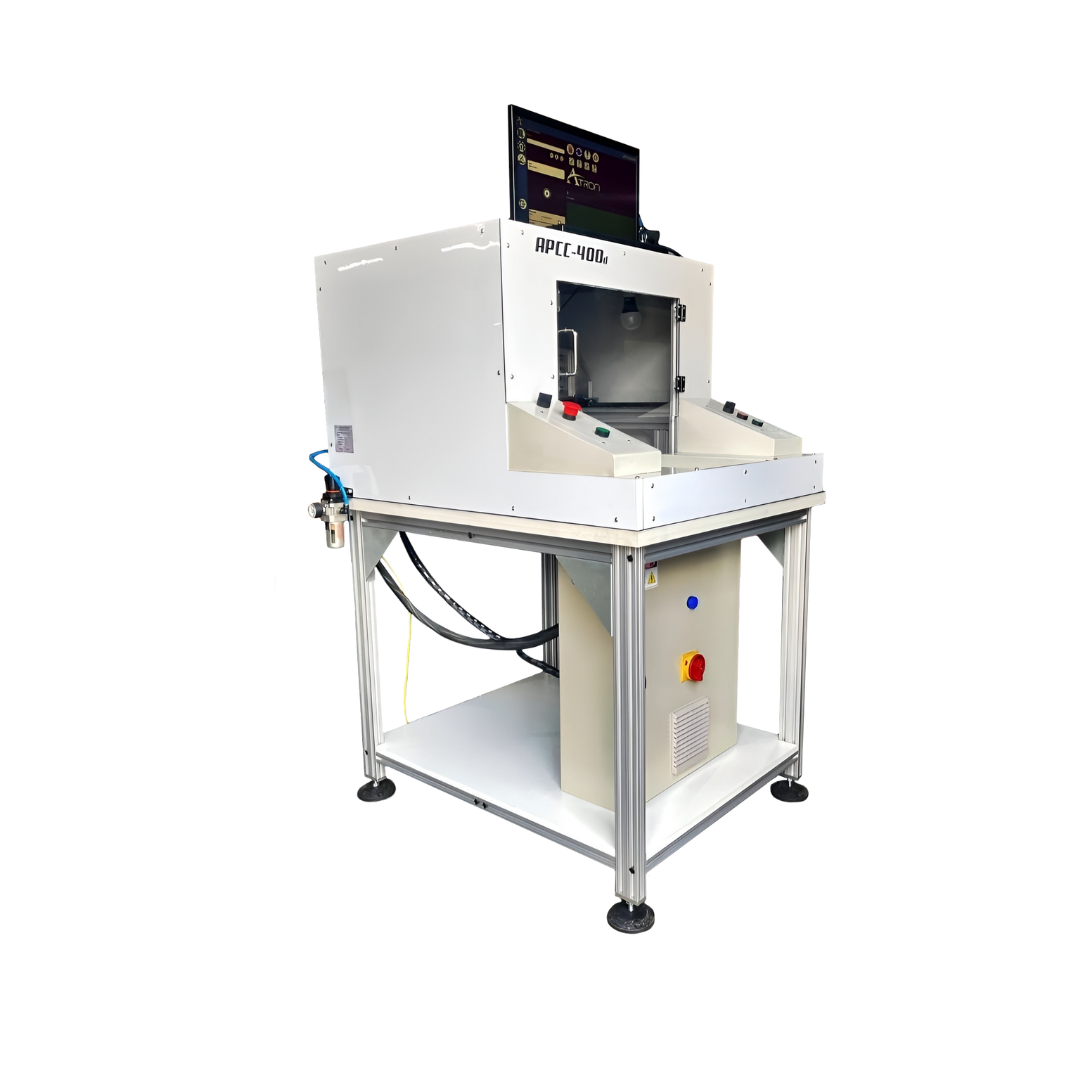

Pneumatic table system with exhaust duct;

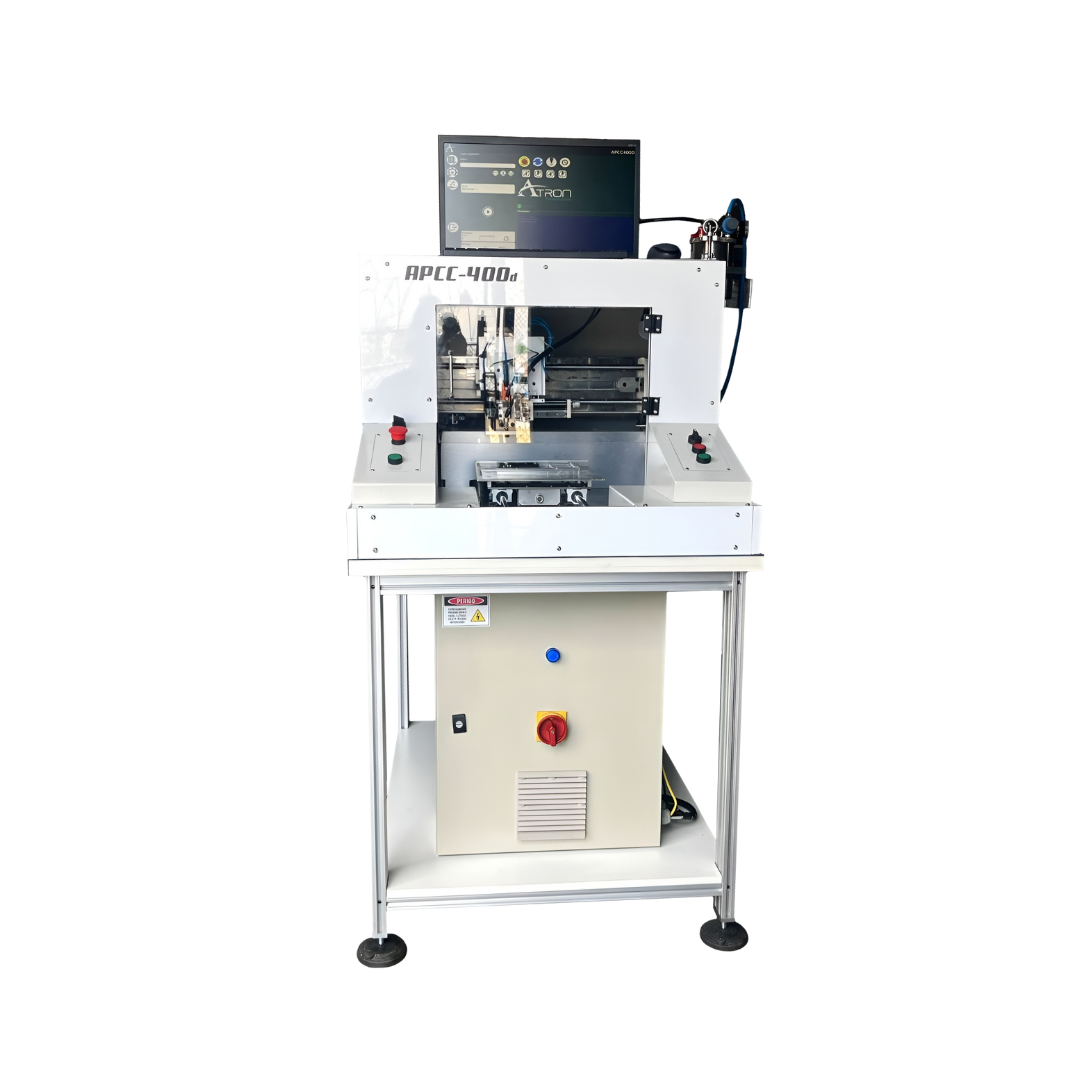

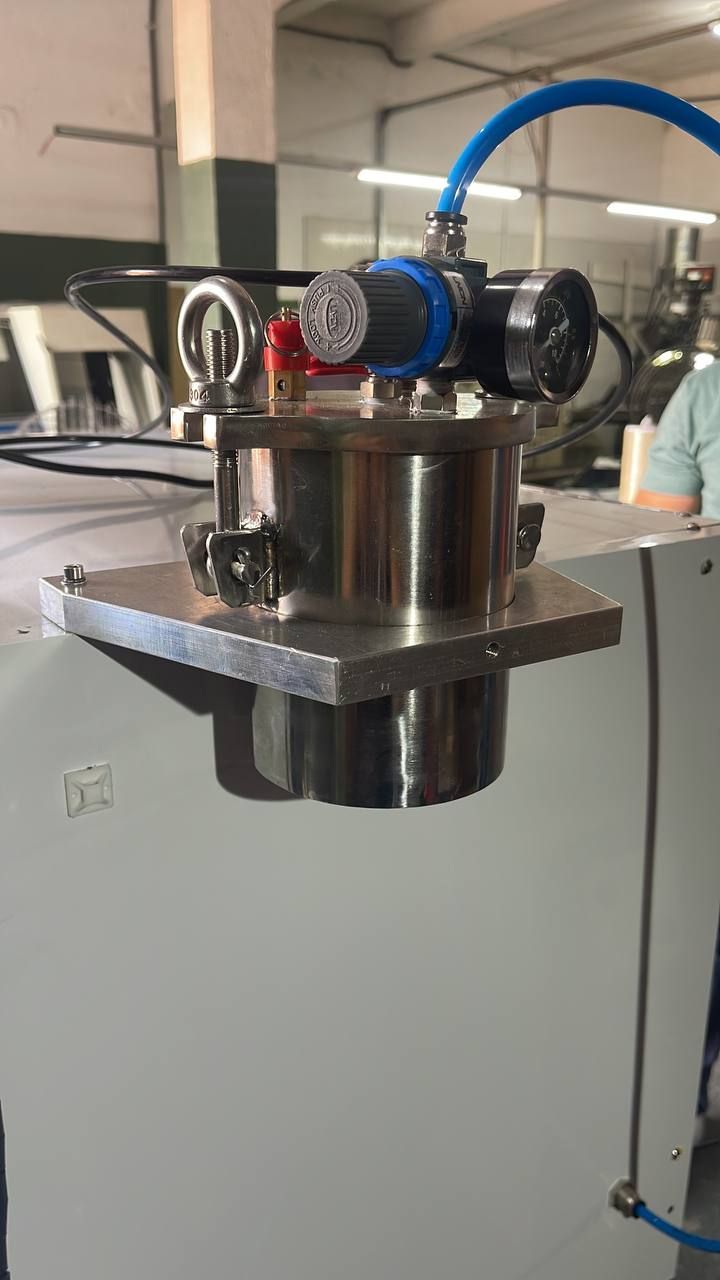

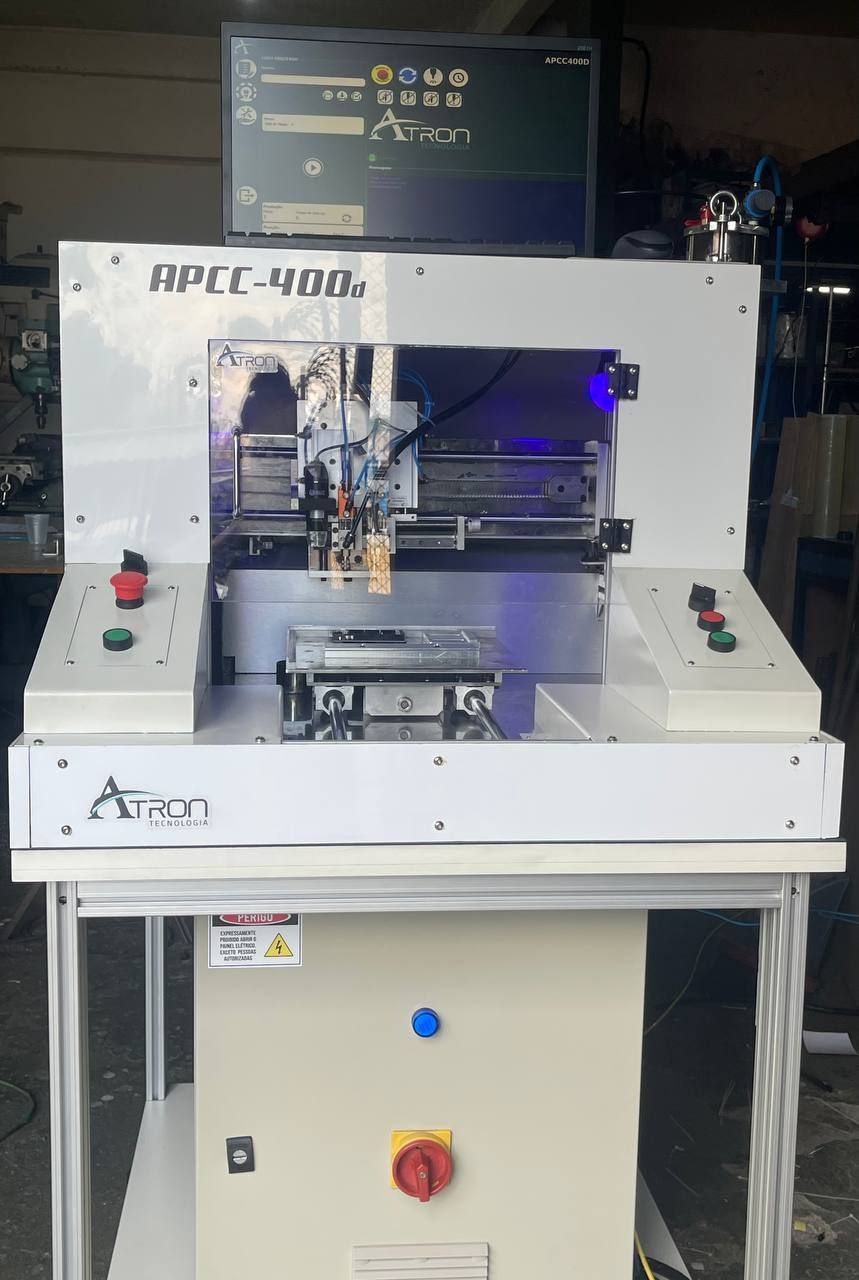

1 - Model: APC 400D 2 - Control Mode: ASCE/Atron Axis Control System Windows 10 3 - Robot Type: 3-Axis 4 - Programming Mode: Visual Programming 5 - Camera: Visual CCD Applicator Positioning: Pressure controller with adjustment 6 - Right: Needle type with micrometer 7 - Left: Needle type - Parallel with manual adjustment Application Area: Customizable area size 8 - X-axis: 400mm 9 - Y-axis: 400mm 10 - Z-axis: 130mm 11 - Max. Component Height: 90mm 12 - Conveyor Direction: Left to right 13 - Conveyor Type: 25mm chain 14 - Equipment Dimensions: 900mm (W) x 800mm (L) x 1600mm (H) 15 - Equipment Weight: 90kg 16 - Motor type: Stepper motor with driver / Optional 01 - Servo motors 17 - Transmission type: Synchronous belt with toothed pulleys 18 - Positioning accuracy: ± 0.01mm 19 - Movement speed: X, Y: up to 500mm/s, Z: 300mm/s 20 - Acceleration: 0.4g Electrical - Power Supply 21 - Voltage: 220V - 60Hz 22 - Current: 5A Features/Standards 23 - Control 1: Industrial PC - Windows 10 24 - Control 2: PLC - Delta AS300 25 - Stabilizer: UPS 1000va Optional 26 - Pressurized bucket for conformal coating storage

A) Equipment: Full manufacturer's warranty for a period of 12 (twelve) months after the shipping date. The shipping and return of parts under warranty to the manufacturer are the responsibility of the customer. Defects caused by improper use are excluded from the warranty. Full parts supply warranty for 10 years. B) Labor: 12 (twelve) months after the shipping date. Defects caused by improper use are excluded from the warranty. For equipment installed outside the municipality of Manaus, the travel and accommodation expenses of ATROM's technical personnel, incurred during equipment installation, training courses, and technical assistance calls, will be the responsibility of the customer. Service Limitations: Technical assistance within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 AM to 5:00 PM. Services performed at the request of a technical call outside business hours will be charged per hour of actual work, regardless of the call condition. Coverage: All parts and components subject to natural wear and tear, or wear caused by failure or lack of preventive maintenance and conservation, or by operational errors, or by intervention of third parties not qualified and not authorized by the manufacturer or supplier, are considered "out of warranty". Within the group of wear parts and components are all units of movement, friction, constant actuation and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed sprockets, belts, sheaves, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are demonstrably parts and components subject to movement and wear. For services applied within this defined group, the technical hours spent on repair or replacement will be charged separately according to the standard technical hour rate table in effect at the time. Installation: Installation will be performed by an ATRON technician at no additional cost to the customer; however, for equipment installed outside the municipality of Manaus, travel, food, and accommodation expenses will be the customer's responsibility.
