ATC1000 DLR | Dual Lane Cooling Conveyor

High performance, safety, and integration for SMT lines.

ATC1000DL – Duo Lane Conveyor with High Thermal Performance Cooling for SMT Assembly

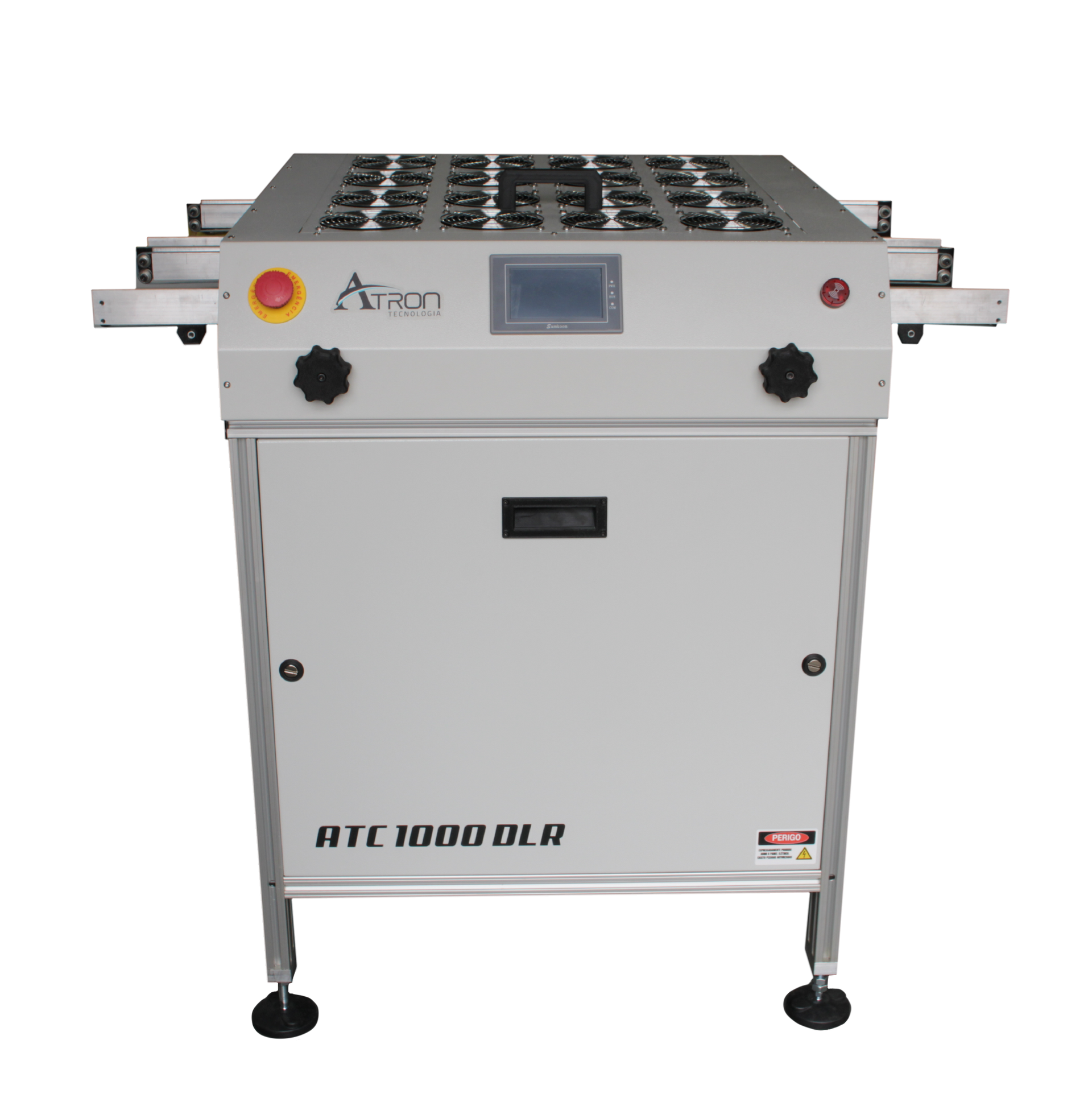

ATC1000DLR - Dual Lane Cooling Conveyor

  • Designed for demanding electronic assembly environments, the ATC1000 DLR offers efficient PCB board cooling with a dual-lane system, intuitive control via PLC/HMI, and maximum safety in accordance with NR12 standards. Compatible with SMEMA communication, it ensures seamless integration and high productivity in SMT lines. ________________________________________ Applications and Indications

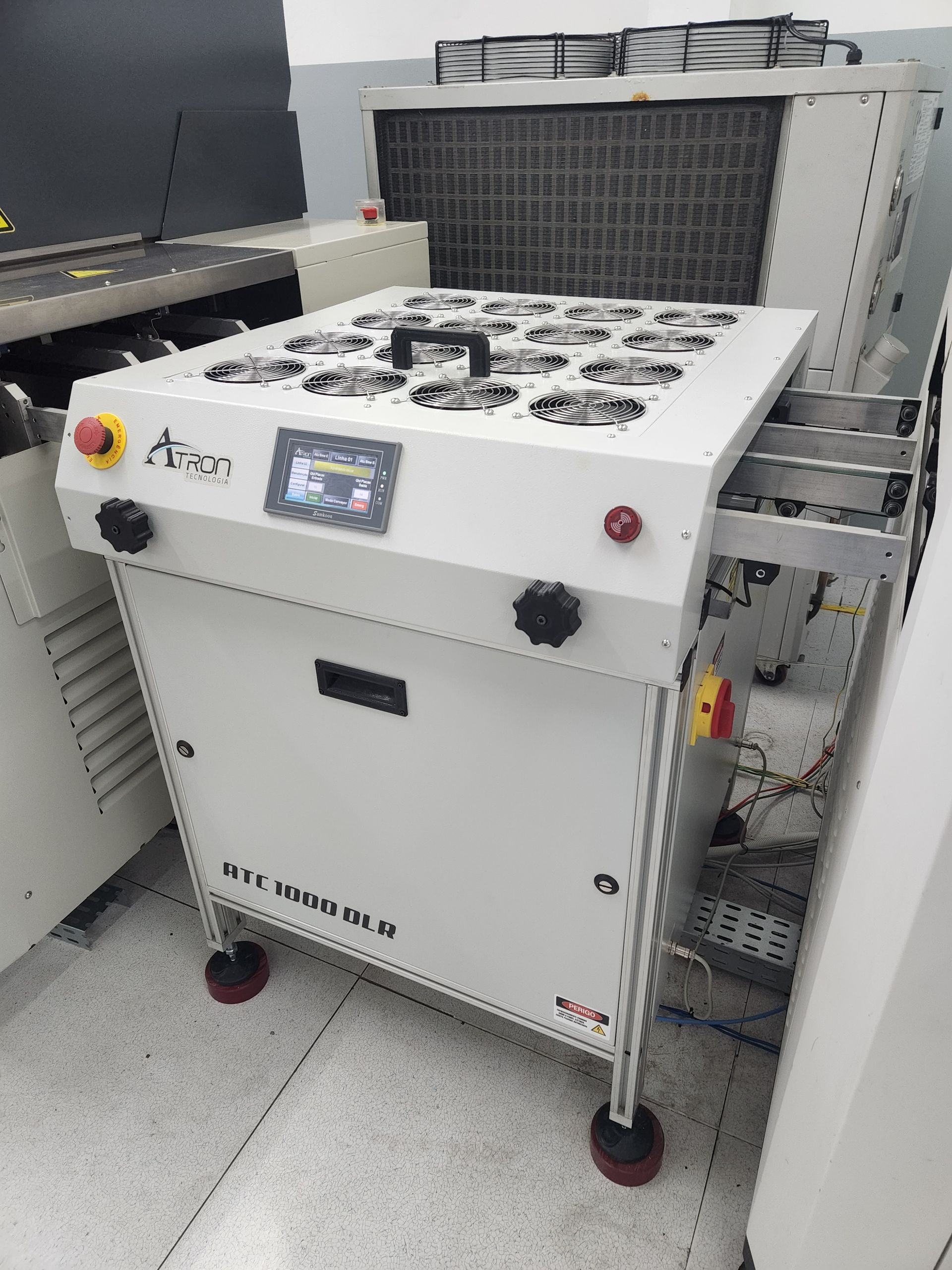

  • Ideal for automated SMT assembly lines
  • Fast and standardized PCB board cooling
  • Recommended for medium and high production volumes
  • Easy integration with other equipment on the line
  • High performance and operational safety
  • Nationally produced with support and warranty

    • Request a quote

    Technical Description

  • Structure and Dimensions
  • Structure: Structural aluminum
  • Casing: Steel sheet with electrostatic paint
  • Dimensions: 1000mm (L) x 800mm (W) x 910mm (H)
  • Approximate weight: 60 kg
  • Adjustable leveling feet Transport System

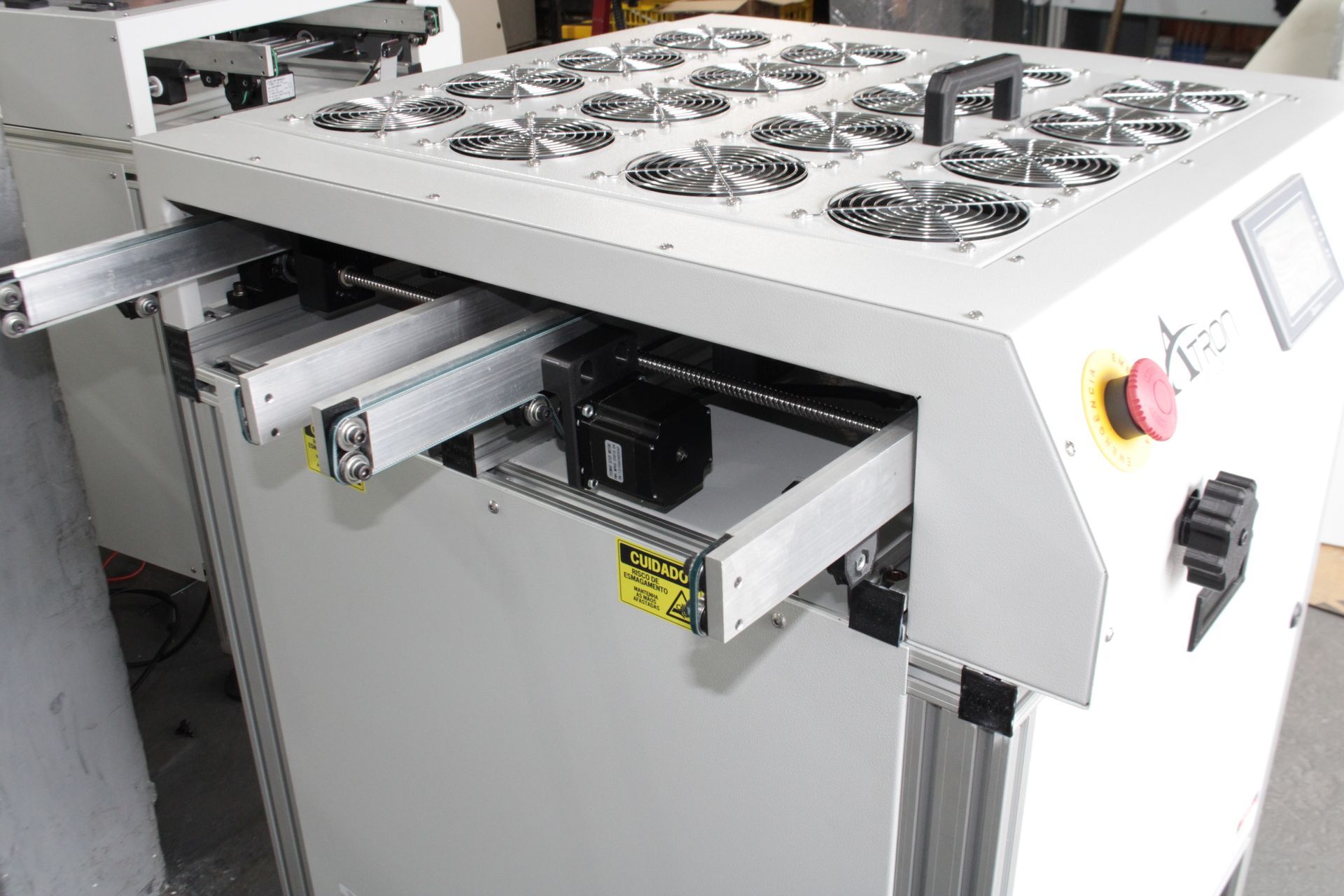

  • Type: Dual Lane
  • Belt: 6mm ESD

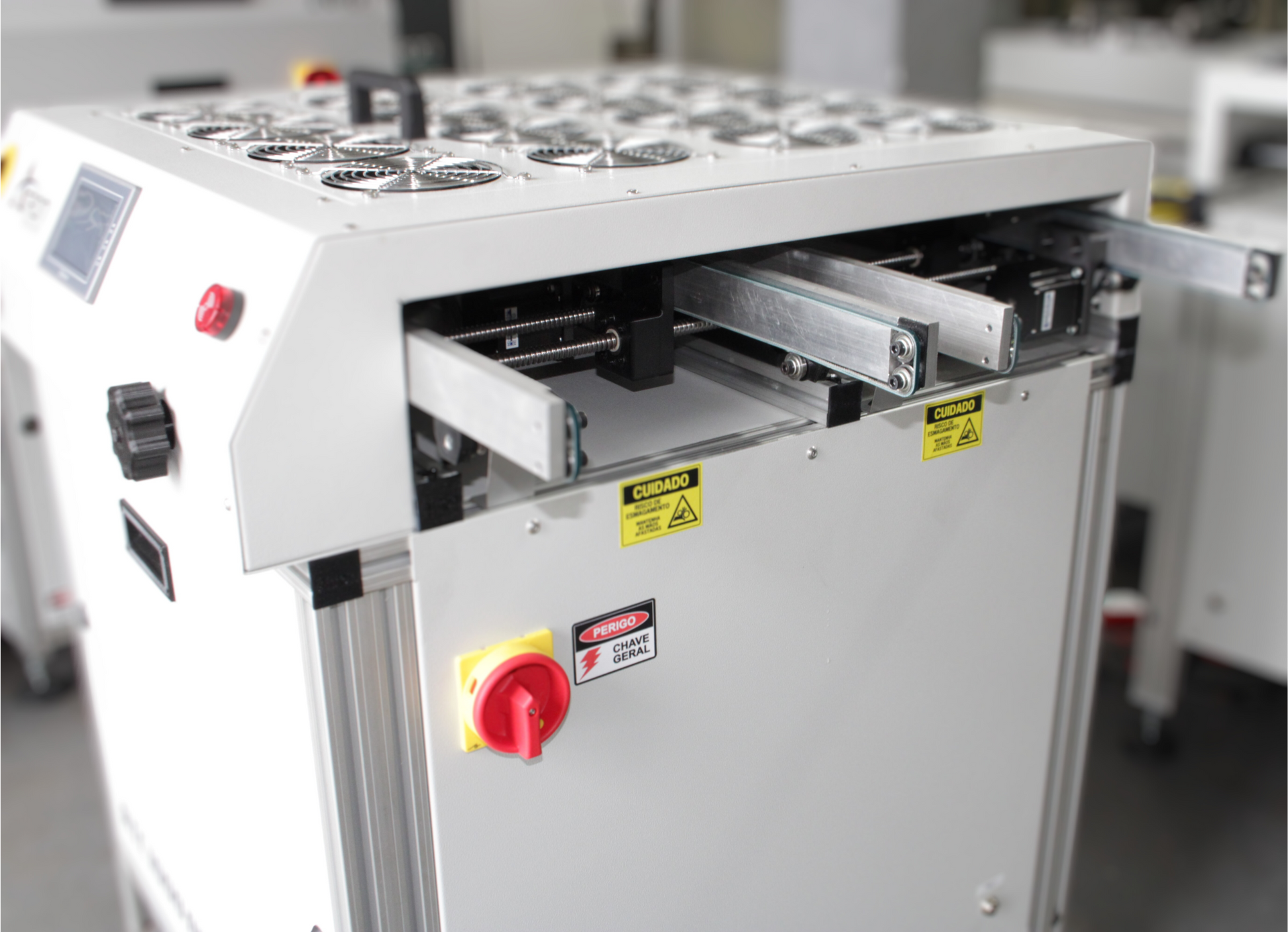

  • Width adjustment: Manual handwheel
  • Maximum opening: 300 mm
  • Motors: Stepper motor per lane Cooling System

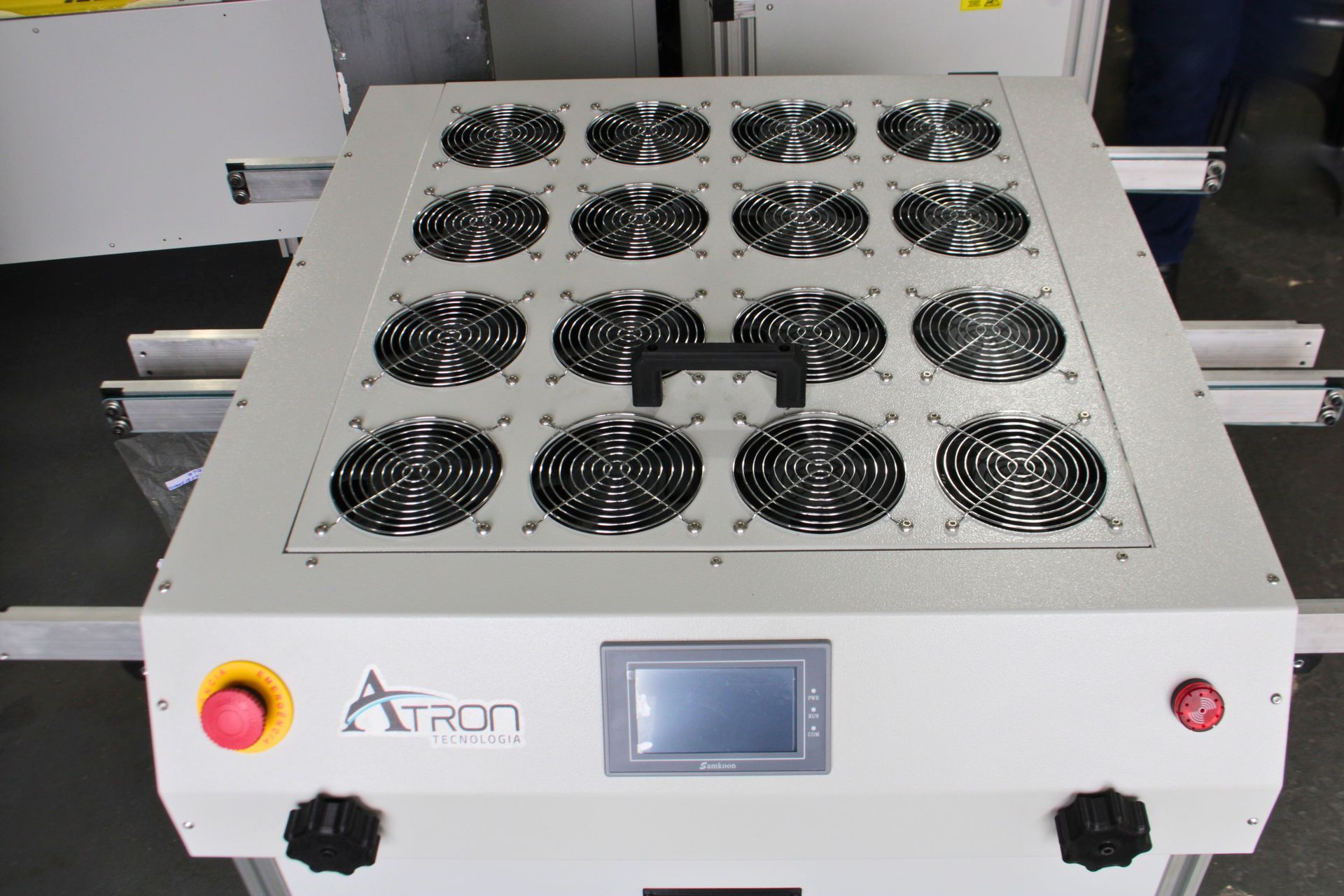

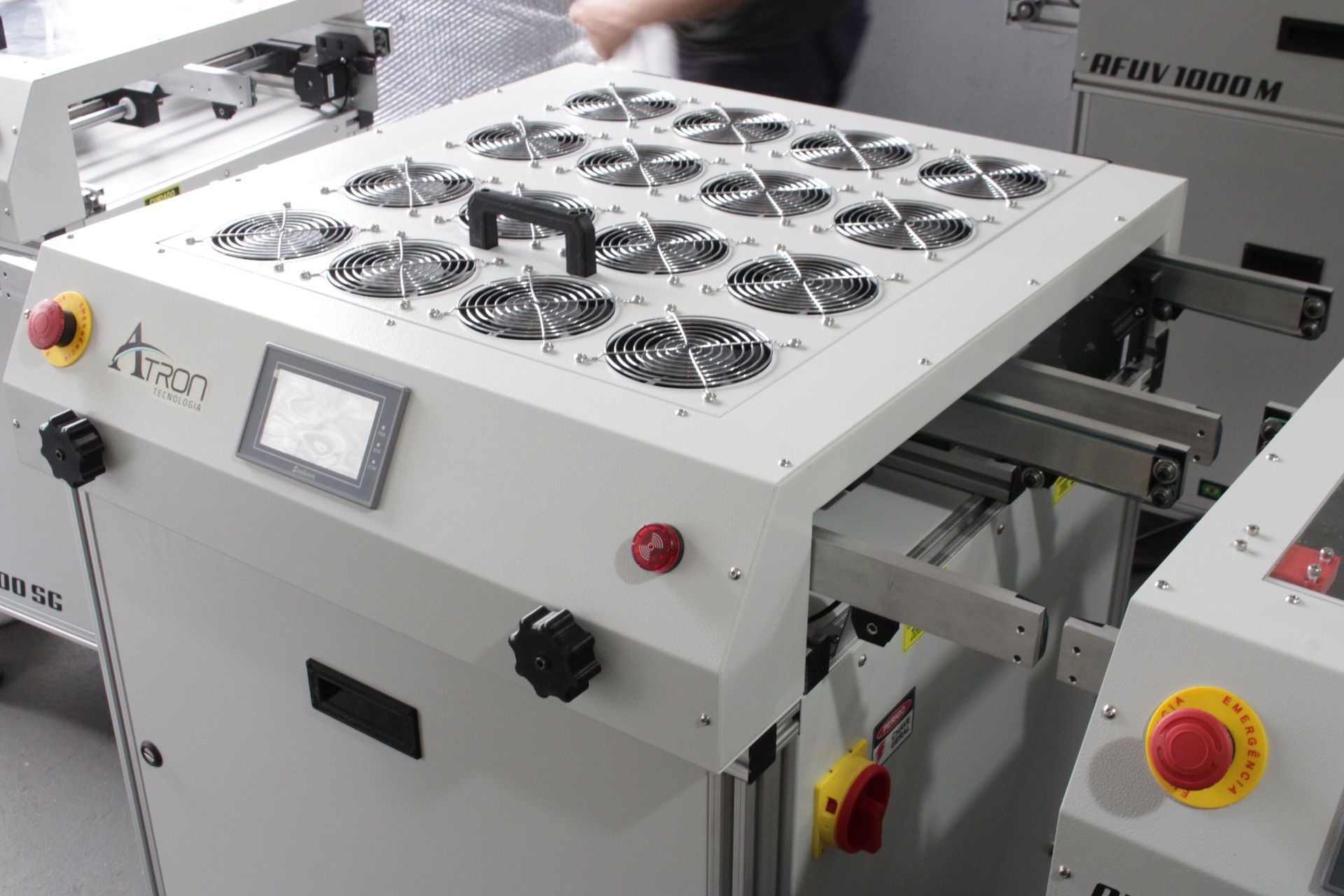

  • Top cover with 16 coolers (120x120x30 mm)
  • Polycarbonate cover with safety lock Safety
  • Safety sensor on the top door
  • Monitoring relay for door and emergency stop
  • Emergency stop button
  • Complete enclosure according to NR12 Interface and Control

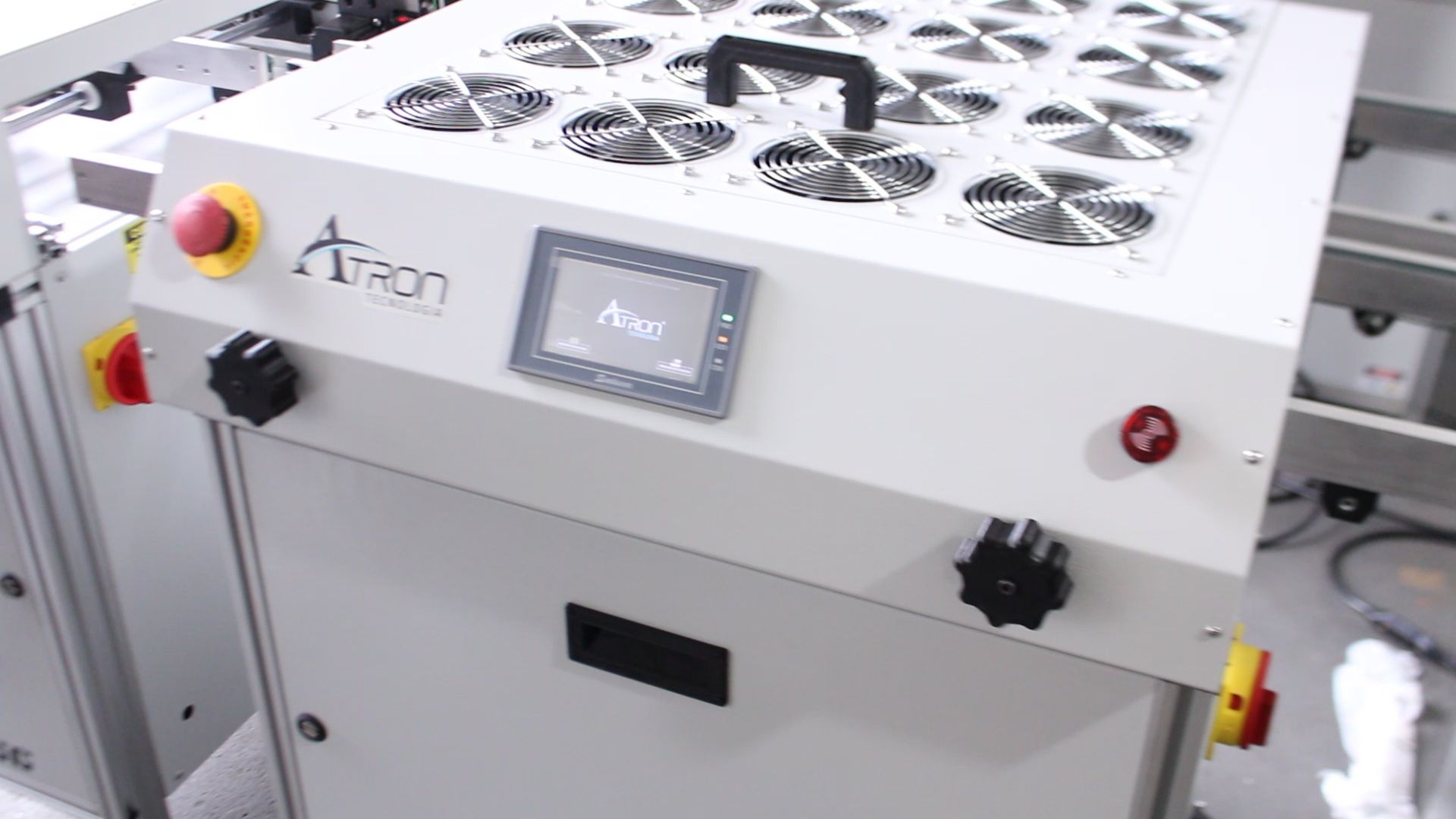

  • PLC with integrated HMI (easy and interactive control)
  • Input and output monitoring
  • Digital hour meter
  • Status indicator LEDs
  • ESD connector For static control. Power supply:
  • Voltage: 220V / 60Hz
  • Current: 10A
  • Pressure: Not applicable

    • Guarantee

  • A) Equipment:
  • Full manufacturer's warranty for a period of 12 (twelve) months after the shipping date.
  • The shipping and return of parts under warranty to the manufacturer are the responsibility of the customer.
  • Defects caused by improper use are excluded from the warranty.
  • Full parts supply warranty for 10 years. B) Labor:
  • 12 (twelve) months after the shipping date.
  • Defects caused by improper use are excluded from the warranty.
  • For equipment installed outside the municipality of Manaus, the travel and accommodation expenses of ATRON's technical personnel, incurred during equipment installation, training courses, and technical assistance calls, will be the responsibility of the customer. Service Limitations: Technical assistance within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 AM to 5:00 PM. Services performed in response to technical call requests outside of business hours will be charged per hour of actual work, regardless of the call's condition. Coverage: All parts and components subject to natural wear and tear, or wear caused by failure or lack of preventive maintenance and conservation, or by operational errors, or by intervention of third parties not qualified and not authorized by the manufacturer or supplier, are considered "out of warranty". Within the group of wear parts and components are all units of movement, friction, constant actuation and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed sprockets, belts, pulleys, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are demonstrably parts and components subject to movement and wear. For services applied within this defined group, the technical hours spent on repair or replacement will be charged separately according to the standard technical hour rate table in effect at the time. Installation: This will be performed by an ATRON technician at no additional cost to the client; however, for equipment installed outside the municipality of Manaus, travel, food, and accommodation expenses will be the client's responsibility.
