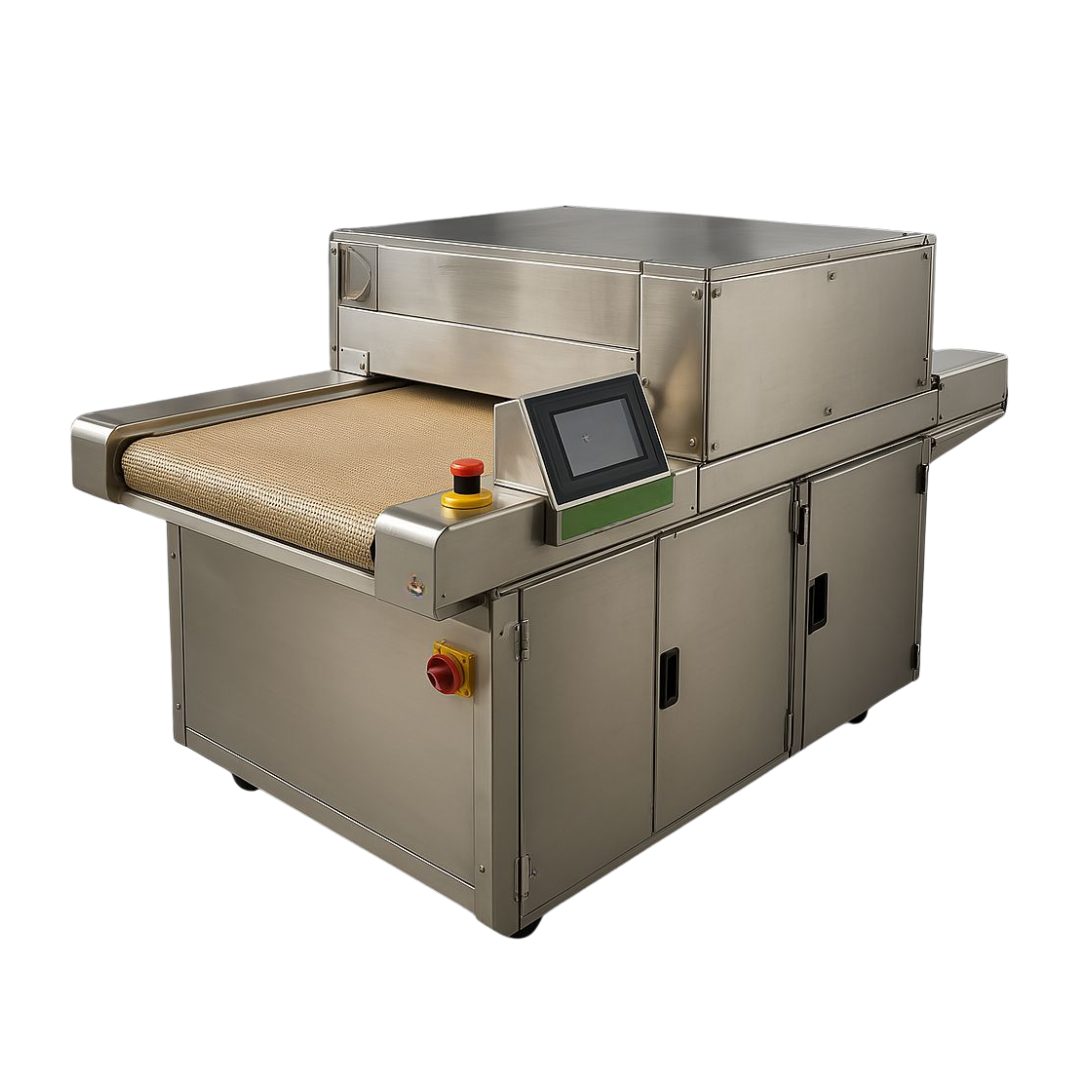

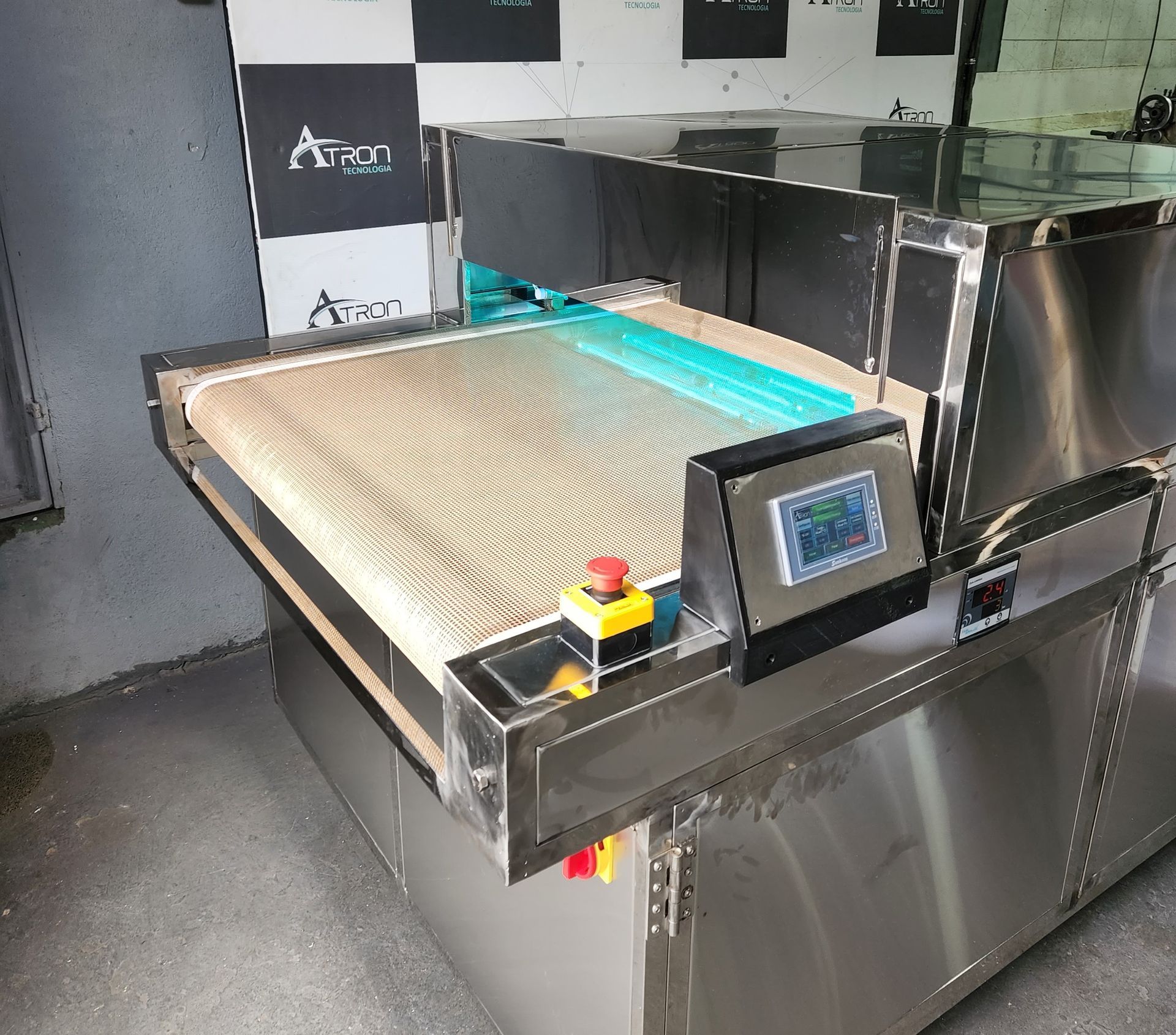

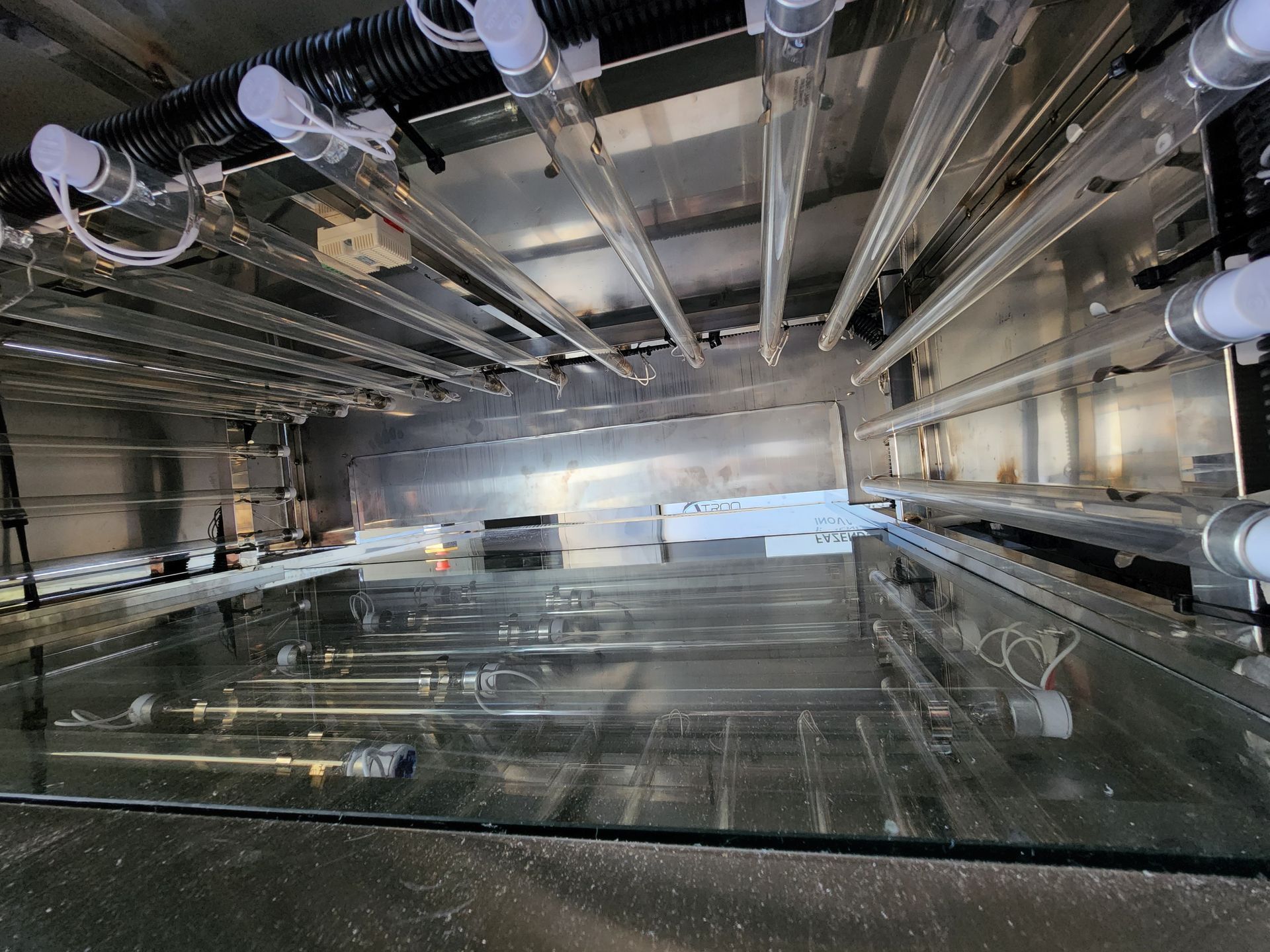

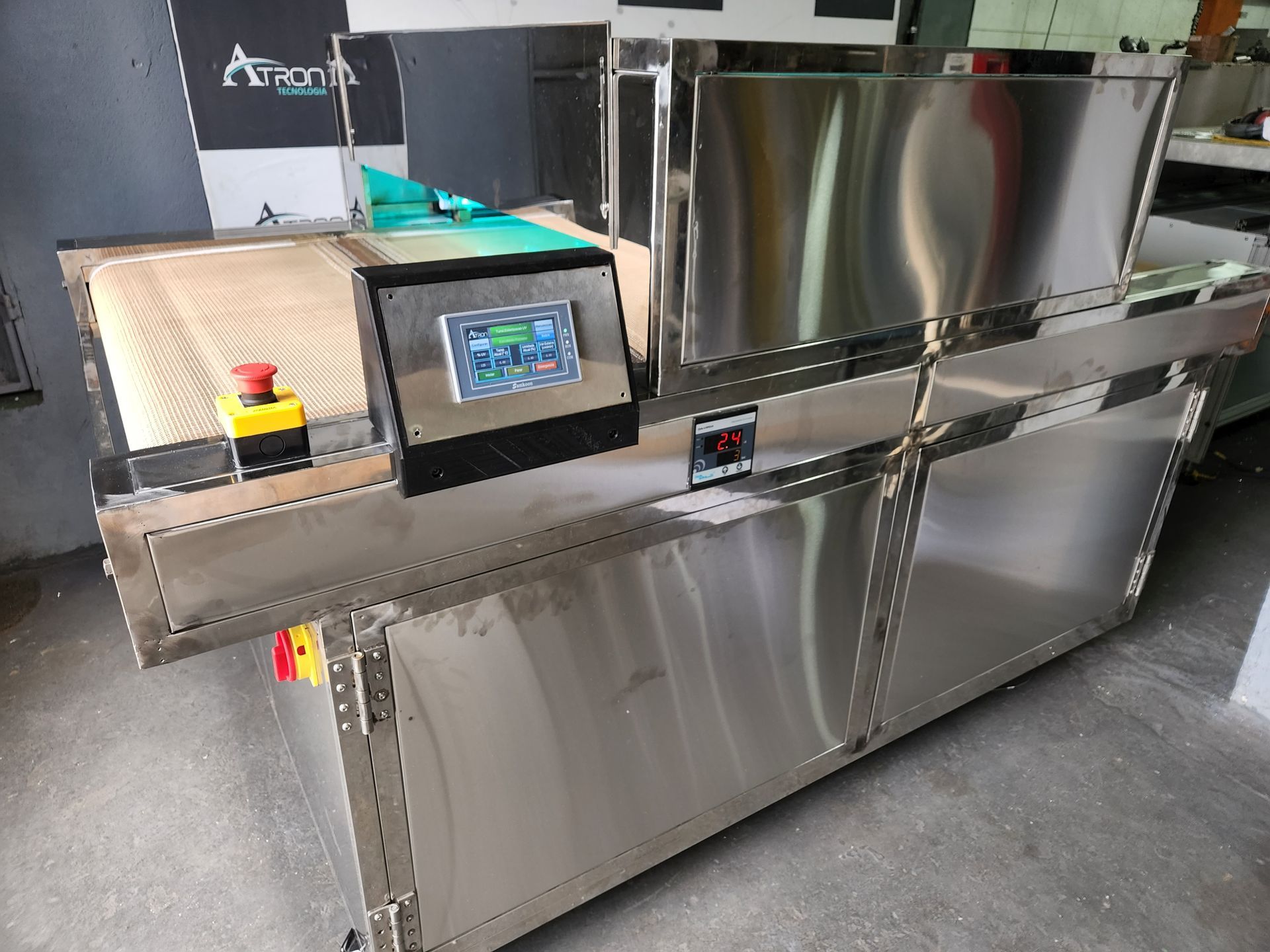

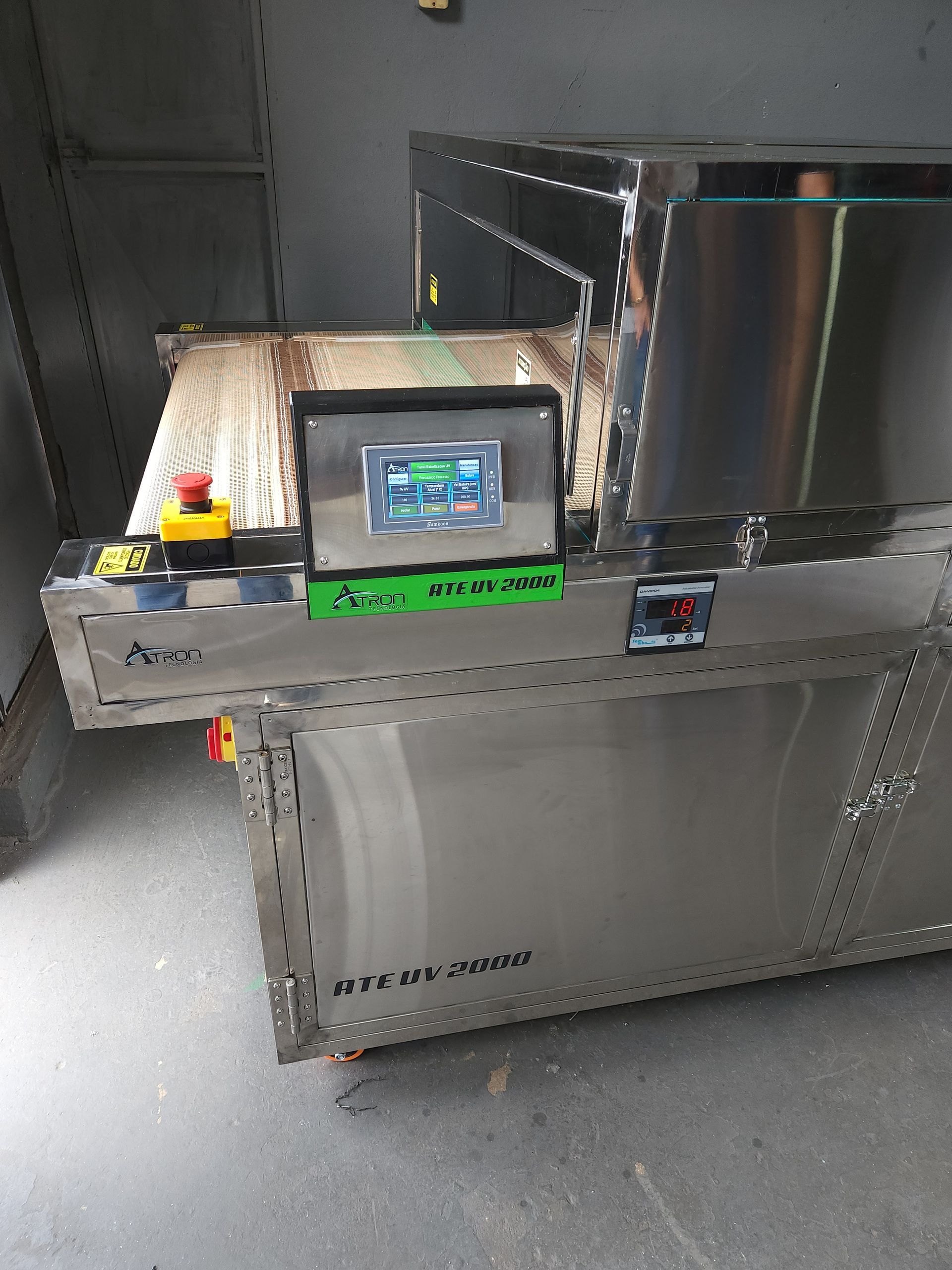

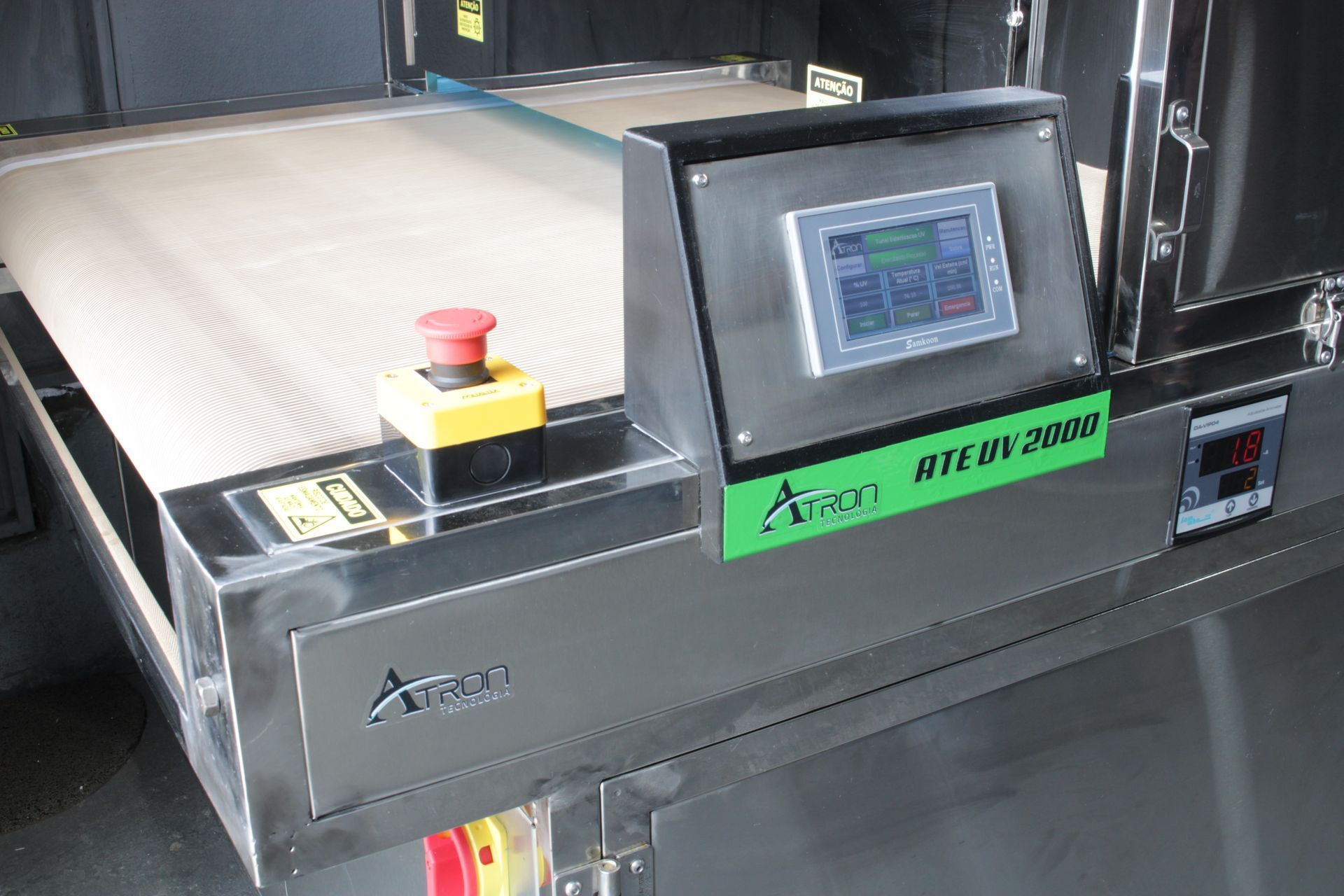

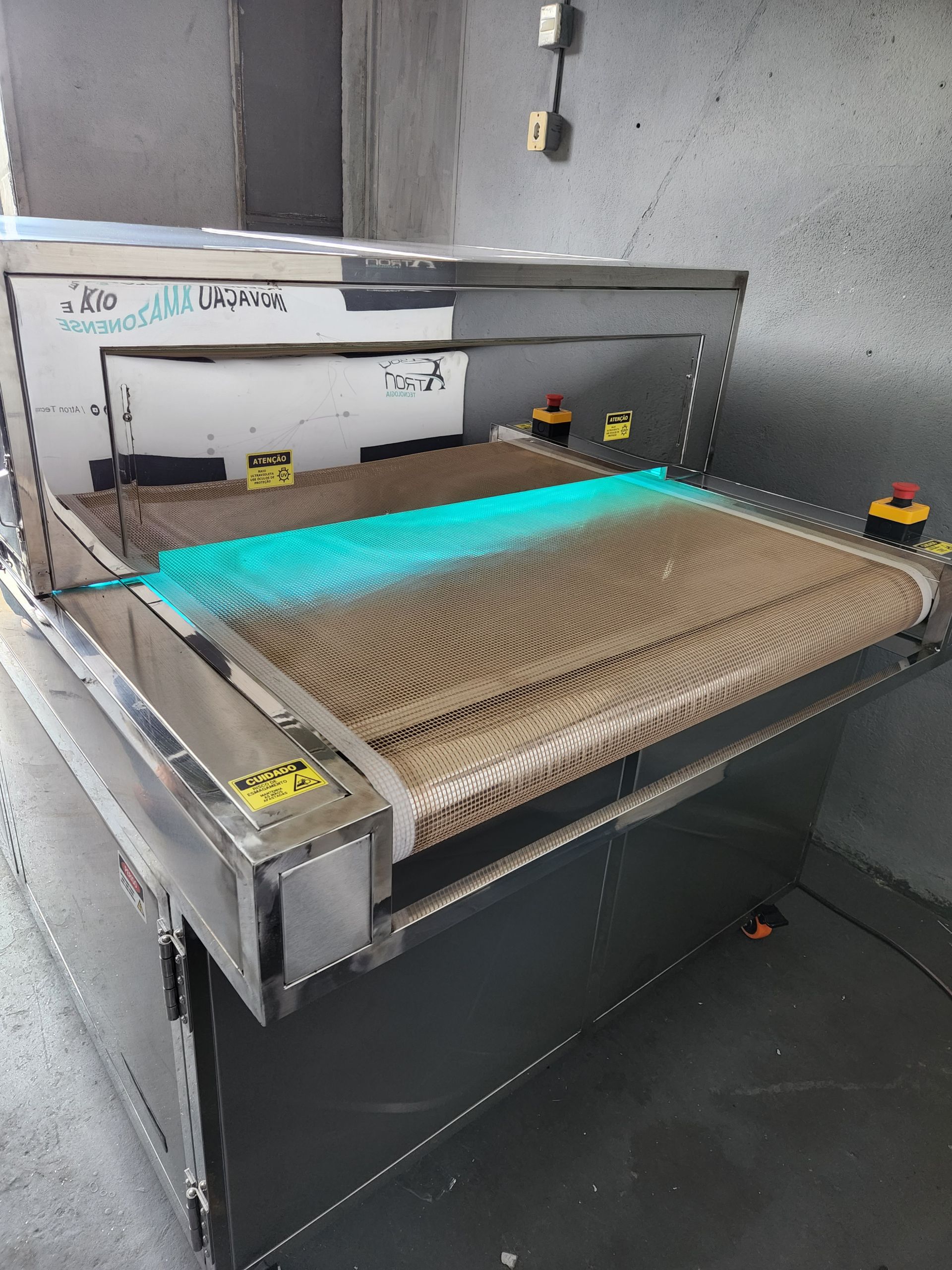

Model: ATE UV 2000 Control Mode: IHM4" with PLC Dimensions: 2000mm(W) X 1200mm(D) X 1600mm(H) Equipment Weight: 150kg Cabinet: 304 INOX Sheet Light Emitting Module Type: UV_C Light Source Lamp: UV-C Ultraviolet Fluorescent Lamp (Average lifespan: 6000h) Power: 20W Conveyor Belt: Teflon Blanket - 4x4 Mesh (mesh belt) Dimensions: 2000mmX1000mm Motor: 1/4hp Geared Motor 1:30 reduction Exhaust Type: Centrifugal Exhaust Fan 550W 220vac Outlet: 4" exhaust duct Electrical Voltage: 220V - 60Hz Current: 8.5A

A) Equipment: Full manufacturer's warranty for a period of 12 (twelve) months after the date of shipment. The customer is responsible for shipping and returning parts under warranty to the manufacturer. Defects caused by improper use are excluded from the warranty. Full parts supply warranty for 10 years. B) Labor: 12 (twelve) months after the date of shipment. Defects caused by improper use are excluded from the warranty. For equipment installed outside the city of Manaus, travel and accommodation expenses for ATRON's technical personnel, incurred during the installation of the equipment, courses and technical assistance calls will be the customer's responsibility. Service Limitations: Technical services within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 am to 5:00 pm. Services provided by request for a technical call outside business hours will be charged per actual working hour, regardless of the call condition. Coverage: All parts and components subject to natural wear and tear, or caused by failure or lack of preventive maintenance and conservation, or by operating errors, or by intervention by third parties not qualified or authorized by the manufacturer or supplier, are considered "out of warranty". The group of parts and components subject to wear and tear includes all units of movement, friction, constant drive and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed crowns, belts, pulleys, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are proven to be parts and components of movement and wear. For services applied within this defined group, the technical hours used in the repair or replacement will be charged separately according to the standard technical hour table in effect at the time. Installation: It will be carried out by an ATRON technician at no additional cost to the customer, however, for equipment installed outside the city of Manaus, travel, food and accommodation expenses will be the customer's responsibility.
