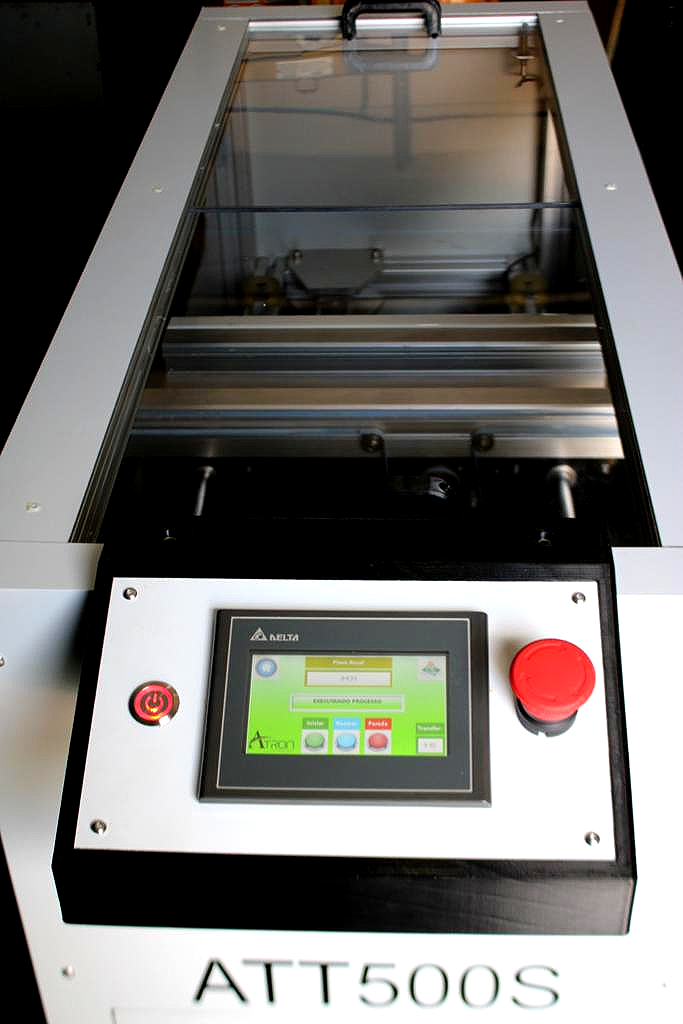

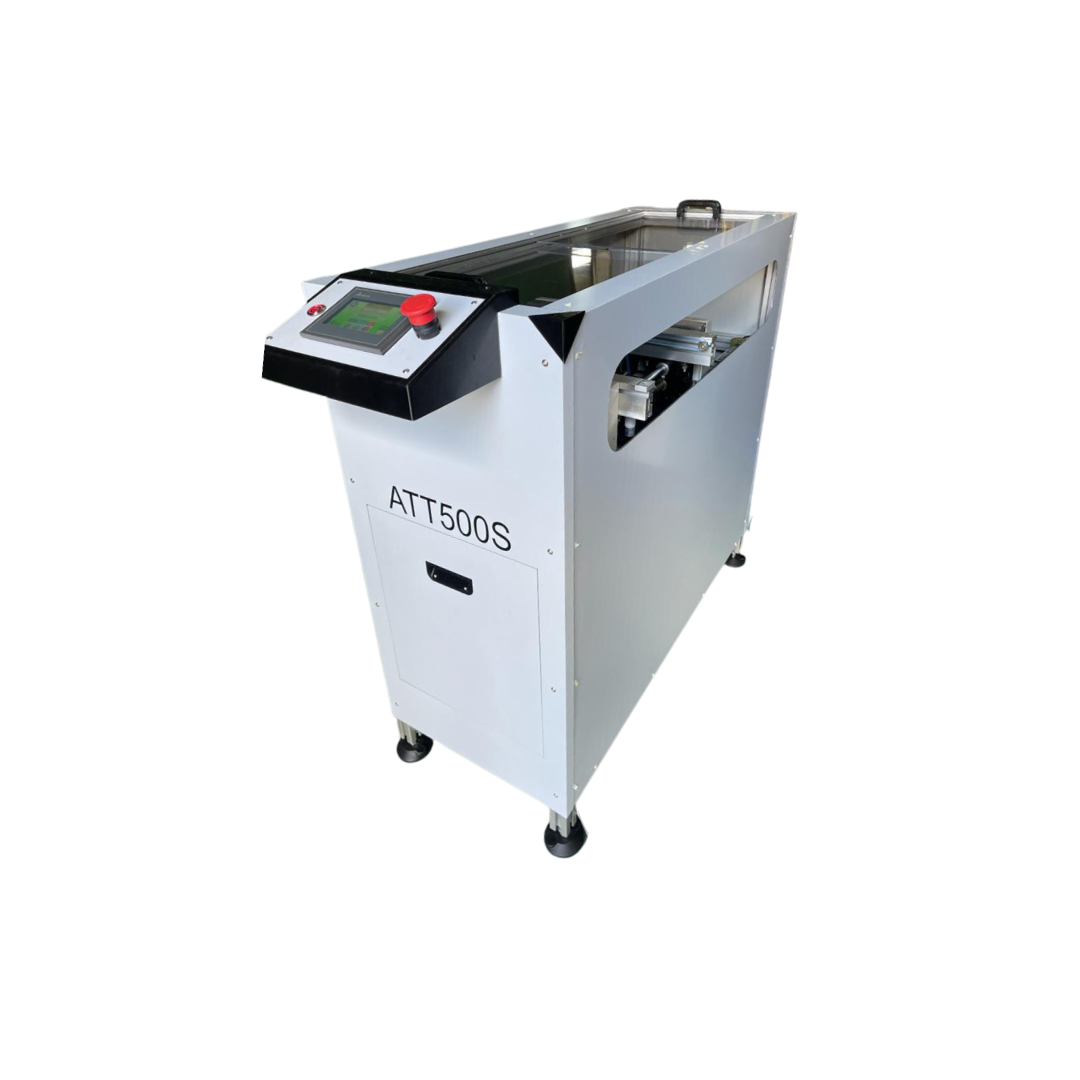

Conveyor System

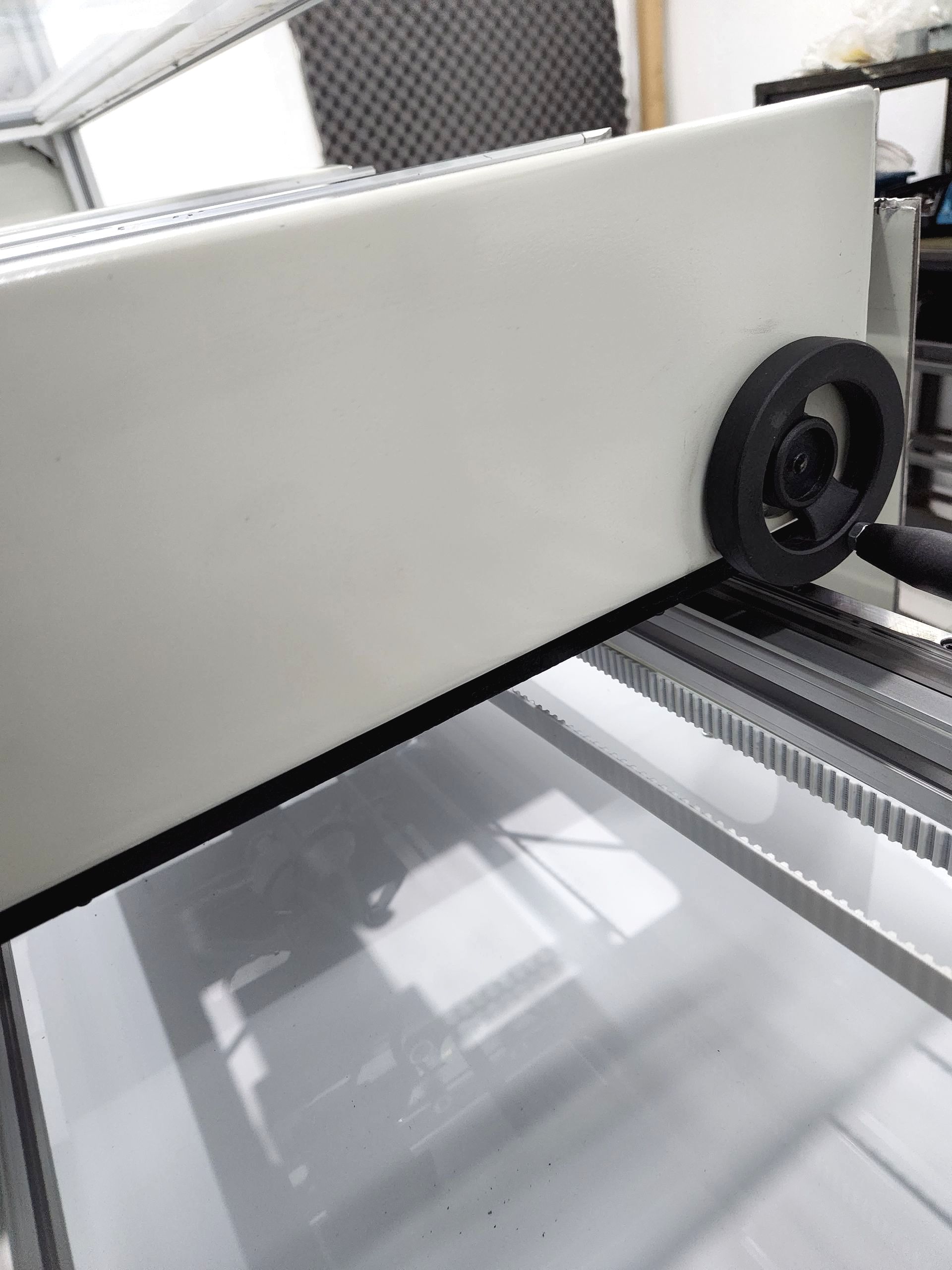

Conveyor width: 500 mm with manual opening adjustment

Linear guides: Linear bearings on 20 mm ground guides

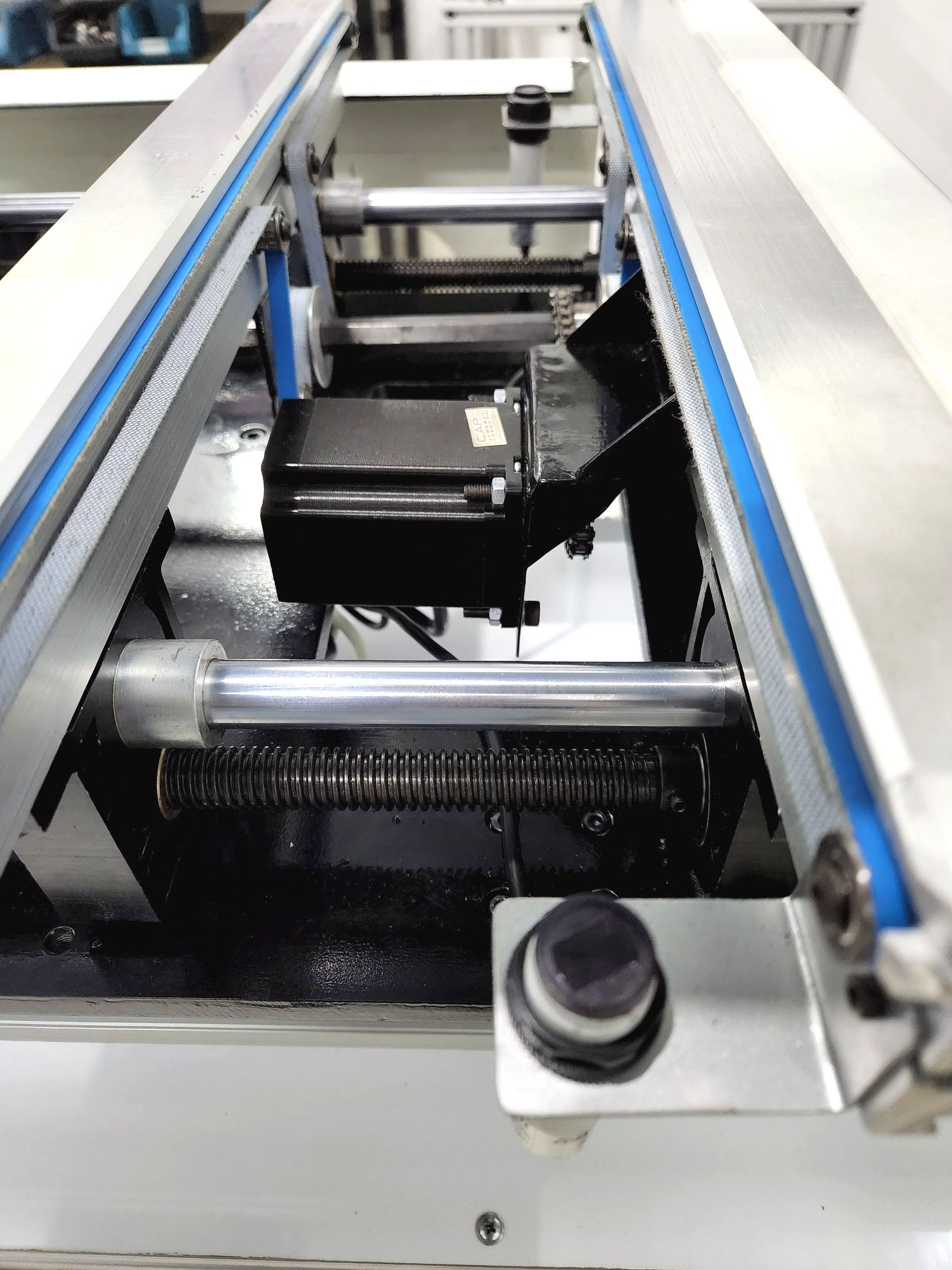

Adjustment spindle: 20 mm trapezoidal spindle with brass nut, fine pitch — ensures precise adjustment

Lanes: Guide rails for belts in ground aluminum profile

Belts: High-strength ESD, 10 mm (width) x 1 mm (thickness)

Pulleys: Stainless steel for greater durability

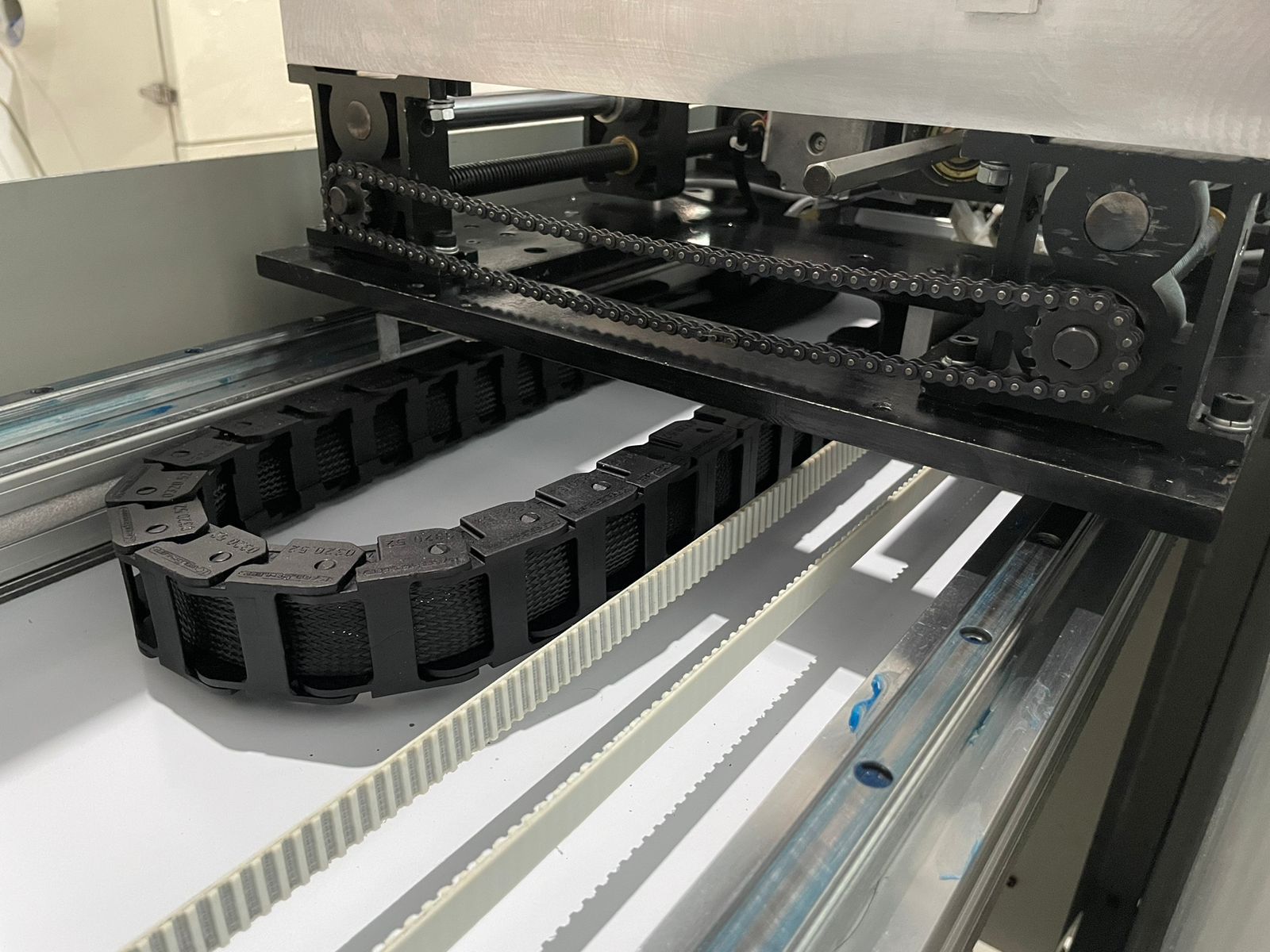

Traction: Chain system driven by Nema 24 stepper motor

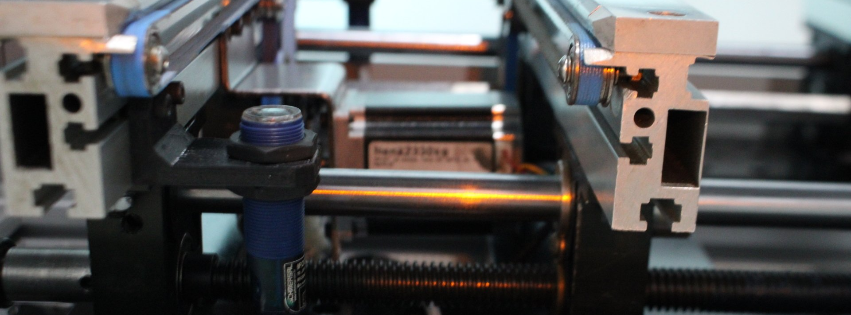

Precision optical sensors at the plate entry and exit — with adjustable position Transfer System

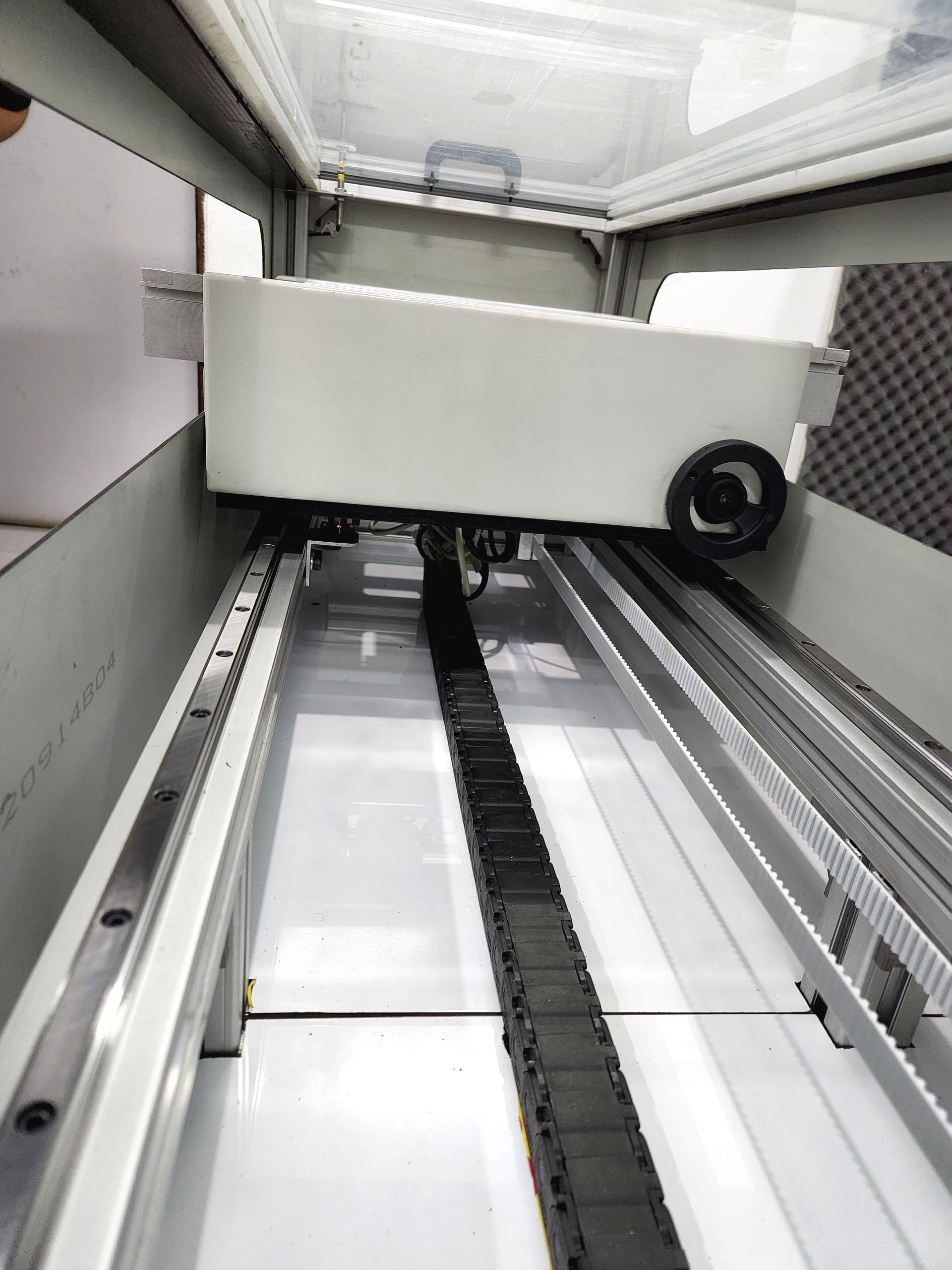

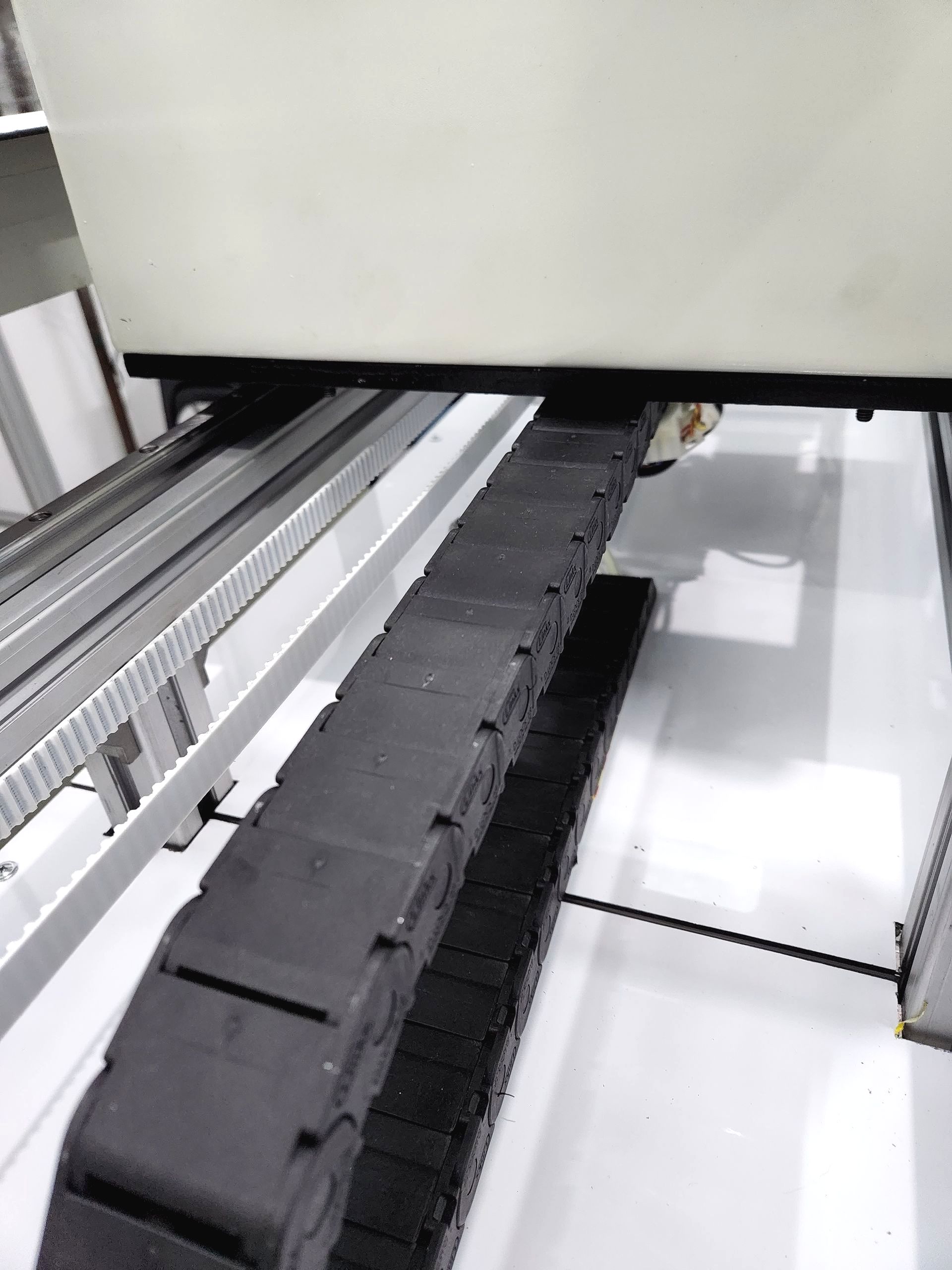

Guides: 20 mm linear rails with 4 sliding slides

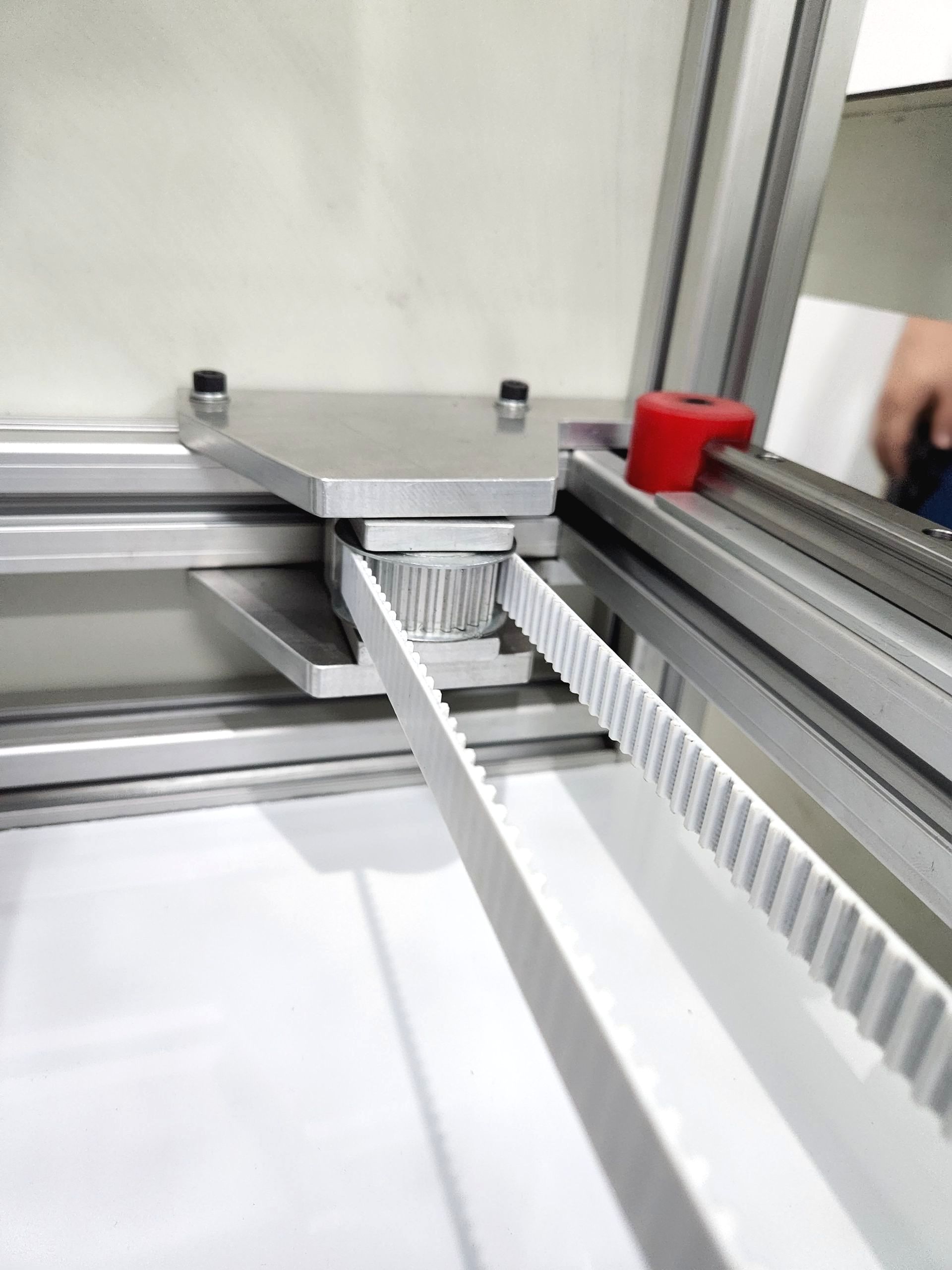

Belt: T5 model synchronous belt, 16 mm wide, with T5 pulleys and shielded bearings

Tensioning: Quick adjustment system, accessible through a hole in the housing with an 8mm Allen key mm

Traction motor: Nema 32 stepper motor with 80 kgf.cm torque

Limit switches: Flag type — to ensure precision and safety within movement limits Control Panel

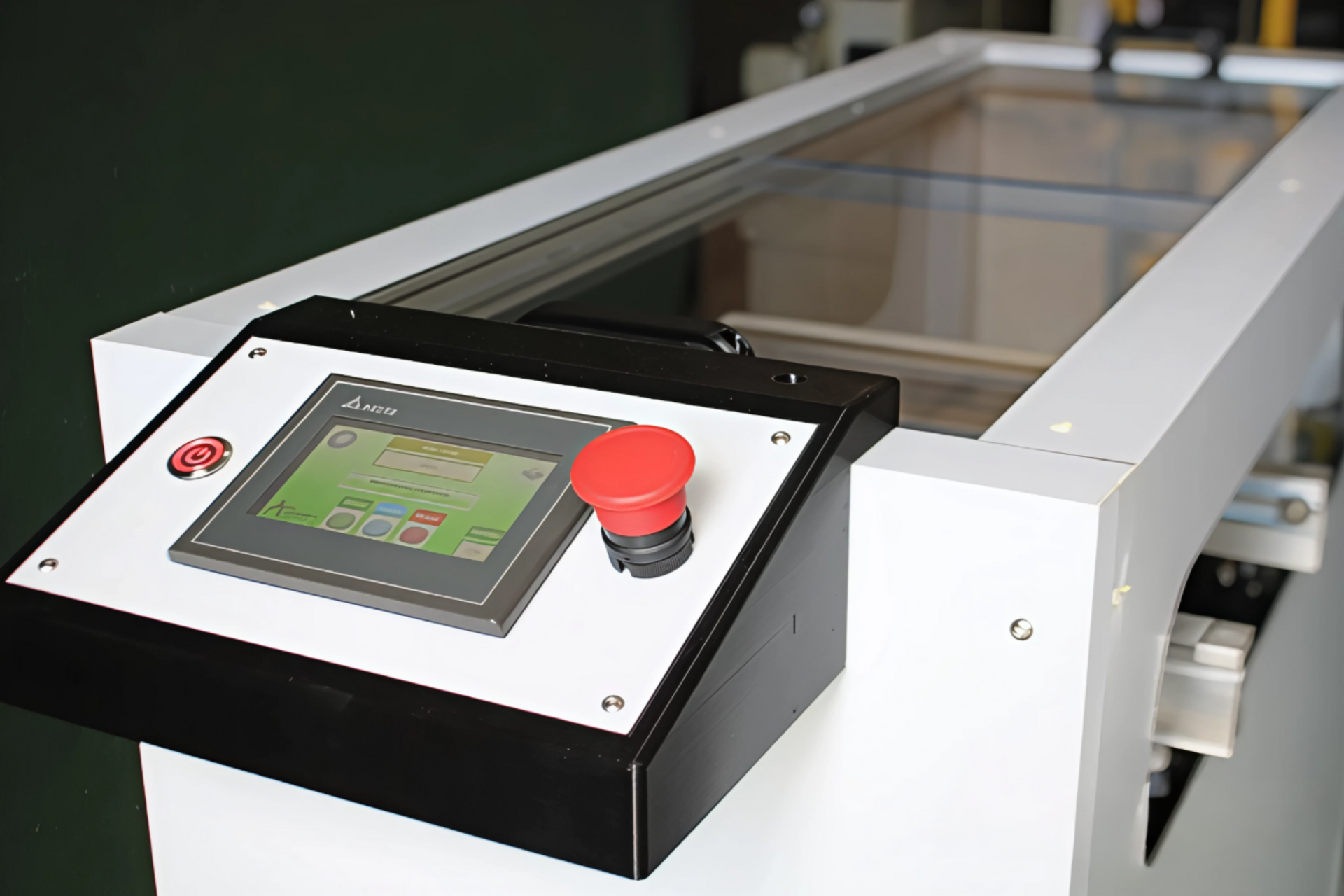

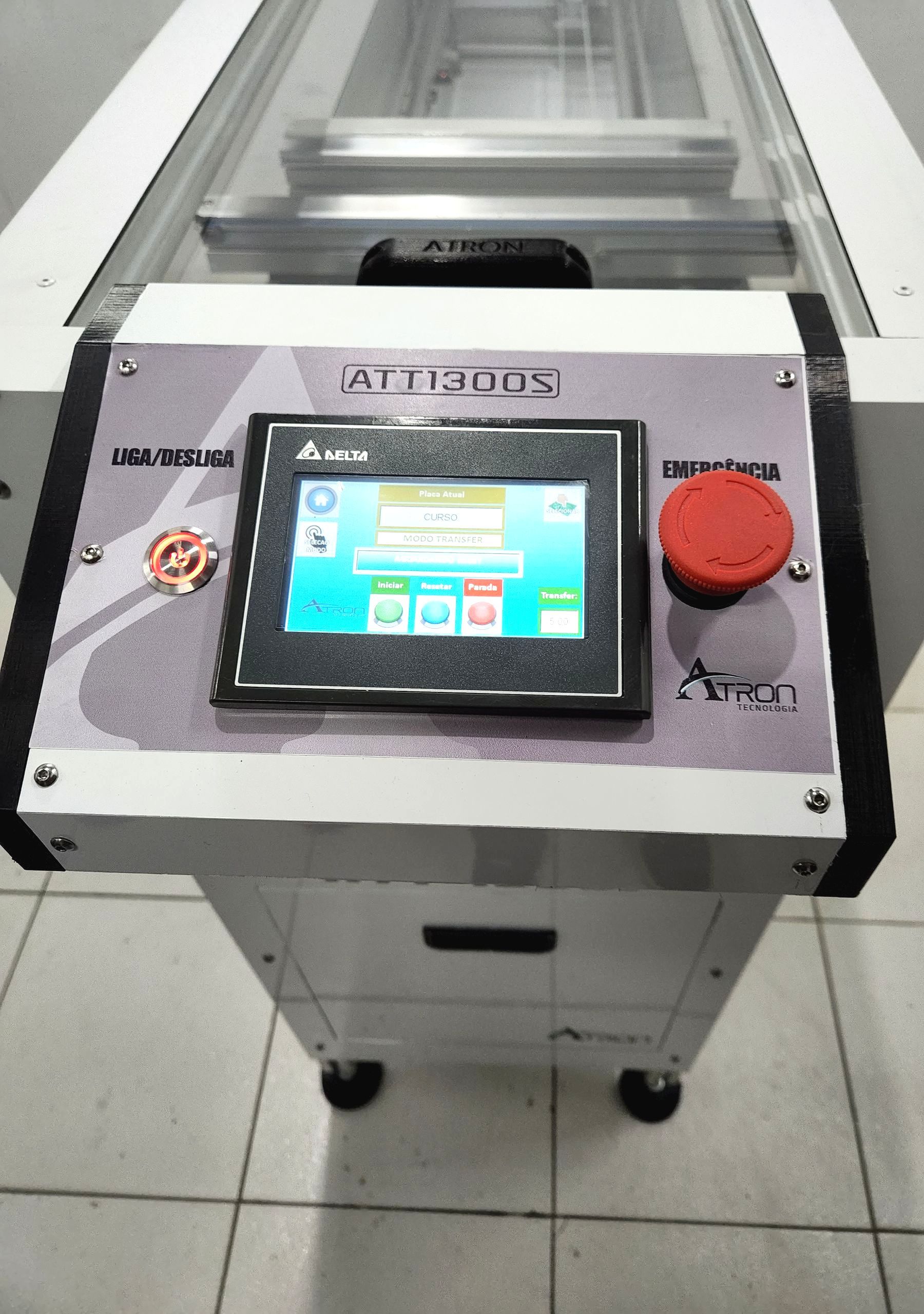

On/Off button: Backlit stainless steel

PLC: High-performance Delta

HMI: 4” high-resolution touchscreen

Drivers: For controlling stepper motors (conveyor and transfer)

Power supply: 24Vdc / 15A

Electrical protection: Two-phase circuit breaker

Communication: SMEMA interface relays (integration with automated SMT line) Protection System

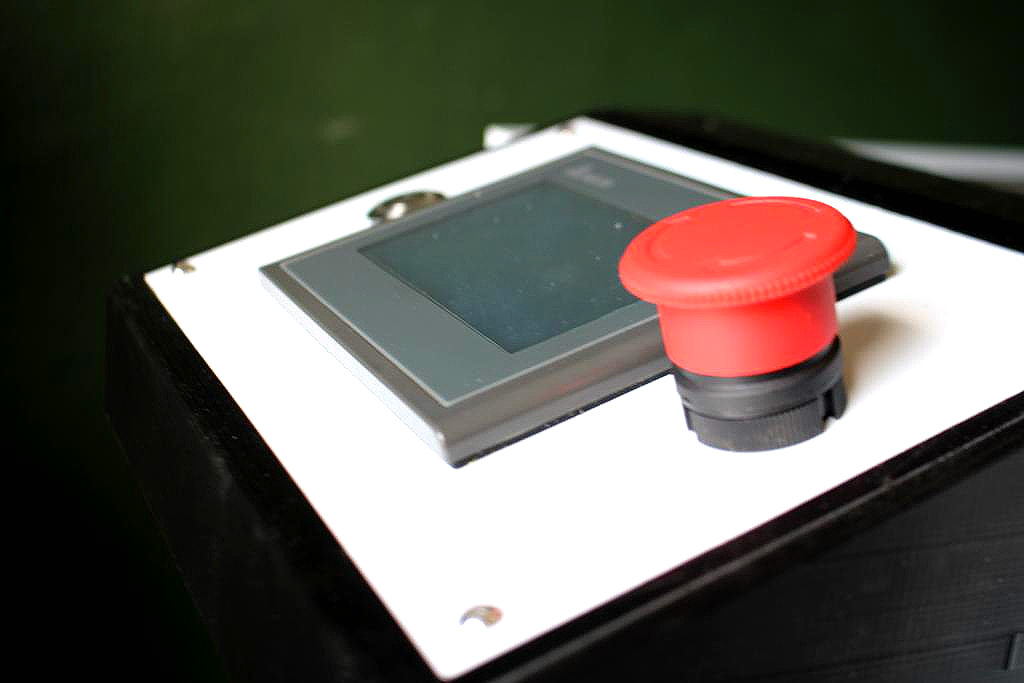

Mushroom-type emergency stop button on the panel

Inductive sensors on the polycarbonate covers – indicate when doors are open

Automatic STOP function: Upon detecting a safety violation, the system immediately interrupts operation and displays a notification on the HMI

RESET function: The operator must press the RESET button on the panel to safely restart and reposition the equipment

A) Equipment: Full manufacturer's warranty for a period of 12 (twelve) months after the shipping date. The shipping and return of parts under warranty to the manufacturer are the responsibility of the customer. Defects caused by improper use are excluded from the warranty. Full parts supply warranty for 10 years. B) Labor: 12 (twelve) months after the shipping date. Defects caused by improper use are excluded from the warranty. For equipment installed outside the municipality of Manaus, the travel and accommodation expenses of ATRON's technical personnel, incurred during equipment installation, training courses, and technical assistance calls, will be the responsibility of the customer. Service Limitations: Technical assistance within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 AM to 5:00 PM. Services performed at the request of a technical call outside business hours will be charged per hour of actual work, regardless of the call condition. Coverage: All parts and components subject to natural wear and tear, or wear caused by failure or lack of preventive maintenance and conservation, or by operational errors, or by intervention of third parties not qualified and not authorized by the manufacturer or supplier, are considered "out of warranty". Within the group of wear parts and components are all units of movement, friction, constant actuation and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed sprockets, belts, sheaves, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are demonstrably parts and components subject to movement and wear. For services applied within this defined group, the technical hours spent on repair or replacement will be charged separately according to the standard technical hour rate table in effect at the time. Installation: Installation will be performed by an ATRON technician at no additional cost to the customer; however, for equipment installed outside the municipality of Manaus, travel, food, and accommodation expenses will be the customer's responsibility.
