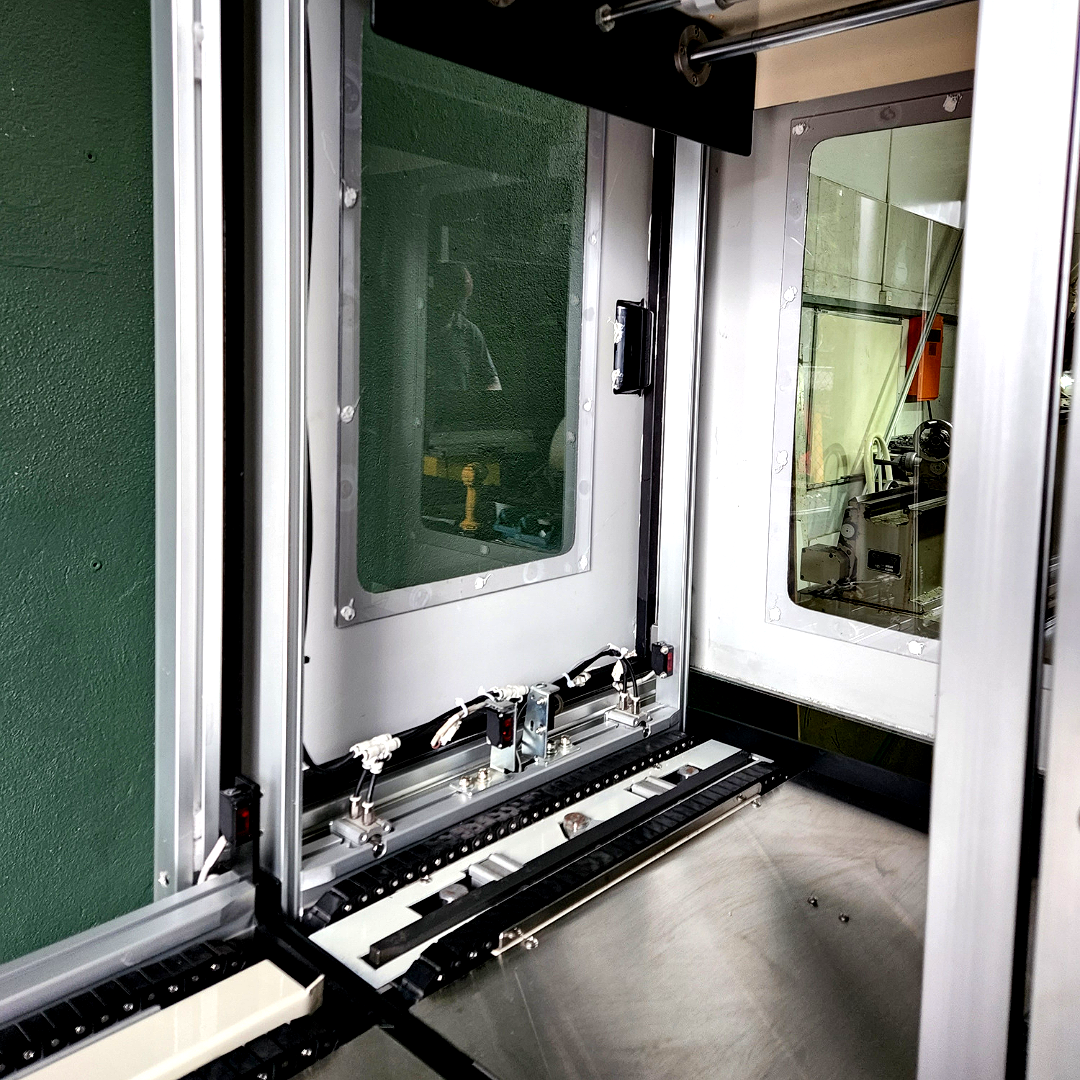

Standard Functionality

PLC control – programmable.

Distance between plates in the magazine is selectable/programmable.

Green/Red/Yellow signaling tower.

Automatic magazine change.

Flexible platform compatible with standard market magazines.

Pusher position is adjustable to always press in the center of the plate.

Adjustable pressure for the plate pusher.

Control functions via soft-touch membrane panel with LEDs.

Automatic magazine alignment by pneumatic system.

Solid structure to prevent unwanted displacement.

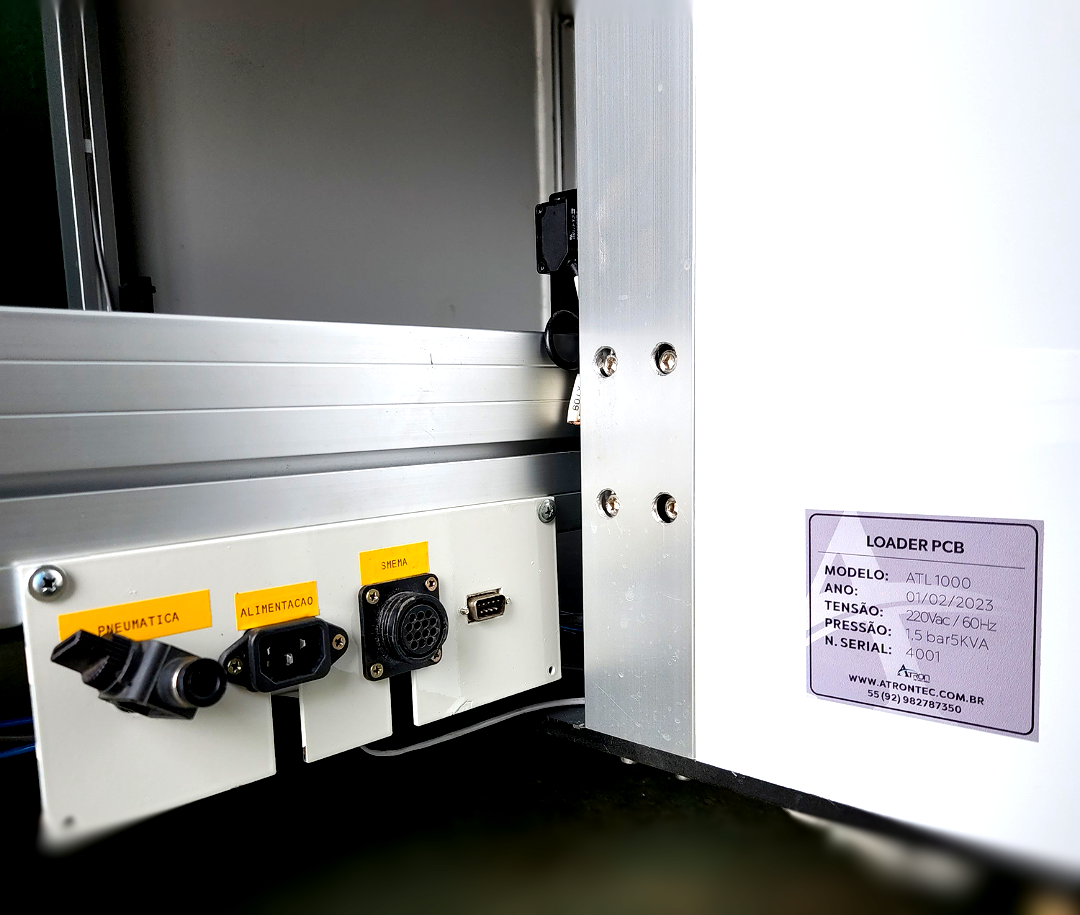

SMEMA compatible interface.

1 - Transport/Belt Height: 900 ±30 mm 2 - Transport Direction: Left to Right 3 - Operating Side: Front 4 - Fixed Rail: Front 5 - Interface: SMEMA 6 - Loading Time: ±6 seconds 7 - Magazine Change Time: ±30 seconds 8 - Pitch/Plate Distance: 10, 20, 30, 40 mm (others) 9 - Number of Magazines:

1 magazine in the elevator

1 magazine in the upper conveyor

2 full plate magazines in the lower conveyor. 10 - AC Power: 220 VAC / 60Hz / Single Phase 11 - Power: 350W 12 - Compressed Air: 6 bar 13 - Compressed Air Consumption: Maximum 10 liters/minute

A) Equipment: Full manufacturer's warranty for a period of 12 (twelve) months after the shipping date. The shipping and return of parts under warranty to the manufacturer are the responsibility of the customer. Defects caused by improper use are excluded from the warranty. Full parts supply warranty for 10 years. B) Labor: 12 (twelve) months after the shipping date. Defects caused by improper use are excluded from the warranty. For equipment installed outside the municipality of Manaus, the travel and accommodation expenses of ATROM's technical personnel, incurred during equipment installation, training courses, and technical assistance calls, will be the responsibility of the customer. Service Limitations: Technical assistance within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 AM to 5:00 PM. Services performed at the request of a technical call outside business hours will be charged per hour of actual work, regardless of the call condition. Coverage: All parts and components subject to natural wear and tear, or wear caused by failure or lack of preventive maintenance and conservation, or by operational errors, or by intervention of third parties not qualified and not authorized by the manufacturer or supplier, are considered "out of warranty". Within the group of wear parts and components are all units of movement, friction, constant actuation and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed sprockets, belts, sheaves, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are demonstrably parts and components subject to movement and wear. For services applied within this defined group, the technical hours spent on repair or replacement will be charged separately according to the standard technical hour rate table in effect at the time. Installation: Installation will be performed by an ATRON technician at no additional cost to the customer; however, for equipment installed outside the municipality of Manaus, travel, food, and accommodation expenses will be the customer's responsibility.
