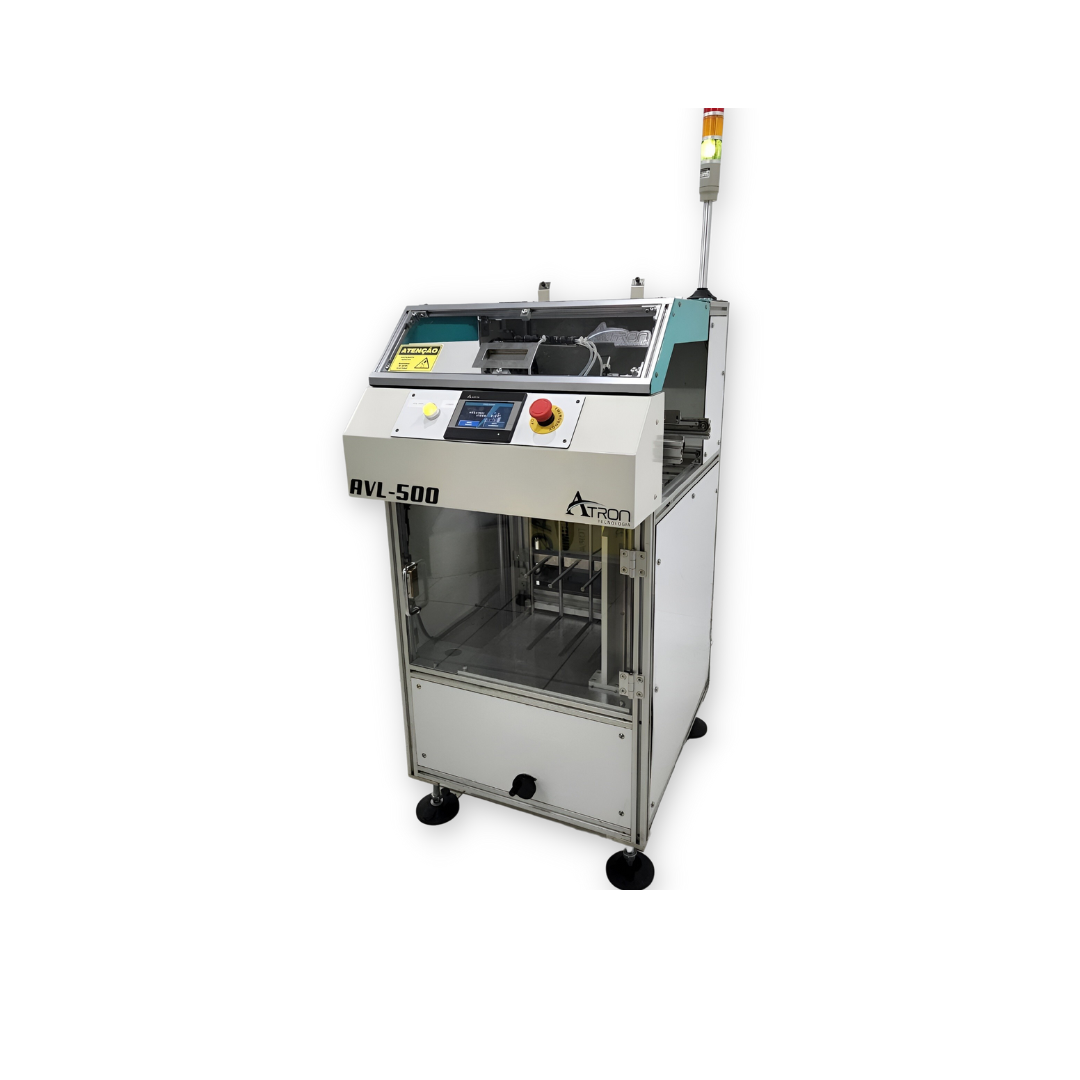

Standard Functionality

PLC control – programmable.

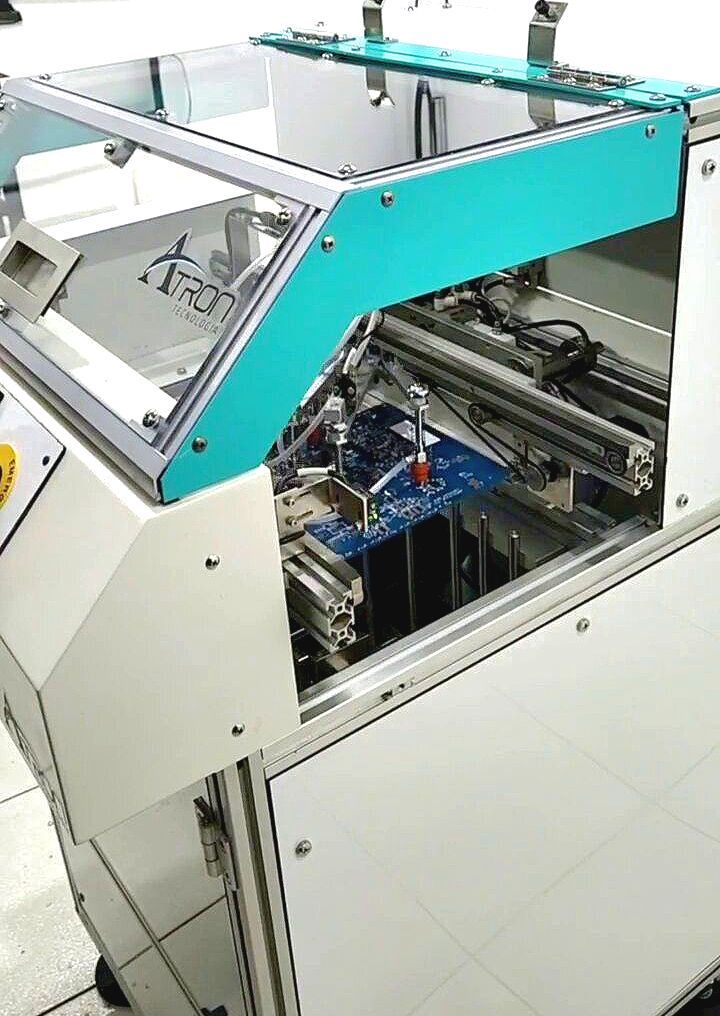

Higher number of stackable plates than with magazines.

Sensor indicating an empty plate stack.

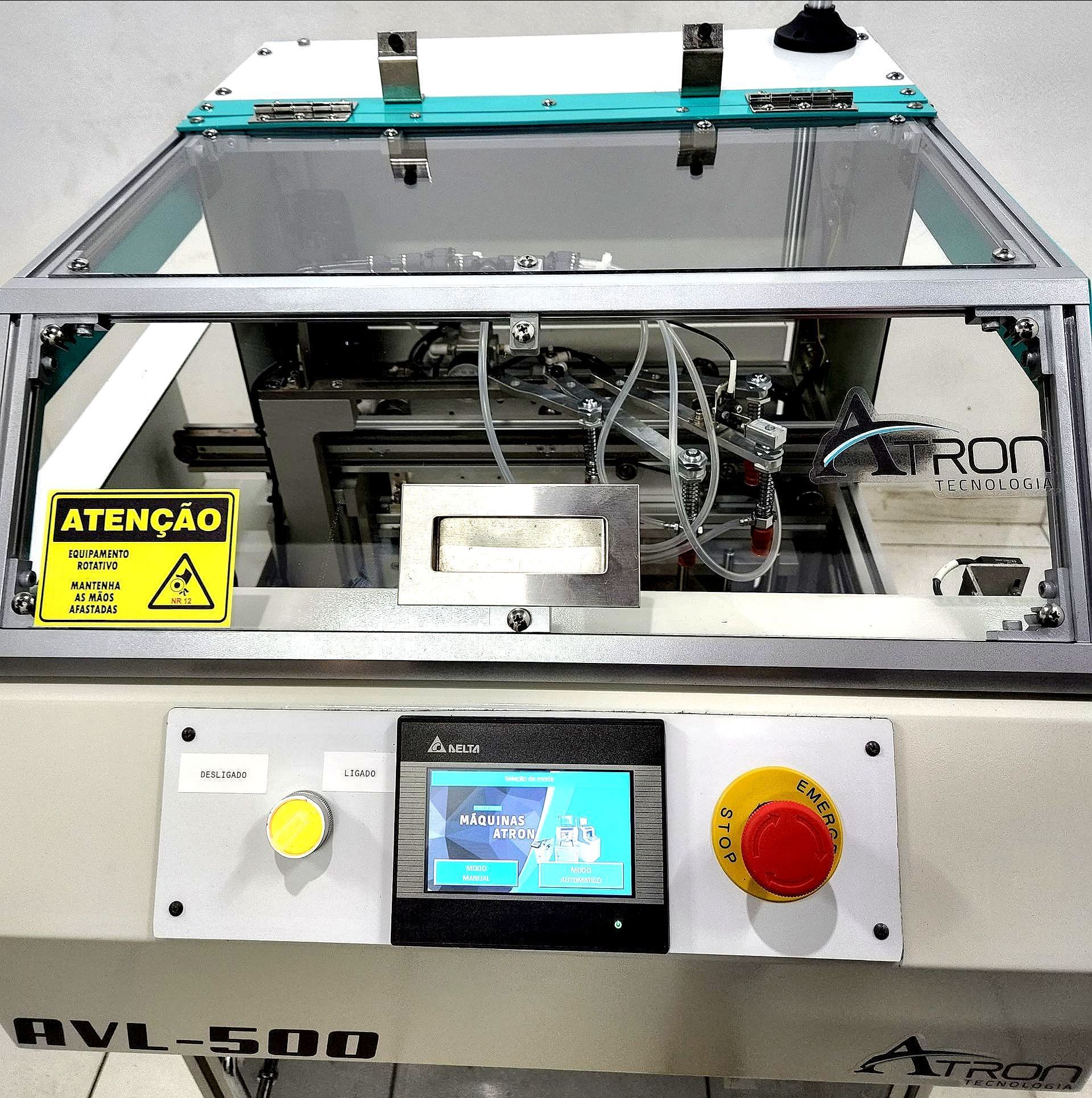

Flexible positioning of suction pipettes.

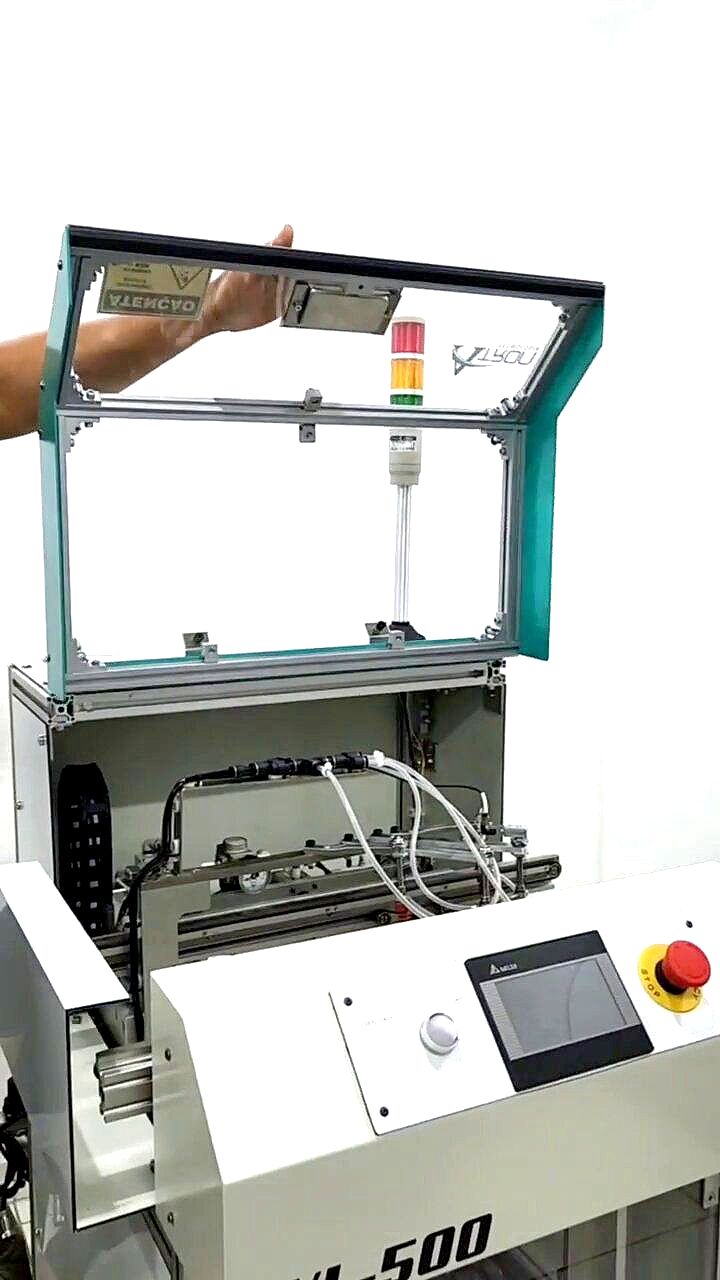

Convenient front plate loading door.

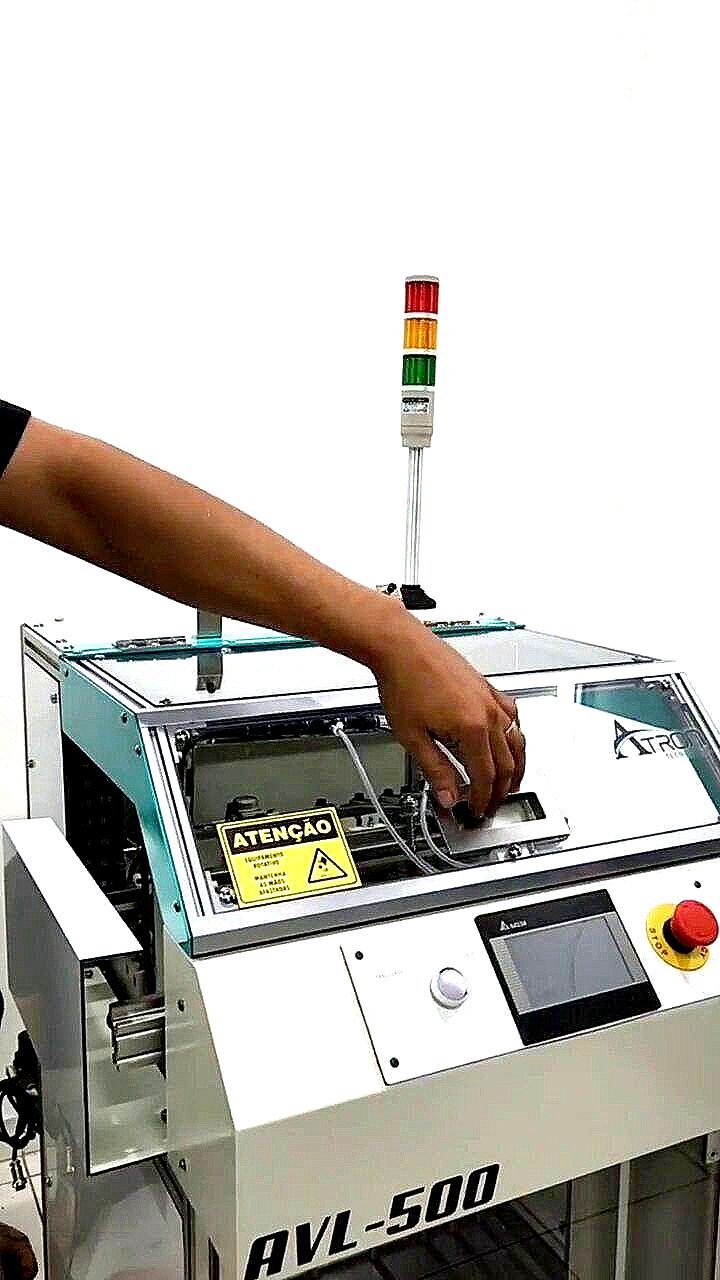

Green/Red/Yellow signaling tower.

Width adjustment via endless screws, ensuring precision and parallelism of conveyors.

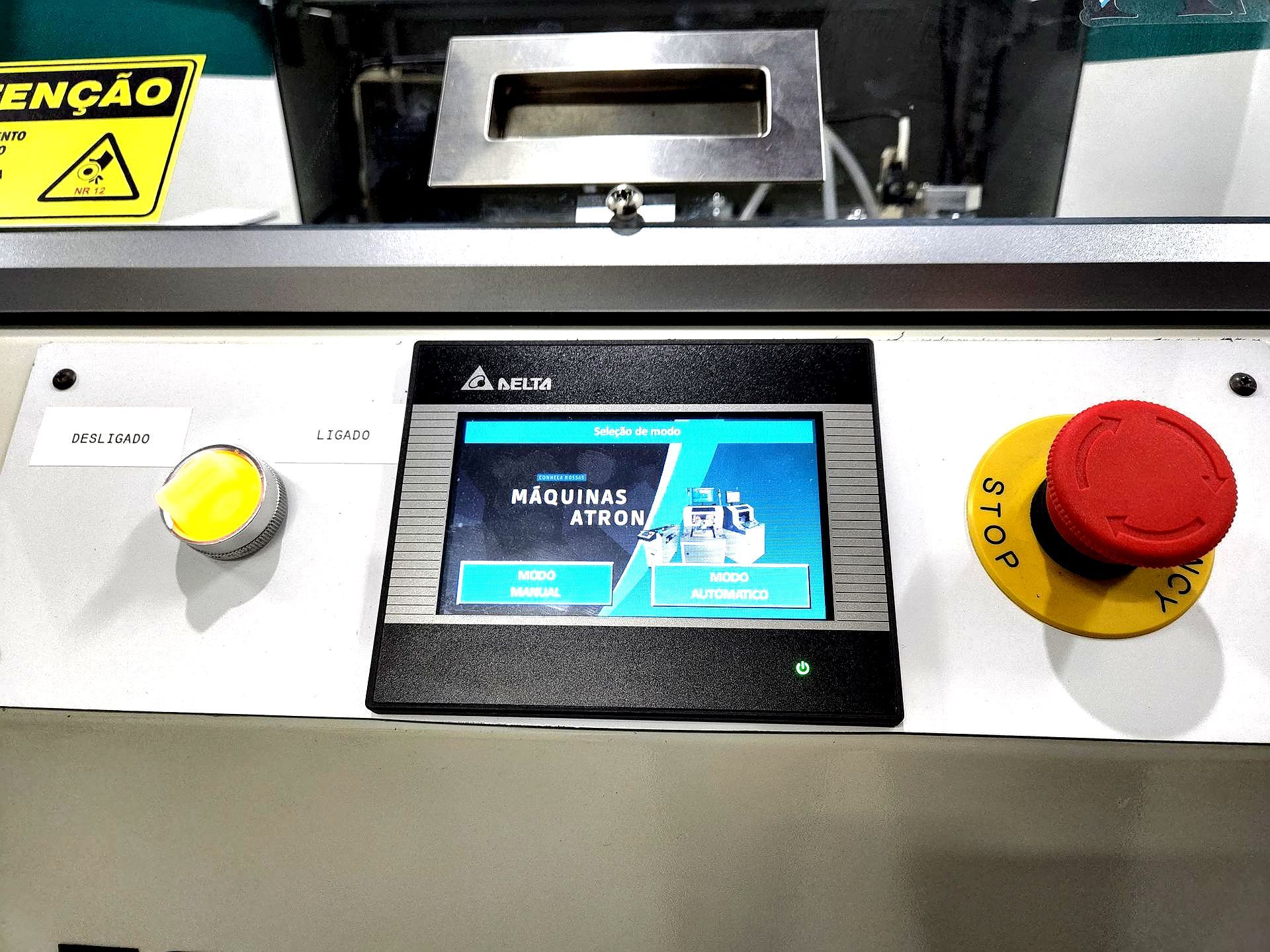

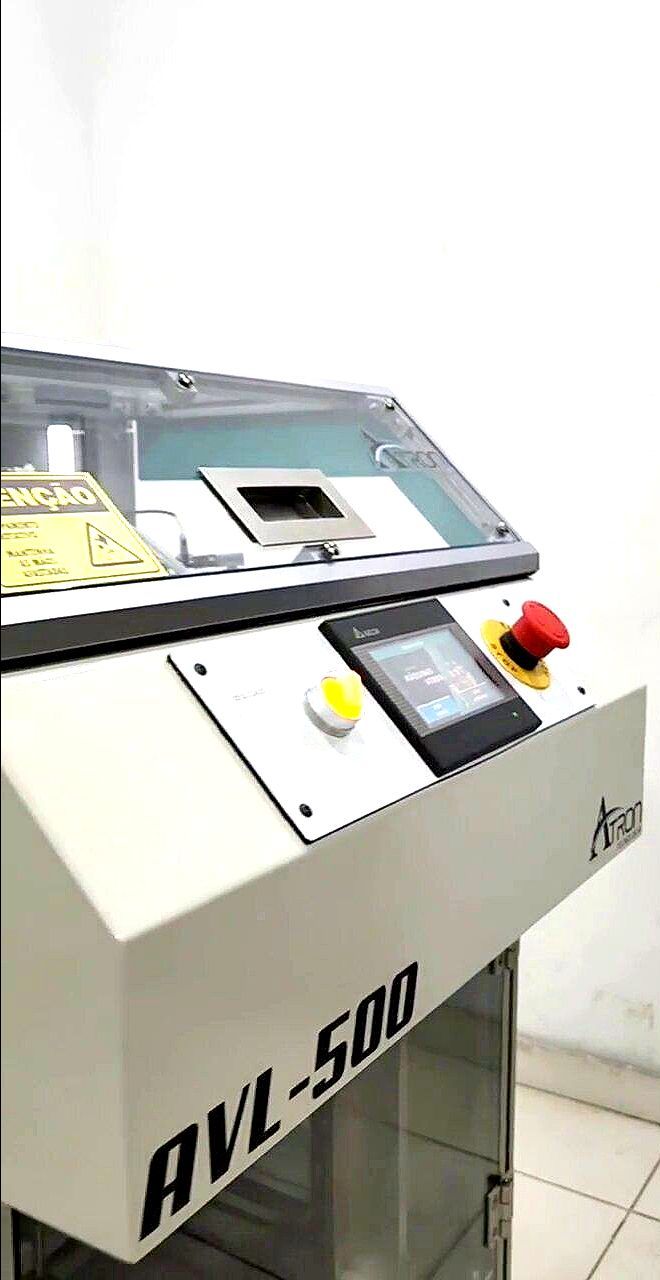

Control functions via soft-touch membrane panel with LEDs.

By-pass (or pass-through) function that allows the equipment to be placed in series with a previous piece of equipment, allowing the plate to pass through without removing it from the plate stack.

Solid structure to prevent unwanted displacement.

SMEMA compatible interface.

1 - Transport/belt height: 900 ±30 mm 2 - Transport direction: Left to right 3 - Operating side: Front 4 - Fixed rail: Front 5 - Interface: SMEMA 6 - Belt: ESD (flat or circular) 7 - Belt speed: 0.5 to 20 m/min 8 - Plate edge: 3 mm 9 - AC power supply: 220 VAC / 60Hz / Single phase 10 - Power: 150W 11 - Compressed air: 6 bar 12 - Compressed air consumption: Maximum 10 liters/minute 13 - Vacuum pipette diameter: 15 mm (or specify) 14 - Plate thickness: 0.6 to 4 mm 15 - Plate stack capacity: 240 mm / PCB thickness (or specify)

A) Equipment: Full manufacturer's warranty for a period of 12 (twelve) months after the shipping date. The shipping and return of parts under warranty to the manufacturer are the responsibility of the customer. Defects caused by improper use are excluded from the warranty. Full parts supply warranty for 10 years. B) Labor: 12 (twelve) months after the shipping date. Defects caused by improper use are excluded from the warranty. For equipment installed outside the municipality of Manaus, the travel and accommodation expenses of ATROM's technical personnel, incurred during equipment installation, training courses, and technical assistance calls, will be the responsibility of the customer. Service Limitations: Technical assistance within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 AM to 5:00 PM. Services performed at the request of a technical call outside business hours will be charged per hour of actual work, regardless of the call condition. Coverage: All parts and components subject to natural wear and tear, or wear caused by failure or lack of preventive maintenance and conservation, or by operational errors, or by intervention of third parties not qualified and not authorized by the manufacturer or supplier, are considered "out of warranty". Within the group of wear parts and components are all units of movement, friction, constant actuation and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed sprockets, belts, sheaves, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are demonstrably parts and components subject to movement and wear. For services applied within this defined group, the technical hours spent on repair or replacement will be charged separately according to the standard technical hour rate table in effect at the time. Installation: Installation will be performed by an ATRON technician at no additional cost to the customer; however, for equipment installed outside the municipality of Manaus, travel, food, and accommodation expenses will be the customer's responsibility.
