ATTC2000   | Transfer Shuttle Conveyor

High performance for SMT lines with up to 40 programmable board models.


Shuttle Conveyor ATTC2000 transferring PCB boards between SMT equipment, with an intuitive interface and structure for medium and high-volume production lines.

SHUTTLE CONVEYOR

  • The ATTC2000 is an automatic conveyor designed to transfer PCB boards between SMT equipment, even with alignment differences between conveyors. With an intuitive and easy-to-configure interface, it offers an optimized layout in the national language and memory for up to 40 board models, ideal for medium and high production environments. It is the ideal solution to increase efficiency and standardization in SMT lines. Specifications:
  • Model: ATTC2000
  • Dimensions: 2000mm x 600mm x 1200mm
  • Voltage: 220V / 60Hz
  • Weight: 75 kg (approx.)
  • Stroke: 1400 mm
  • Max. PCB Width: 400 mm
  • Interface: HMI with PLC
  • Communication: SMEMA ________________________________________ Applications and Indications:
  • Ideal for medium and high SMT production;
  • Compatible with different conveyors;
  • Optimizes space and flow in automated lines;
  • High performance and operational safety;
  • National production with support and warranty
  • Technical description

  • Structure
  • 40x40 aluminum profile;
  • ACM and galvanized steel casing;

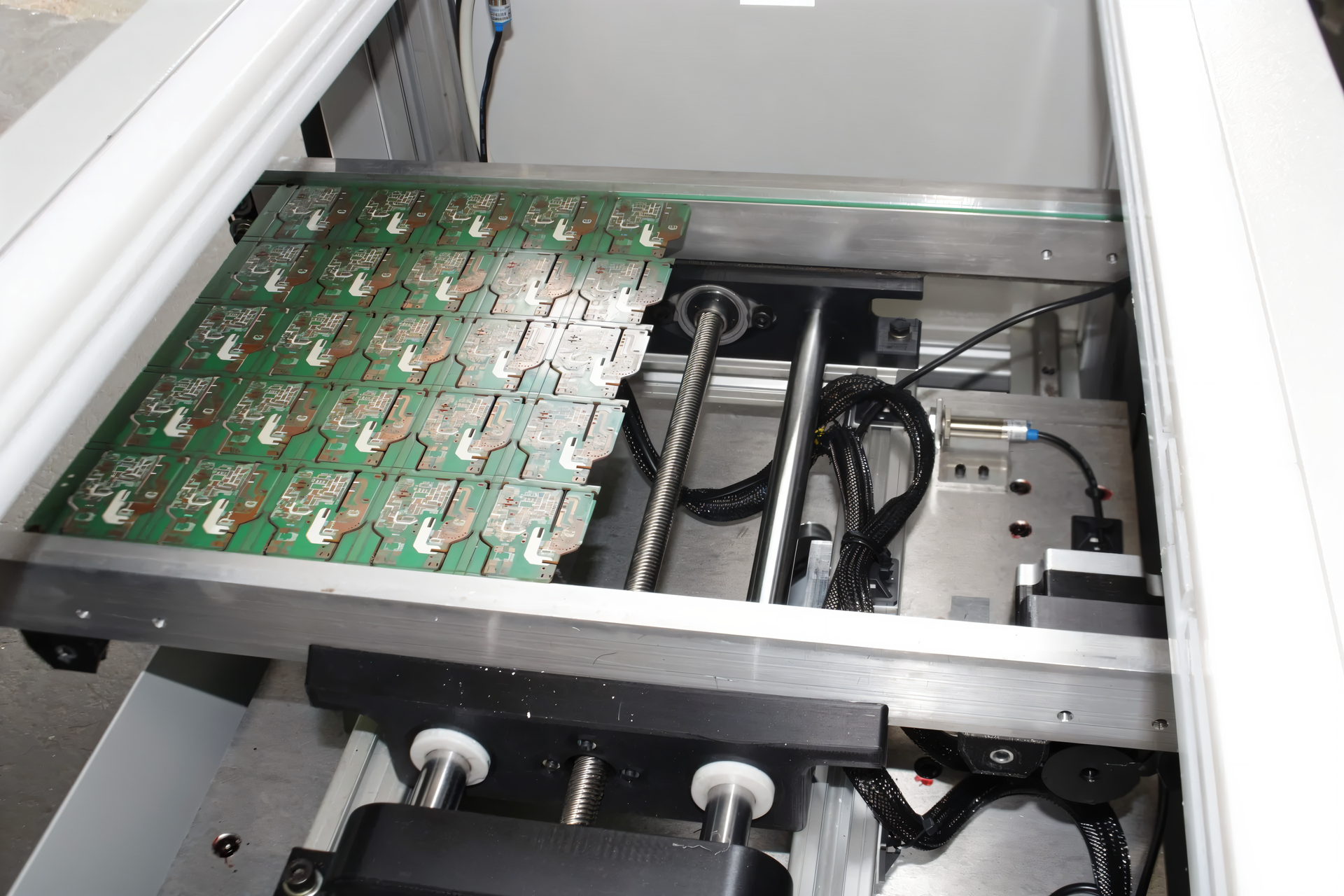

  • ESD acrylic cover with handles; Transport System
  • 6mm timing belt;
  • NEMA 17 stepper motors;
  • 3 programmable positions via HMI; Safety
  • Closed door sensor;
  • Emergency button;

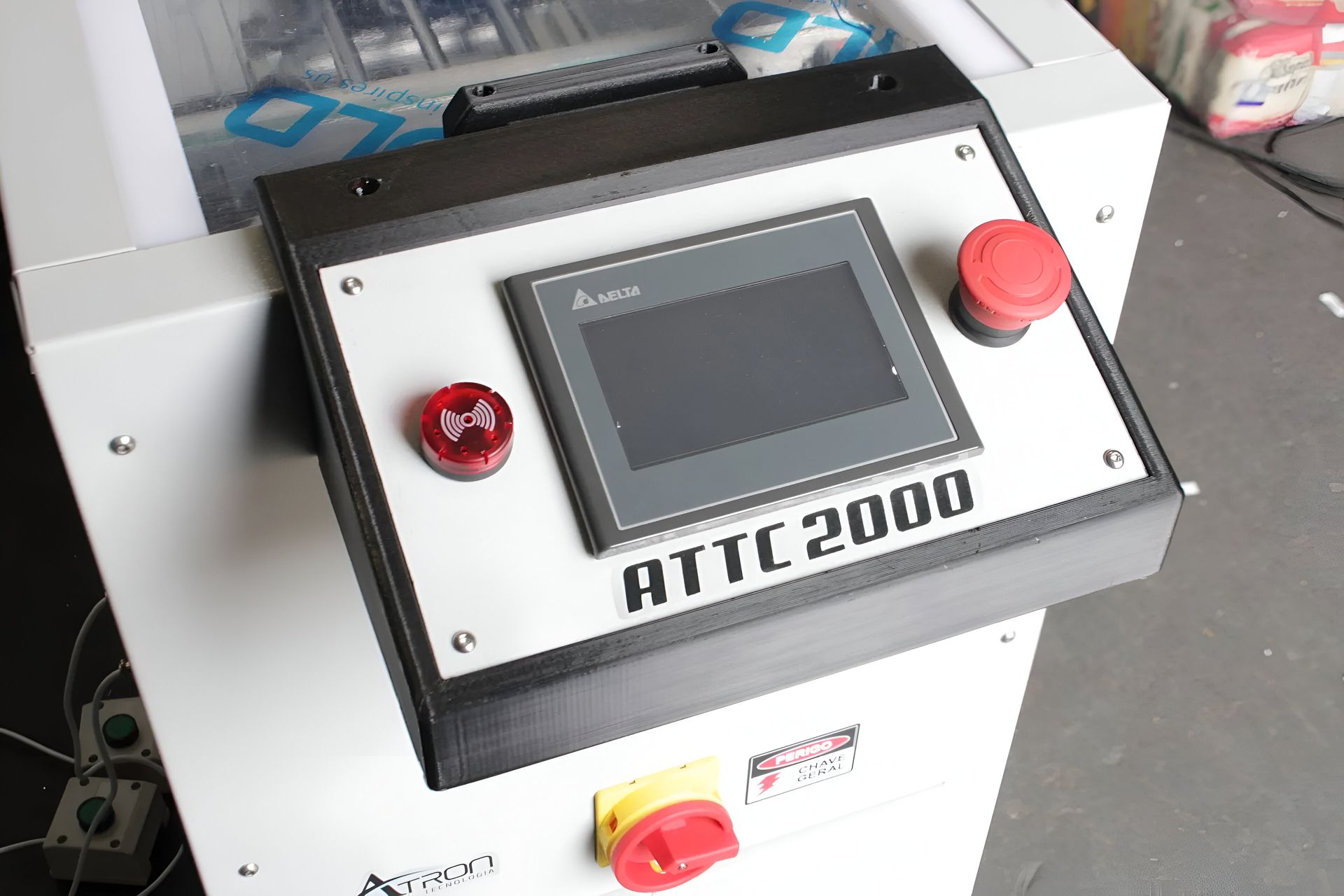

  • Cover with transparent viewing window; Interface and Control
  • HMI inclined at 45°;
  • Storage for up to 40 board models;
  • Simple to configure;
  • Guarantee

    A) Equipment: Full manufacturer's warranty for a period of 12 (twelve) months after the shipping date. The shipping and return of parts under warranty to the manufacturer are the responsibility of the customer. Defects caused by improper use are excluded from the warranty. Full parts supply warranty for 10 years. B) Labor: 12 (twelve) months after the shipping date. Defects caused by improper use are excluded from the warranty. For equipment installed outside the municipality of Manaus, the travel and accommodation expenses of ATRON's technical personnel, incurred during equipment installation, training courses, and technical assistance calls, will be the responsibility of the customer. Service Limitations: Technical assistance within the service warranty period will be free of charge during business hours - MON - FRI from 8:00 AM to 5:00 PM. Services performed at the request of a technical call outside business hours will be charged per hour of actual work, regardless of the call condition. Coverage: All parts and components subject to natural wear and tear, or wear caused by failure or lack of preventive maintenance and conservation, or by operational errors, or by intervention of third parties not qualified and not authorized by the manufacturer or supplier, are considered "out of warranty". Within the group of wear parts and components are all units of movement, friction, constant actuation and under the direct influence of an external supply source, such as compressed air, vacuum and water. The most common are: chains, guides, pulleys, toothed sprockets, belts, sheaves, bearings, bushings, air filters, filters in general, lenses, nozzles, limit switches, ejector valves, solenoid valves, pneumatic pistons, among other parts that are demonstrably parts and components subject to movement and wear. For services applied within this defined group, the technical hours spent on repair or replacement will be charged separately according to the standard technical hour rate table in effect at the time. Installation: Installation will be performed by an ATRON technician at no additional cost to the customer; however, for equipment installed outside the municipality of Manaus, travel, food, and accommodation expenses will be the customer's responsibility.
